13-48
IM 701210-06E
Setting Details
• Setting the Scale Value (Only When Displaying the X-Y Waveform)
17. Use the jog shuttle and SELECT to set Scale to OFF or ON.
• Setting Whether to Print the Time (Only When Displaying the T-Y Waveform)
18. Use the jog shuttle and SELECT to set Time to OFF, 200mm, 400mm, or
800mm.
• Setting Whether to Print the Gauge (Only When Displaying the T-Y Waveform)
19. Use the jog shuttle and SELECT to set Gauge to OFF or ON.
• Setting the Annotation (Only When Displaying the T-Y Waveform)
20. Use the jog shuttle and SELECT to set the print interval of annotations in the
right column of Annotation to OFF, 200mm, 400mm, or 800mm.
21. Use the jog shuttle and SELECT to set the type of annotation to be printed in
the right column of Type to CH Information, CH Message, or CH Data.
If CH Message is selected, proceed to step 22.
If CH Information or CH Data is selected, proceed to step 23.
22. Use the jog shuttle and SELECT to select Setup. Then, enter the message
you wish to print for the channel using up to 80 characters according to the
procedure in section 4.2.
• Setting Comments
23. Use the jog shuttle and SELECT to select Comment. Then, enter the comment
text you wish to print using up to 20 characters according to the procedure in
section 4.2.
Note
• The comment setting is linked with the PRINT menu > Comment setting.
• When creating a PDF file of the print image while displaying T-Y waveforms, Scale and Ch
Label settings are void.

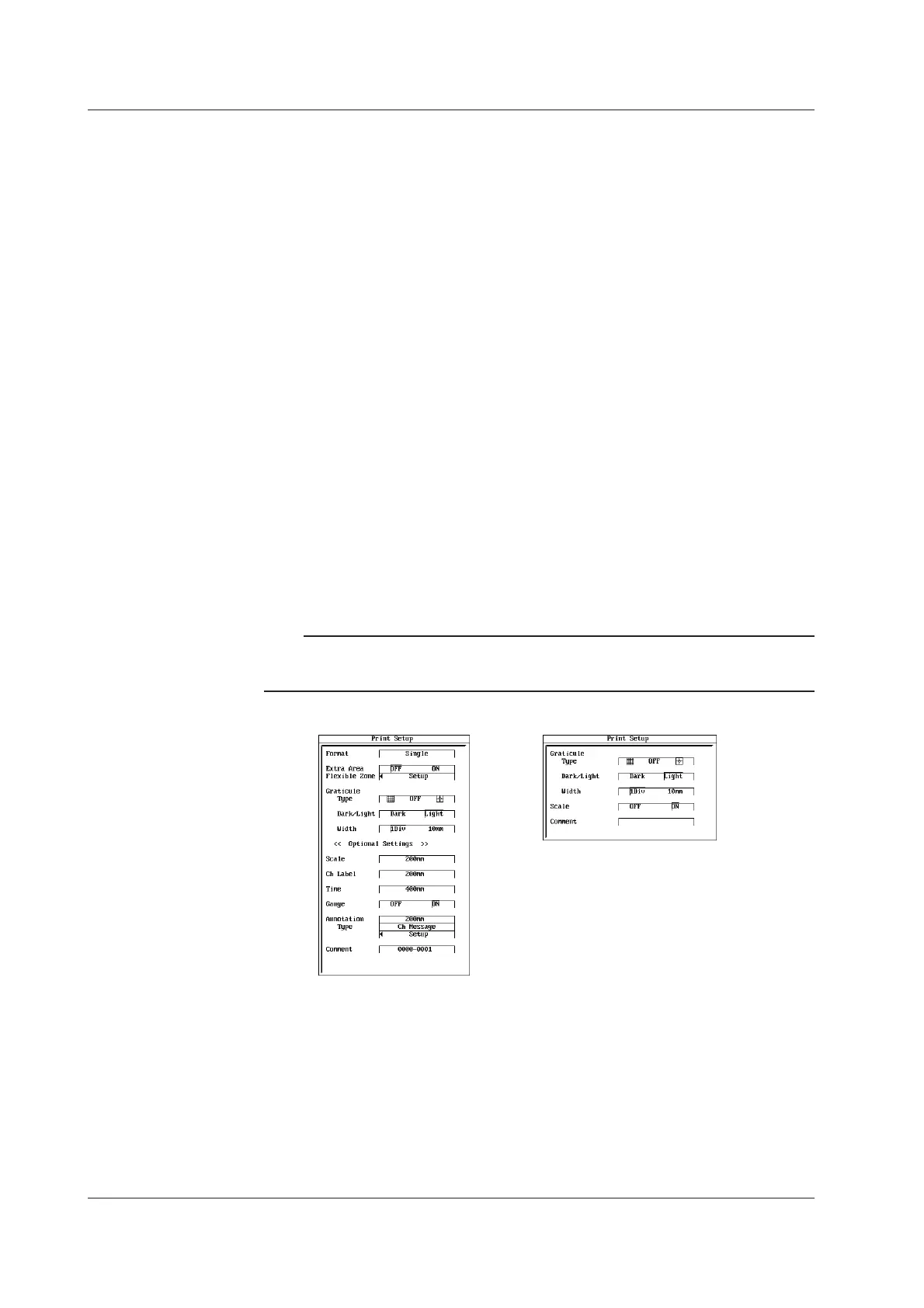

When Displaying the T-Y Waveform When Displaying the X-Y Waveform
13.13 Creating PDF files of the printed image (DL750P only)
