15-11
IM 701210-06E
Using the DSP Channel (Optional)
15

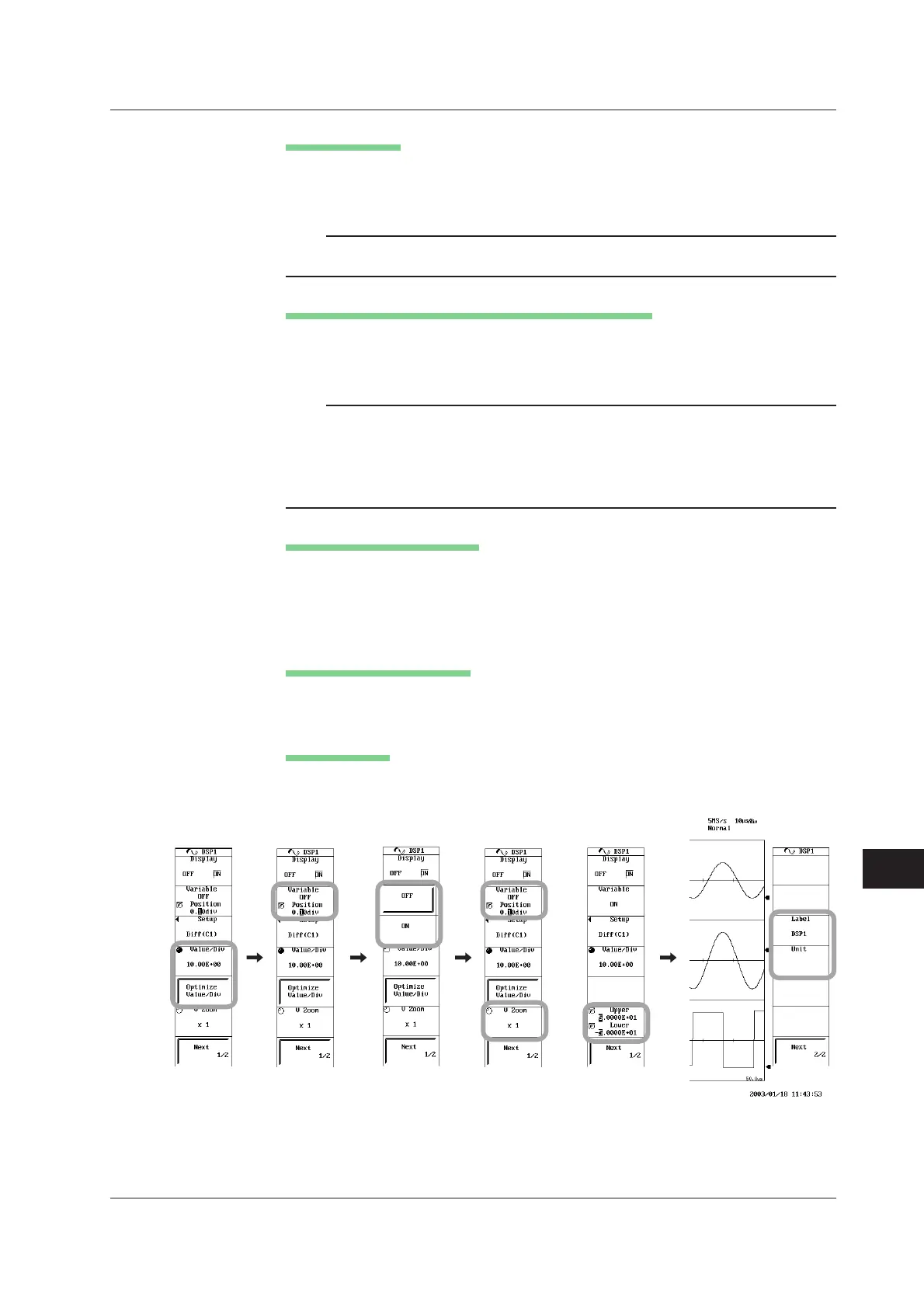

15.4 Performing Differentiation and Integration (DSP Channels)
Setting Value/Div
7. Turn the V/DIV knob to set the Value/Div value.
You can also set Value/Div by pressing the Value/Div soft key and turning the
jog shuttle.
Note
There are 123 (selectable range: 10.00E–21 [Value/Div] to 500.0E+18 [Value/Div]) different
Value/Div settings. You set the Value/Div using 1-2-5 steps similar to the V/div setting.
Automatically Selecting the Optimum Value/Div Setting
8. Press the Optimize Value/Div soft key. The optimum Value/Div setting is
automatically selected by referring to the range of the computation channel and
displayed.
Note
• The Optimize Value/Div soft key appears only when Variable is OFF.
• The operation using the Optimize Value/Div soft key selects the optimum Value/Div setting
by referring to the range of the computed channel. It does not select the optimum Value/
Div setting for the output waveform after computation. For easy viewing of the waveform
after computation, select the approximate range using Optimize Value/Div, and then use
the V/DIV knob or Value/Div soft key to adjust to the optimum range.
Zooming in on the Waveform
The procedure of “Zooming in or out Vertically by Setting the Zoom Rate” and “Zooming/
Expanding Vertically According to the Upper and Lower Limits of the Display Range” is
the same as the procedure described in section 15.2, “Performing Addition, Subtraction,
Multiplication, and Division (DSP Channels).” See page 15-4.
Setting the Waveform Label
The procedure is the same as the procedure described in section 15.2, “Performing
Addition, Subtraction, Multiplication, and Division (DSP Channels).” See page 15-4.
Setting the Unit
The procedure is the same as the procedure described in section 15.2, “Performing
Addition, Subtraction, Multiplication, and Division (DSP Channels).” See page 15-4.
Variable OFF
Variable ON
To Next Page
