Using the DSP Channel (Optional)
15

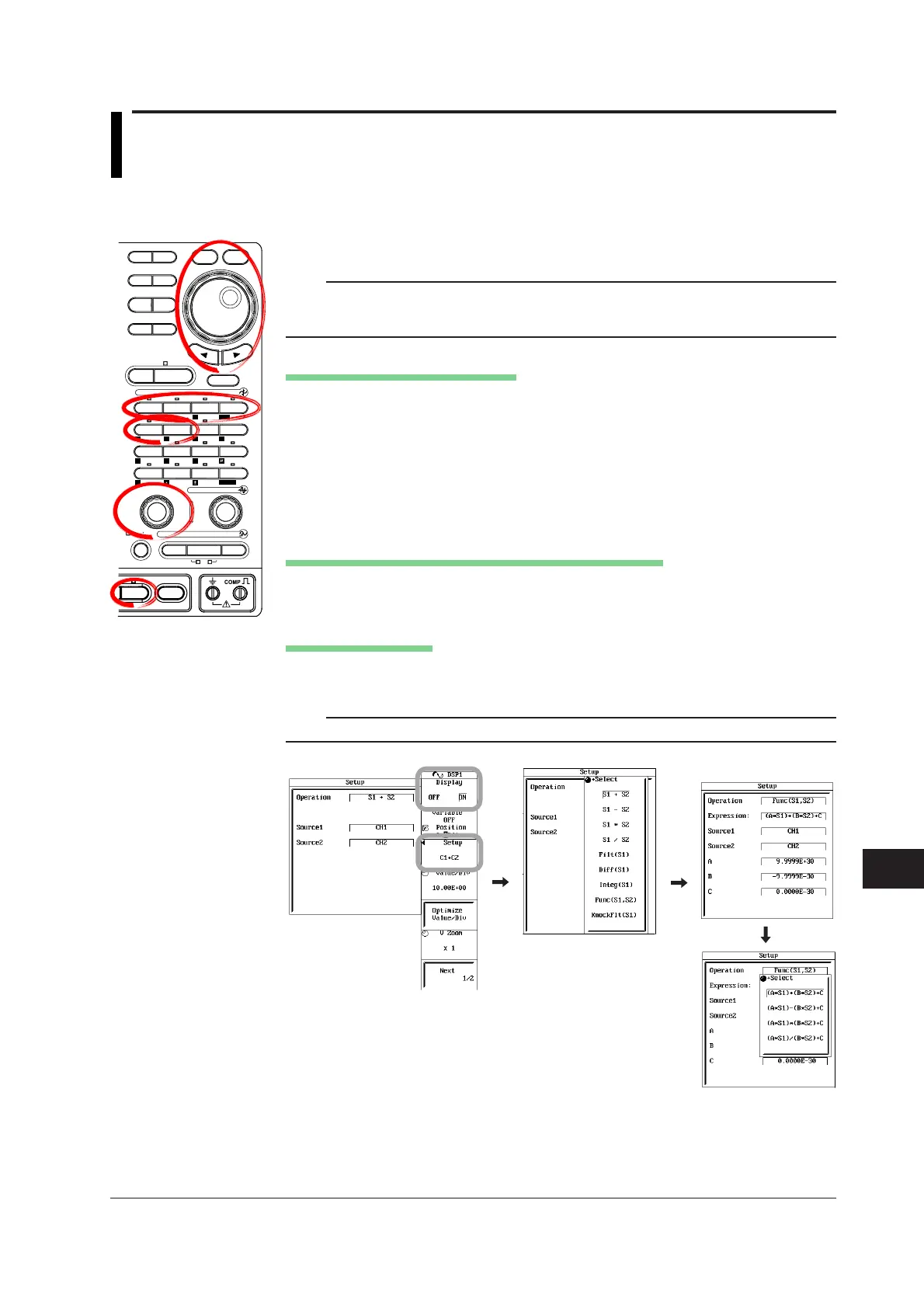

15.5 Performing Addition, Subtraction,
Multiplication, and Division with Coefficients
(DSP Channels)
<For a description of this function, refer to page 2-50.>
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press SHIFT+CH1 to CH6 (DSP1 to DSP6).
Note
For a description of turning ON/OFF the DSP, see section 5.1. For a description of setting
the vertical position, see section 5.4. For a description of zooming vertically by setting the
zoom rate, see section 5.8. For a description of setting waveform labels, see section 8.10.
Setting the Computation Definition
2. Press the Setup soft key. A setup dialog box opens.
3. Use the jog shuttle and SELECT to set Operation to Func(S1, S2).
4. Use the jog shuttle and SELECT to select the Expression from the following.
(A*S1)+(B*S2)+C
(A*S1)–(B*S2)+C
(A*S1)*(B*S2)+C
(A*S1)/(B*S2)+C
Selecting the Channel on Which to Perform Computation
5. Use the jog shuttle and SELECT to select Source1.
6. Likewise, select Source2
Setting the coefficient
7. Use the jog shuttle and SELECT to set coefficient A.
8. Likewise, set coefficients B and C.
Note
The selectable range of coefficients A, B, and C is ±9.9999E–30 to ±9.9999E+30.
