16-34
IM 701210-06E

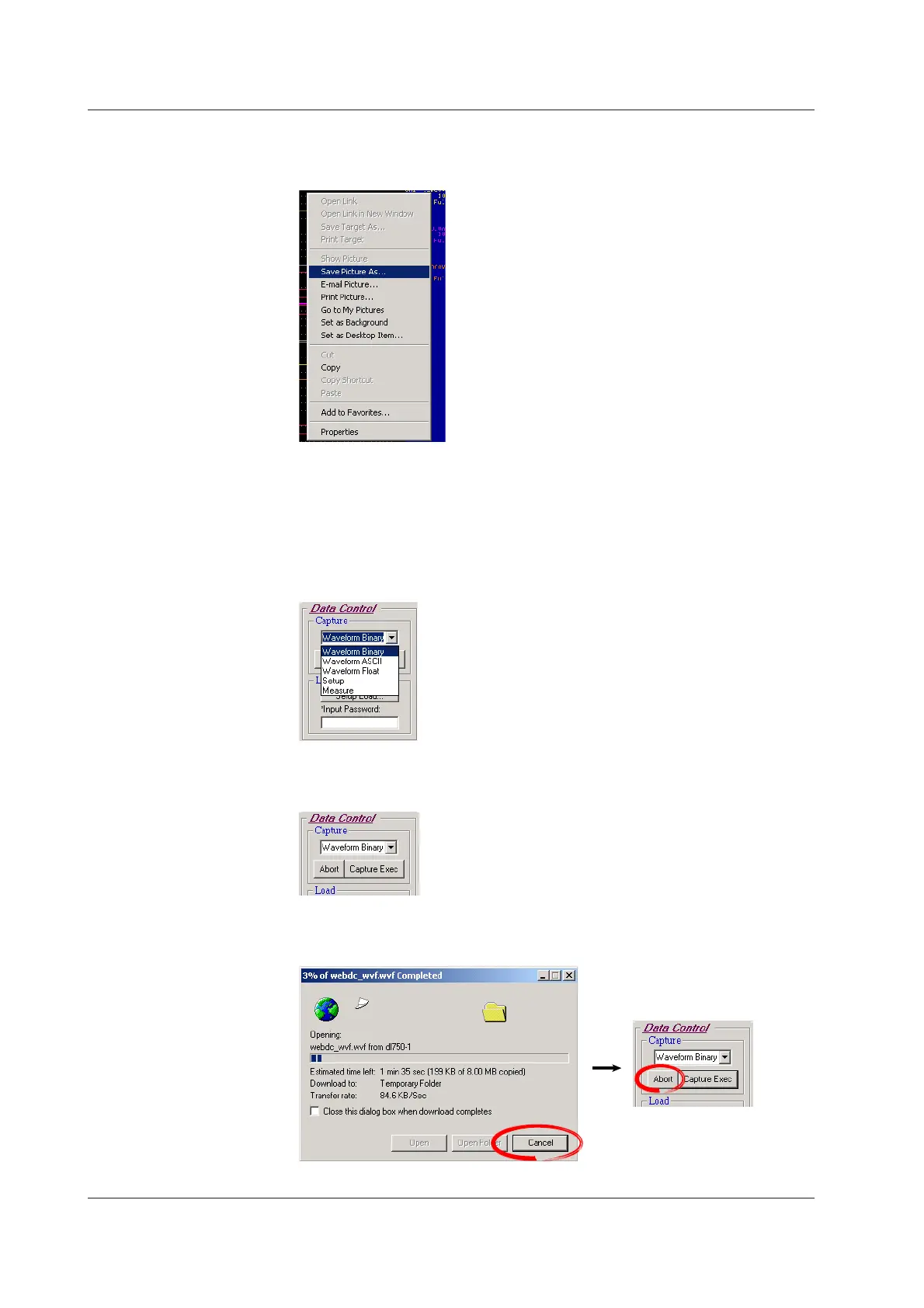

16.7 Using the Web Server Function
Saving the Screen Image in the PC
Right-click on the screen image that is displayed. A shortcut menu appears as shown
in the following figure. Choose Save Picture As to save the current screen image.
• Saving Data in the PC and Loading Setup Data from the PC into the DL750/
DL750P (Data Control)
Saving Data in the PC (Capture)
Data Type
Select the type of data to be saved from Waveform Binary, Waveform ASCII,
Waveform Float, Setup, and Measure. For details on the settings, see the
explanations in section 13.7, 13.8, and 13.10.
Capture Exec
Using the dialog box that appears when you click Capture Exec, set the save
destination and file name and save the data.
Abort
To abort the save operation while data is being saved, click Cancel on the dialog
box. Then, click Abort on the Control Panel.
You must enter a password to abort.
For details, see “Input Password” in
the next section.
