YOKOGAWA DL750 User Manual

2-21
IM 701210-05E
Explanation of Functions
2

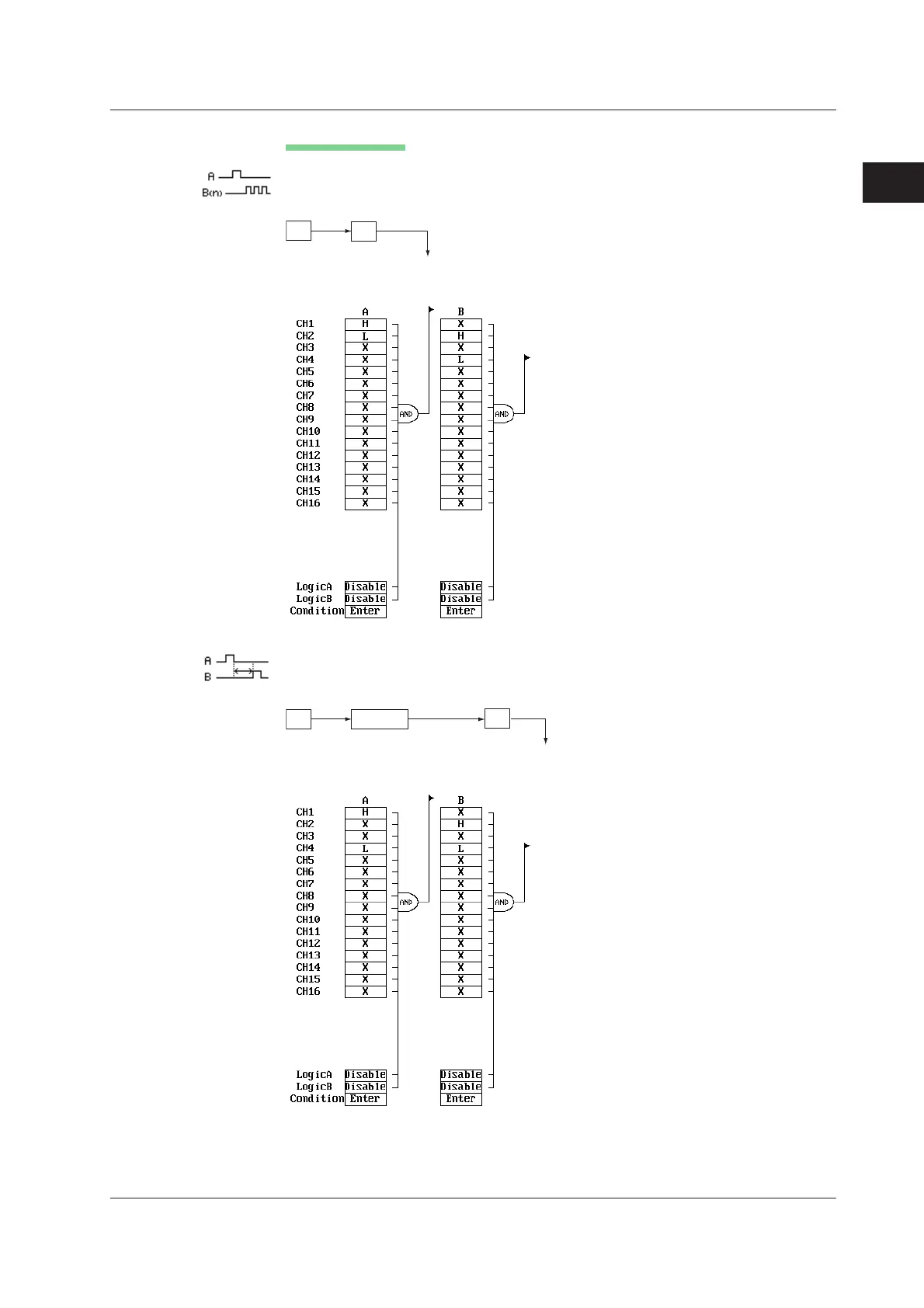

2.3 Setting the Trigger
Enhanced Trigger
A -> B(N) Trigger
A trigger is activated the n
th
time condition B becomes true after condition A has become
true.
A
B
True
True N times
Trigger
Condition A
Condition B
CH1 to CH16
L: Low level
H: High level
X: Don’t care
Condition
Enter: True when the preset
condition is met
Exit: True when the preset
condition is not met
LogicA/LogicB
Disable: Do not use logic input
Enable: Use logic input
A Delay B Trigger
A trigger is activated the 1
st
time condition B becomes true after condition A has become
true and a preset time has elapsed.
A
Delay Time
True
B
True
Trigger
Progress
Condition A
Condition B
CH1 to CH16
L: Low level
H: High level
X: Don’t care
Condition
Enter: True when the preset
condition is met
Exit: True when the preset
condition is not met
LogicA/LogicB
Disable: Do not use logic input
Enable: Use logic input
