YOKOGAWA DL750 User Manual

2-24
IM 701210-05E
2.3 Setting the Trigger

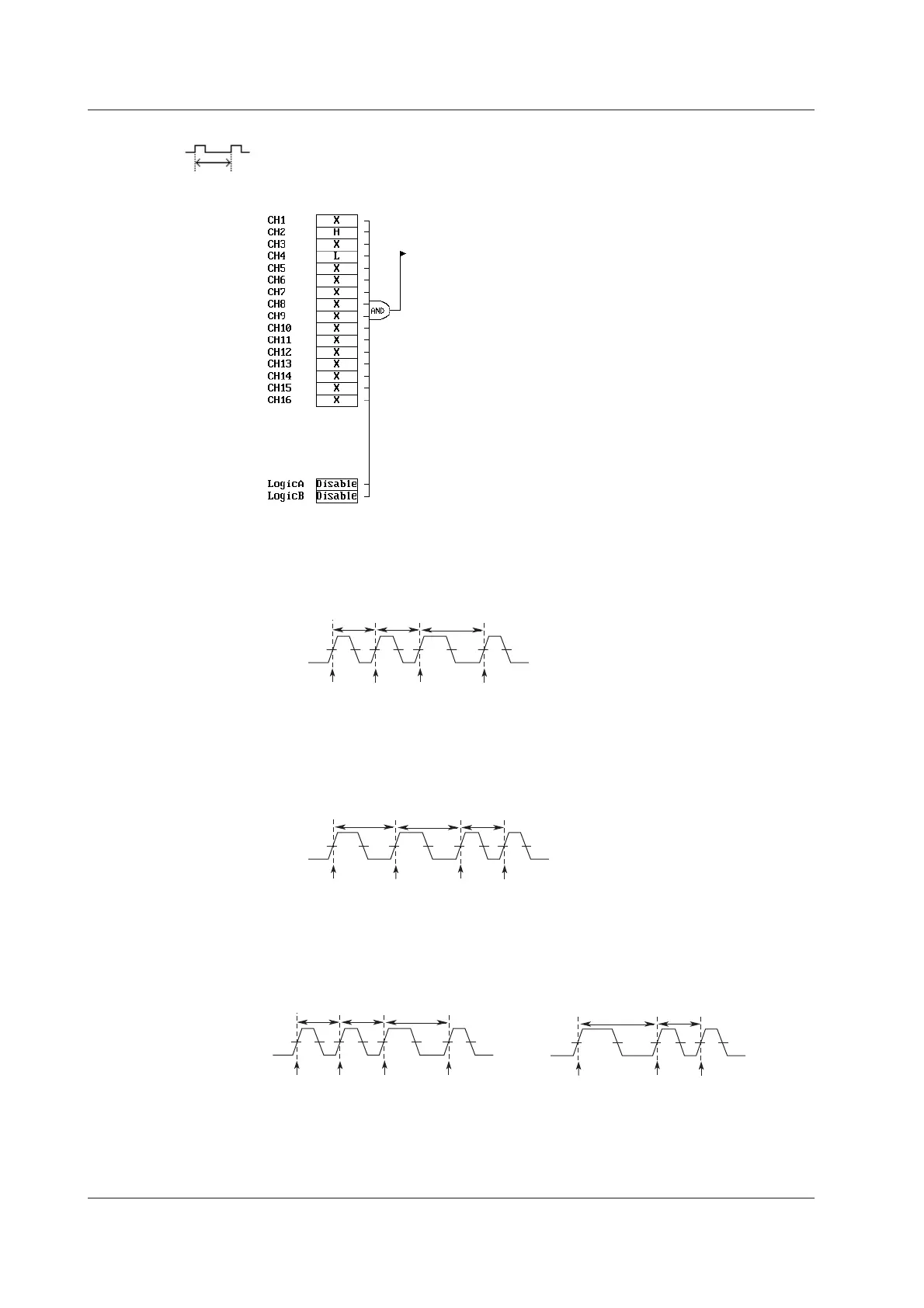

Period Trigger
A trigger is activated by measuring the pulse period (period from the time condition T is
met to the next time when condition T is met).
LogicA/LogicB
Disable: Do not use logic input
Enable: Use logic input
CH1 to CH16
L: Low level
H: High level
X: Don’t care
T
•T > Time
A trigger is activated when condition B is met the second time (T), if the time when
condition B is met the second time is longer than a specified time (Time).
When condition B: CH1=H and Time=10 µs
B is true
CH1
8 µs
8 µs
B is true
B is true
12 µs
B is true
Trigger activated here
•T < Time
A trigger is activated when condition B is met the second time (T), if the time when
condition B is met the second time is shorter than a specified time (Time).
When condition B: CH1=H and Time=10 µ s
B is true
CH1
B is true
B is true
B is true
Trigger activated here
12 µ s
12 µ s
8 µ s
• T1 < T < T2
A trigger is activated when condition B is met the second time (T), if the time when
condition B is met the second time is within a specified time range (T1 and T2).
When condition B: CH1=H, Time1=10 µ s, and Time2=14 µ s
B is true
CH1
8 µ s
8 µ s
B is true
B is true
12 µ s
B is true
Trigger activated here
CH1
B is true
B is true
B is true
Trigger activated here
16 µ s
12 µ s
