YOKOGAWA DL750 User Manual

2-23
IM 701210-05E
Explanation of Functions
2
2.3 Setting the Trigger

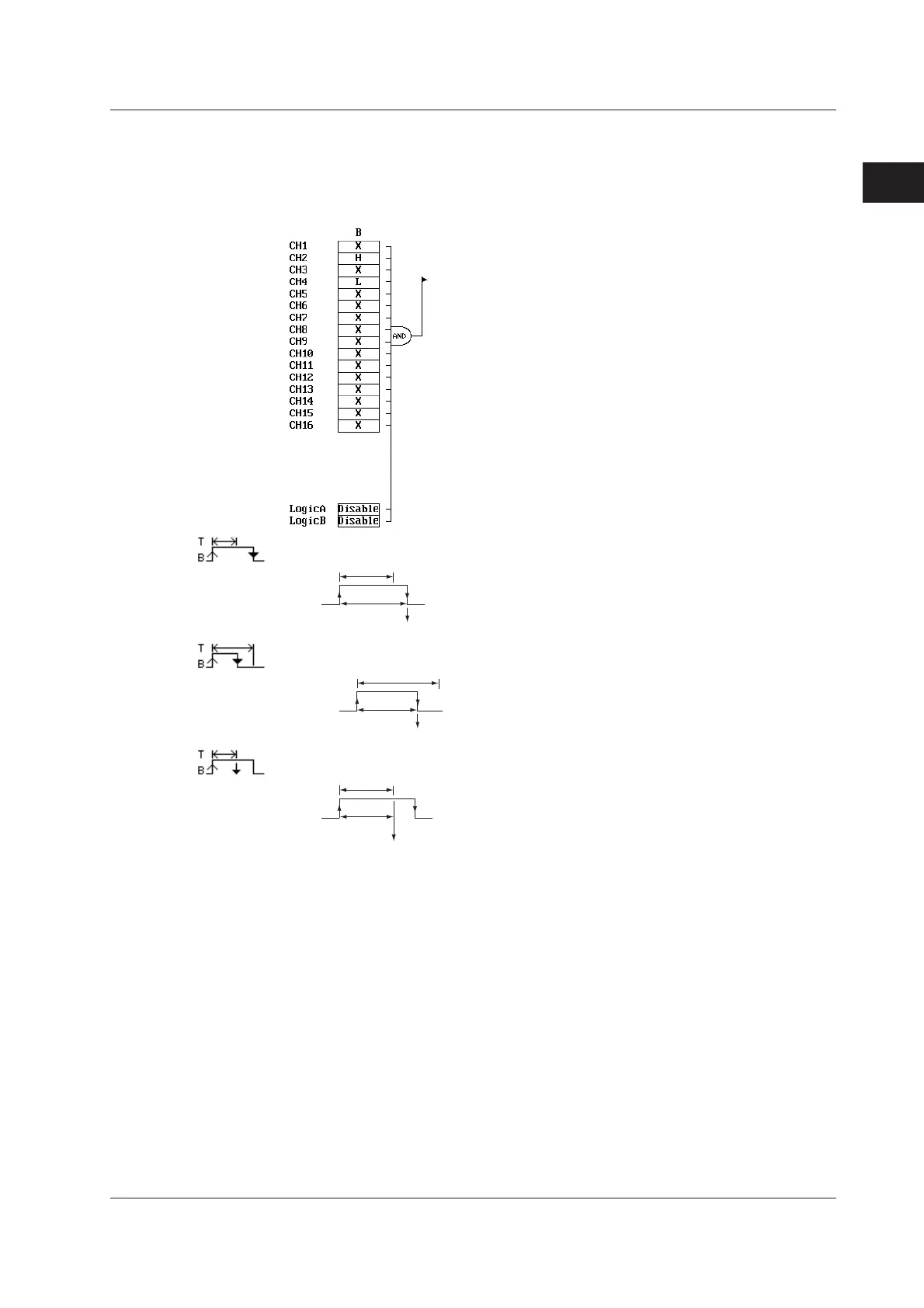

B > Time Trigger, B < Time Trigger, and B TimeOut Trigger
A trigger is activated on the falling or rising edge of the pulse when the pulse width (width
over which condition B is met) exceeds (or drops below) the preset time. In the case of a
Time out trigger, a trigger is activated when the preset time elapses.
LogicA/LogicB
Disable: Do not use logic input
Enable: Use logic input
CH1 to CH16
L: Low level
H: High level
X: Don’t care
•B > Time Trigger
B
Trigger
Time
B: Pulse width
•B < Time Trigger
B
Trigger
Time
•B TimeOut Trigger
B
Trigger
Time
