YOKOGAWA DL750 - Page 673

19-44
IM 701210-06E
Modules
24.5
108.5
200.9
8.4
24.5
(7.2)
108.5
208.1
200.9
8.4
24.5
200.9 8.4
108.5
24.5
200.9
8.4
108.5
24.5
108.5
200.9
8.4
24.5
108.5
200.9
8.4
4mA 22V
4mA 22V
ACT
OVER
ACT
OVER
High-Speed 10 MS/s, 12-Bit Isolation Module (701250)
High-Speed High-Resolution 1 MS/s, 16-Bit Isolation Module (701251)
High-Speed 10 MS/s, 12-Bit Non-Isolation Module (701255)
High-Voltage 100 kS/s, 16-Bit Isolation Module (with RMS) (701260)
Universal (Voltage/Temp.) Module (701261)
Universal (Voltage/Temp.) Module (with AAF) (701262)
Temperature, High Precision Voltage Isolation Module (701265)
Strain Module (NDIS) (701270)
Frequency Module (701280)
Acceleration/Voltage Module (with AAF) (701275)
Strain Module (DSUB, Shunt-Cal) (701271)

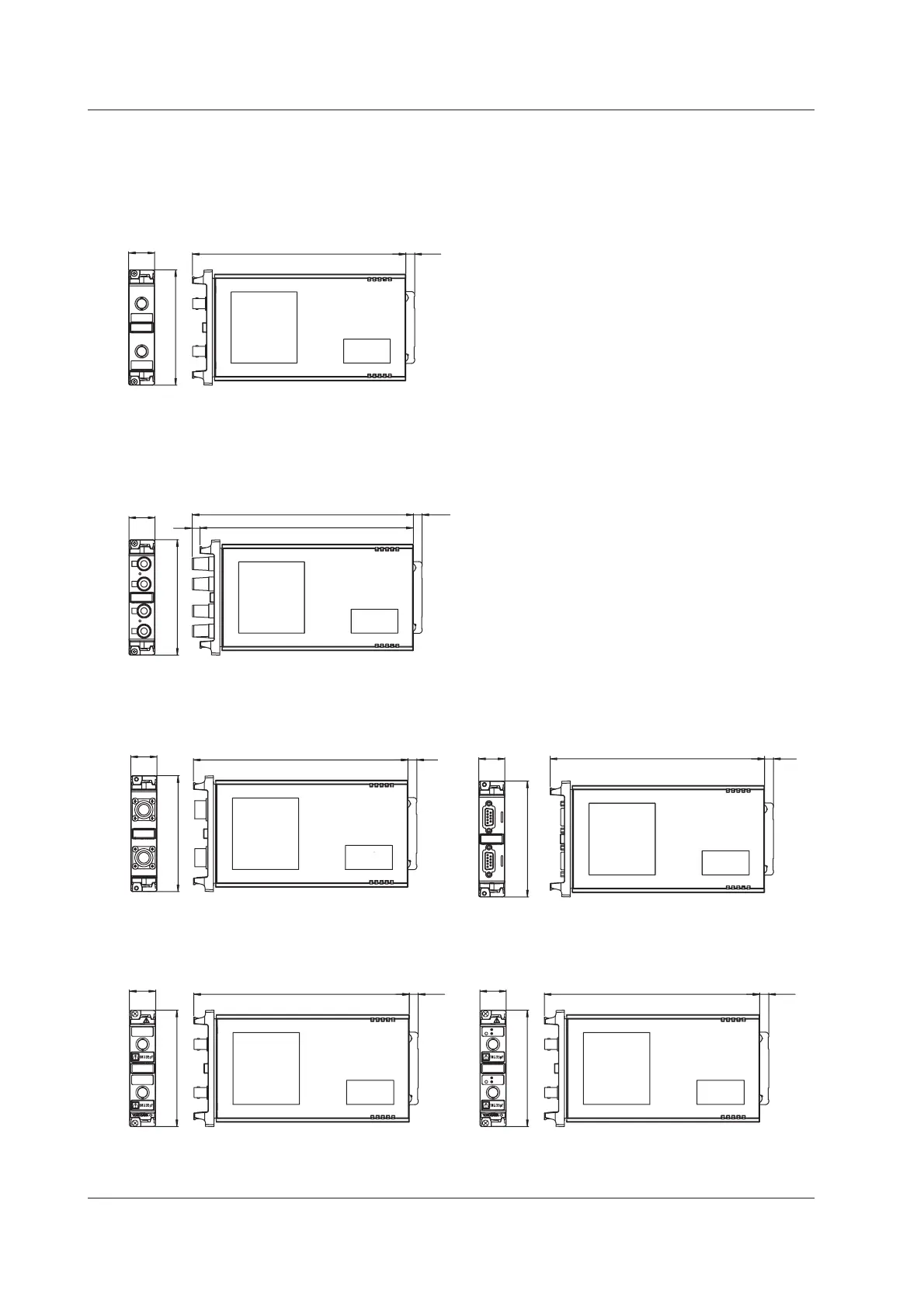

19.14 External Dimensions
