Cursor Measurement <Section 11.5>
The following cursors are available for analyzing the values of each waveform data.
H (Horizontal) Cursors
Two broken lines (H cursors) are displayed on the X-axis (horizontal axis). The voltage
of each H cursor and the voltage difference between the H cursors are measured.
V (Vertical) Cursors
Two broken lines (V cursors) are displayed on the Y-axis (vertical axis). The time from
the trigger position to each V cursor and the time difference between the V cursors are
measured. The voltage value of the signal at each cursor position, and the voltage
difference between the cursors are also measured.
H&V Cursors
H cursors and V cursors are displayed simultaneously.
Marker Cursors
Four markers are displayed on the specified waveform. The voltage and the time from
the trigger position of each marker as well as the voltage difference and time difference
between markers are measured.
Degree Cursors
Measures the angle between two angle cursors with respect to a reference angle
corresponding to the width between the zero point and the end point, which are
measurement references.

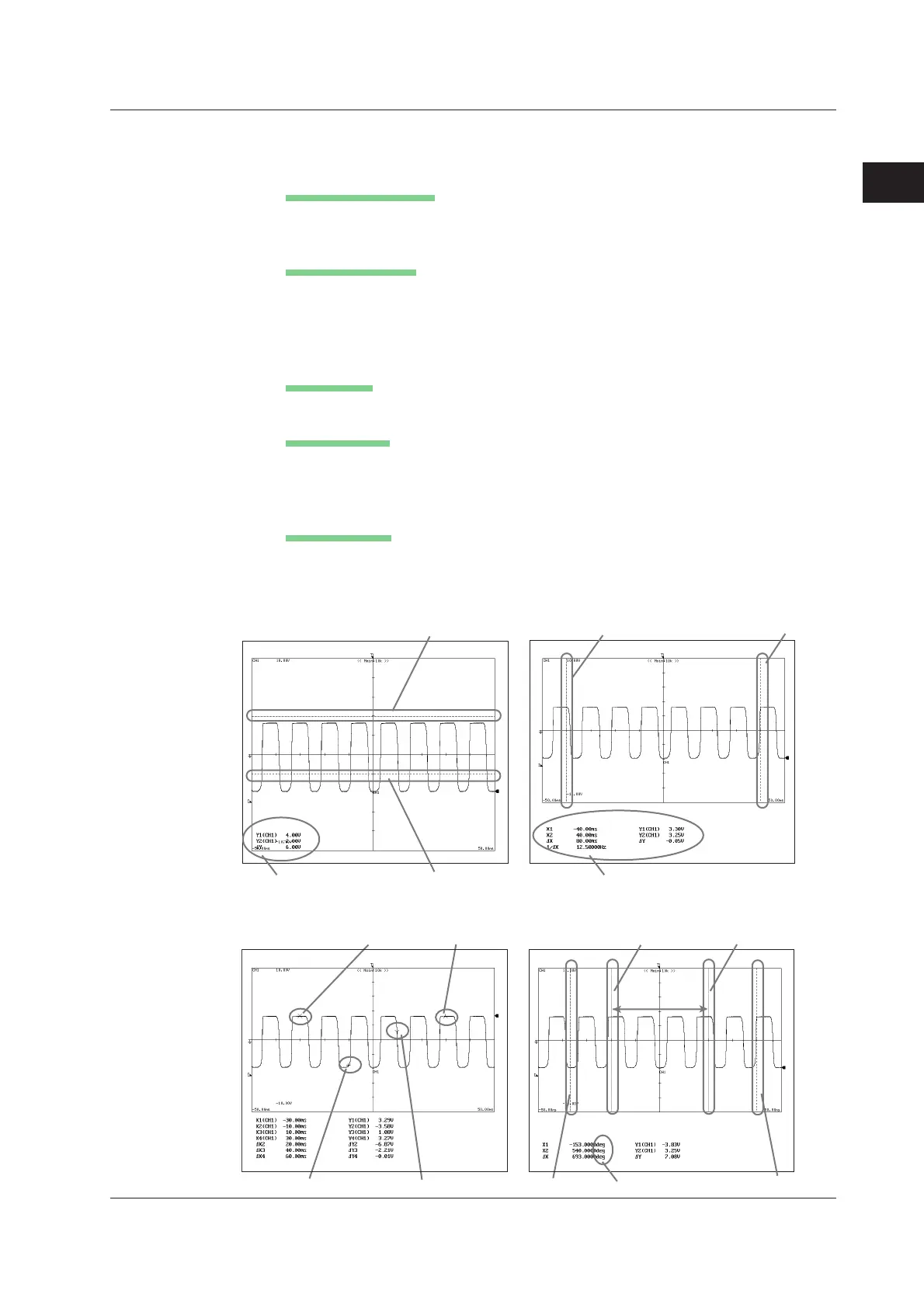

Marker 1
Marker 3
V cursor
H cursor
Cursor2
Cursor1
Cursor measurement value
(when the extra window is not displayed)
Marker 2
Marker 4
Reference cursor 2
Reference cursor 1
Angle cursor
Marker cursor
Cursor1
Cursor2
Cursor1
Cursor2
Cursor measurement value
(when the extra window is displayed)
Reference
width
Unit
