4. TSM Service Program 1/2010 4 - 117
BA-TE-DE08W M.KAY Dialog+ SW9xx_SM_Chapter 4-3-1_1_2010.doc/pdf <110301> yymmdd B. Braun Avitum AG
Dialog
+
SW 9.xx
PA/PV/PBE/PBS Calibration Point
0 mmHg
10. Remove syringe for the 0 mmHg calibration (open to atmosphere).
Wait until digits are stable.

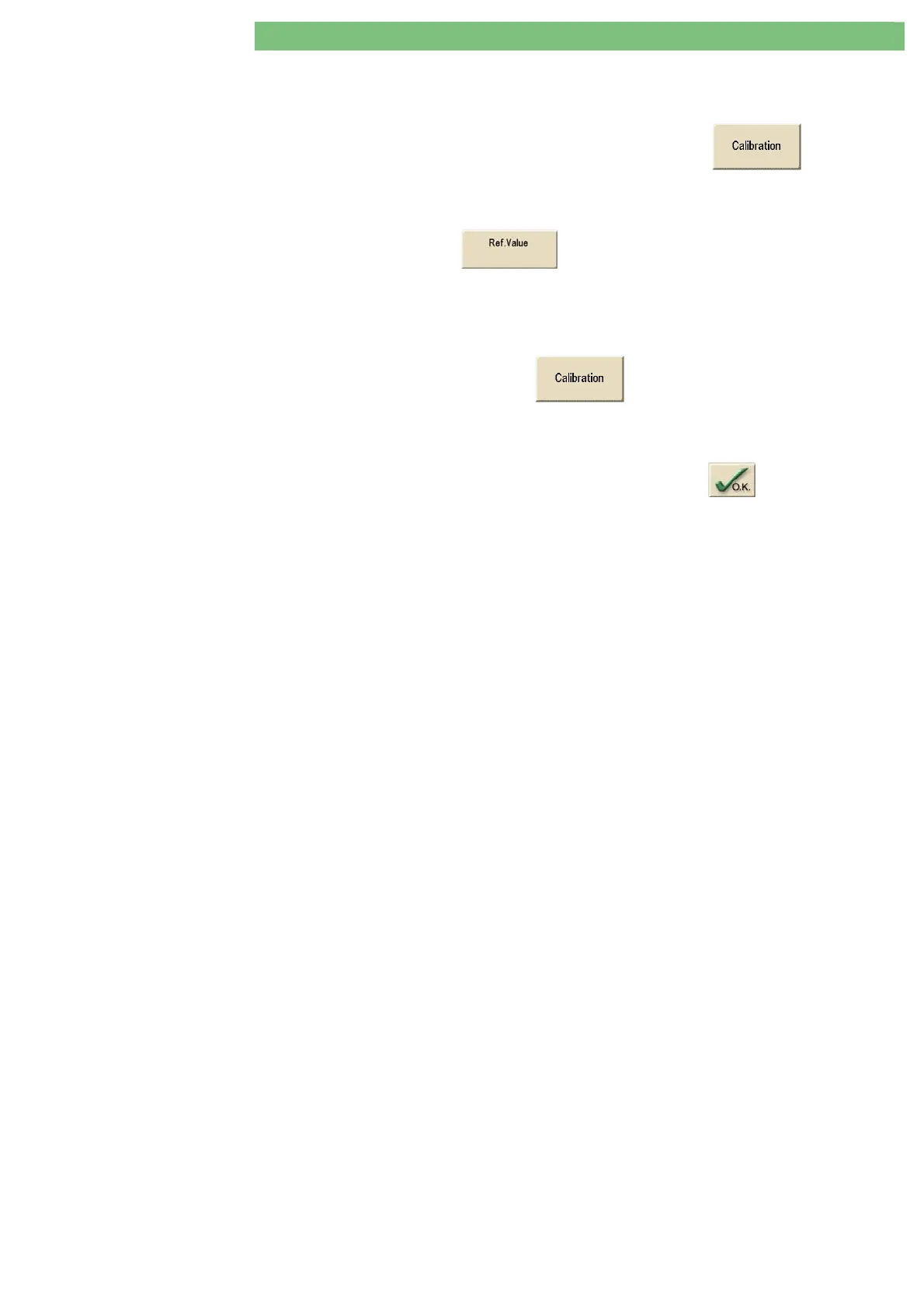

11. Confirm the reference value 0 mmHg with the
key.
PA/PV/PBE/PBS Calibration Point
+500 mmHg
12. Connect syringe and build up a pressure of +500 mmHg (-10 mmHg) and
clamp the tube.
13. Press
key.
14. Enter the stable value from the pressure measurement instrument as
reference value.
Wait until digits are stable.
15. Confirm with the
key.
Note: The calibration data is saved only after the bit sequence 0-1-0 (for
detailed information see 4.8.3.1 General Calibration Information).
16. Confirm and store completed calibration with
key.
17. Remove pressure measurement instrument, syringe and tubing.
