Brooks Marathon Express - Page 117

Brooks Automation 6. Operation
Part Number: 605914 Rev. B Controls and Indicators

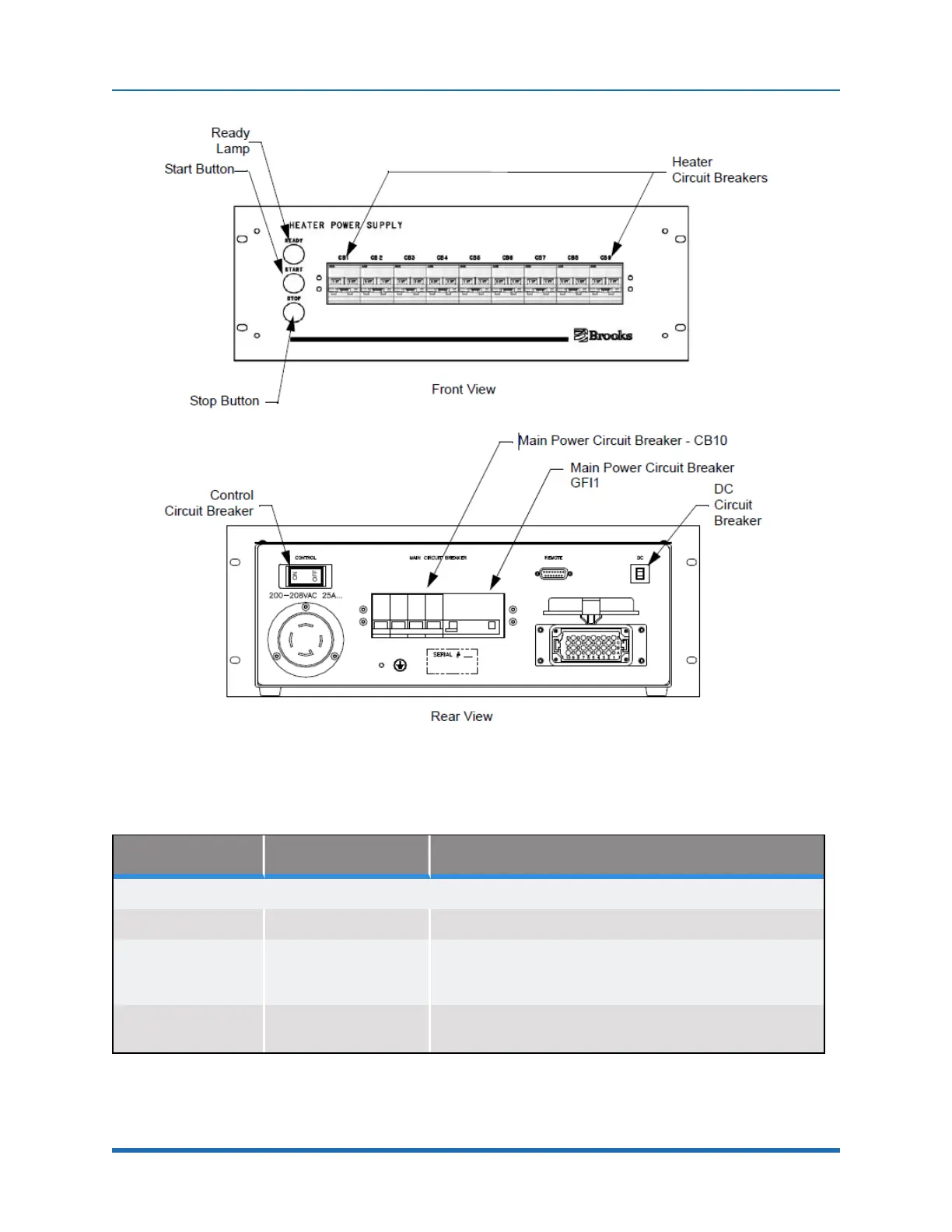

Figure 6-4: Heater Power Supply - Controls and Indicators
Name Description Function
Front
READY Greenlamp Indicatesheaterisreadytoacceptcommands
START
MomentaryPush-button
SwitchwithGreen
Lamp
ClosesmaincontactorInitiatesheatcycle
STOP
MomentaryPush-button
Switch
OpensmaincontactorHeatingoperationstops
Table 6-2: Heater Power Supply - Controls and Indicators
