Brooks Marathon Express - Operation

Brooks Automation 6. Operation
Part Number: 605914 Rev. B Heating System

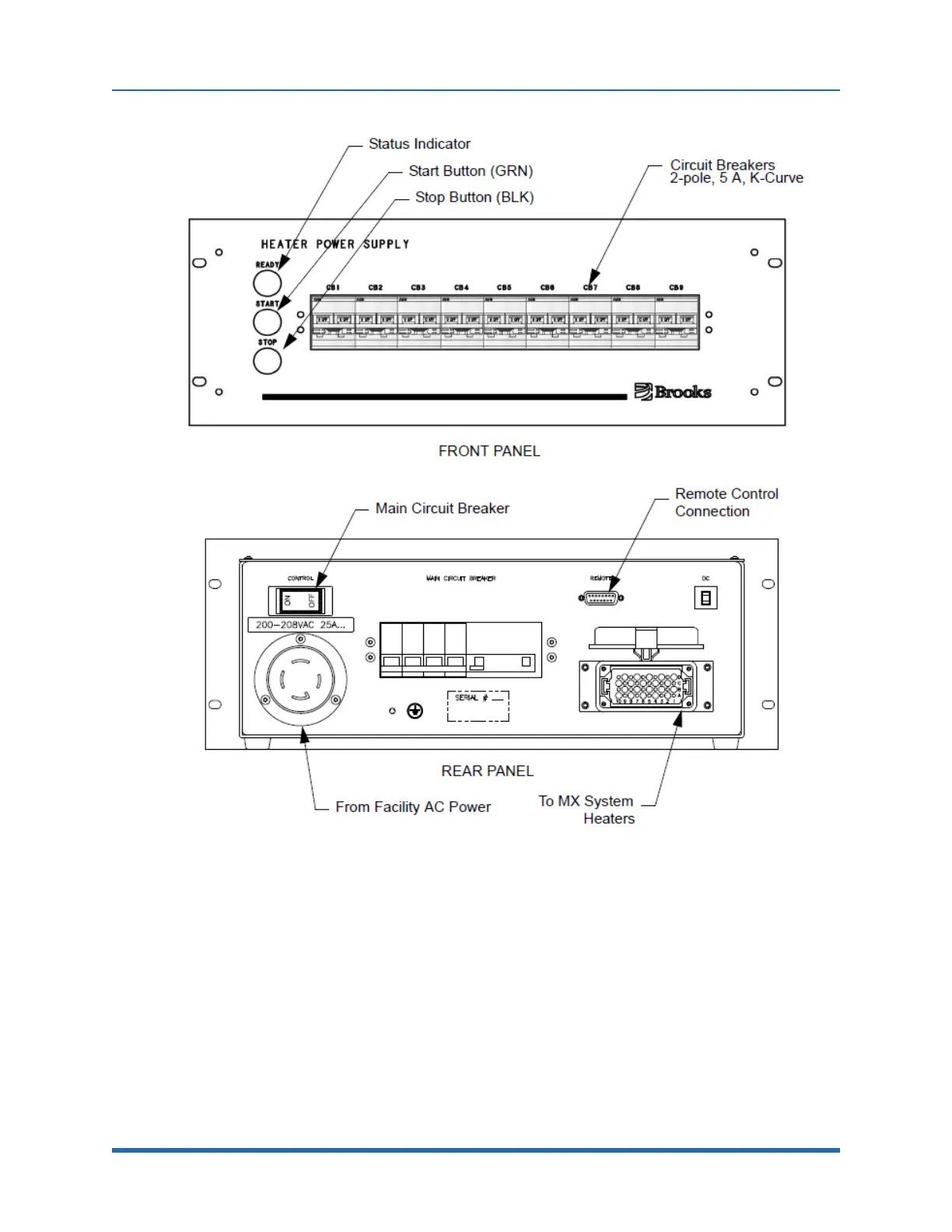

Figure 6-9: Heater Power Supply Controls
Operation
TheHeatersystemmaybemanuallycontrolledfromthefrontpaneloftheHeaterPowerSupply
withthetemperaturemonitoredvisuallyontheTemperatureController.
TheTemperatureControllercanalsocommunicatewiththehostcontrollertoprovidemonitoringof
temperaturecontrolparameters,setpoints,etc.Inthisway,thehostcontrollercanturnoffthe
heatersbychangingthetemperaturesetpointbelowthecurrentvaluetherebycausingtheover
tempalarmtoshutthepoweroff.
