4. Subsystems Marathon Express
Power Distribution Part Number: 605914 Rev. B
Power Distribution
PowerfromthemainfacilityconnectionisdistributedtothevariousmodulesoftheMarathon
Express.Thisprovidesasinglepointofconnectiontominimizewiring.
RefertoSystemBlockDiagramandcontrolsmanualformoreinformation.
AC Power Distribution
TheframemountedACPowerDistributionUnit(ACPDU)providesasinglepointofconnectionto
theMXsystem.TheACPowerDistributionUnitsuppliesACpowertotherobot,theVCEloadlock,
thealigner,andanyadditionalBrooksinstalleddevices.Alldevicesprovidetheirownconversion
fromACpowertoDCpower.
NOTE: TheACPDUisnotintendedtosupplypowertouserinstalledmodules.

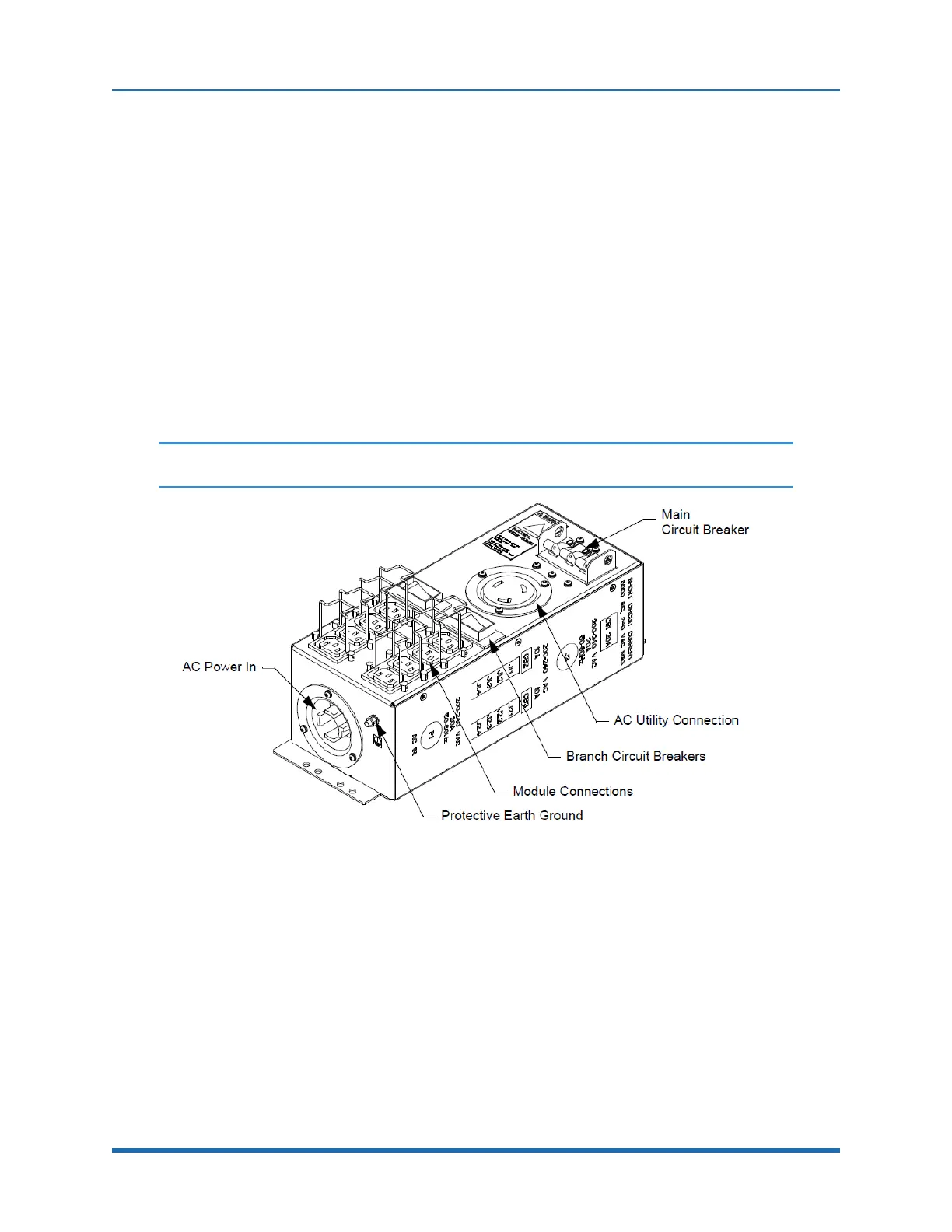

Figure 4-2: AC Power Distribution Unit
TheACPowerDistributionUnitisconnectedtothefacility’s200-240VACserviceandfiltersand
distributesittothevariousMarathonExpresssubsystemsthroughmultiplebranches.One20Amp
andtwosetsoffour10AmpmaxutilityconnectionsareprovidedforconnectionofallBrooks
suppliedmodulesontheMXsystem.Allunusedoutletsarecoveredbya“DONOTUSE”label,and
arenotavailableforuseraccess.
RefertotheSystemBlockDiagramsuppliedwiththismanual,and"ACPowerDistribution"onpage
115forcontrolsandindicator.
86
