Brooks Automation 4. Subsystems
Part Number: 605914 Rev. B Electrical System

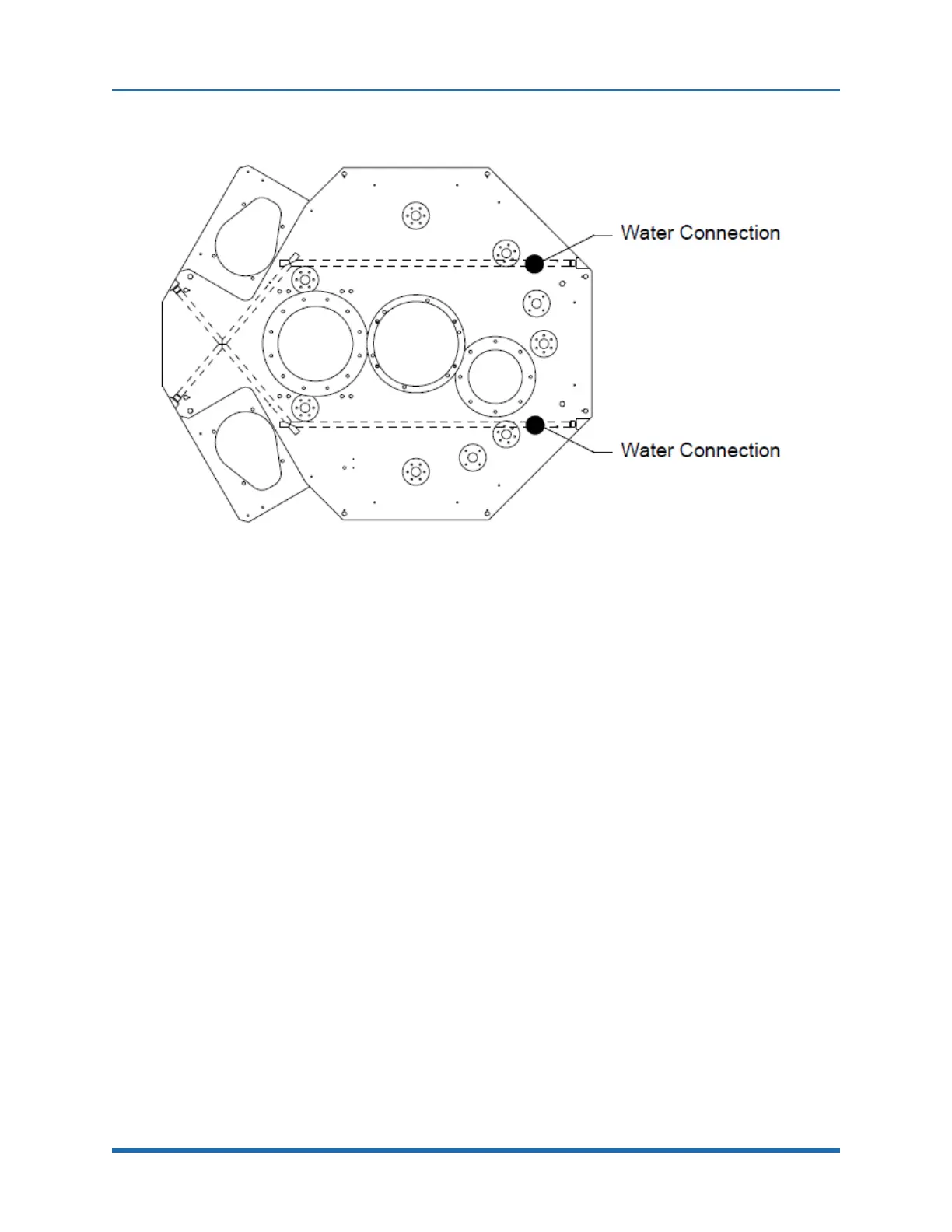

Figure 4-9: Chamber Cooling System
ForMXsystemsthathavetheoptionalTopCoolerwafercoolerinstalledcoolingwaterisroutedto
theCoolTraytoprovidewafercooling.RefertotheVXTopCoolerUserManual.
ForMXsystemsthatrequirecoolingformodulessuchaspumpsthecoolingwaterisroutedfromthe
waterfacilitiespaneltothemodulesrequiringcooling.
Thewatercoolingsystemrequiresaclosedloopcoolingsourcecapableofsupplyingchilledwater
ataminimumpressureof20psi.Thisminimumpressureisrequiredtoensurethatthewaterinside
theTransportChamberdoesnotboilwhenthechamberisheatedto120°Cduringbakeoutbythe
ElectricHeatingsystem.Thesupplypressuremustbe30psigreaterthanreturnpressureto
achievetherequiredflowrateduringchambercooldownafterbakeout.
TheMarathonExpresswatercoolingsystemutilizesthesameequipmentinallMXsystemswiththe
onlydifferencebeingthedifferentcoolingloadsassociatedwiththevariouscoolingoptions.
Electrical System
RefertotheSystemBlockDiagramsuppliedwiththismanualforthespecificsystem.
