Brooks Marathon Express - Watlow Temperature Controller Overview; Heating Modes

Brooks Automation 6. Operation
Part Number: 605914 Rev. B Heating System
calibrationaccuracy.RefertotheWatlowTemperatureControllersUserManualsuppliedwiththis
manual.

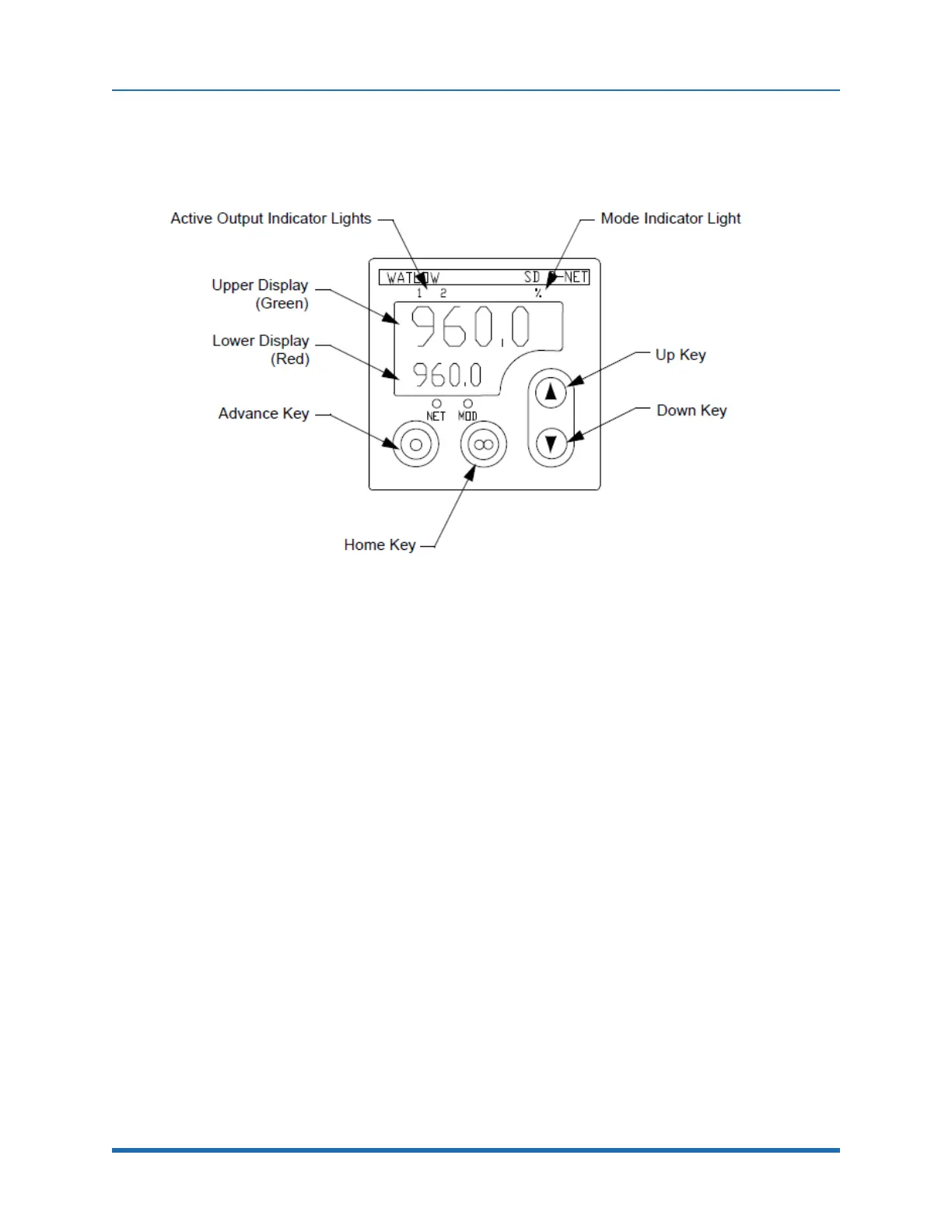

Figure 6-10: Watlow Temperature Controller - Gen 5
Watlow Temperature Controller Overview
ThecontrolsanddisplaysonthefrontpaneloftheWatlowTemperatureControllersareusedto
programthecorrectcommunicationsettingsandconfigurationparametersrequiredforproper
operation.RefertoorFigure6-10toidentifythecontrolsandindicators.
HomePage
TheHOMEPAGEistheWatlowControllerdefaultpage,displayingboththeactualtemperature
reading(UpperDisplay)andtheprogrammedtemperatureset-point(LowerDisplay).
OperationPage
TheOPERATIONPAGEcontainsfivemenusthatallowtheusertoprogramvariousAlarmset-
points,PIDparametersandOutputset-points.
Heating Modes
TheMarathonExpressheatersystemoptionofferstwomodesofheatingoperation:Bakeoutand
Continuous.
