5.5.1 Main Window
The main window contains:
•
Menu and toolbar at the top of the window.
•
Status strip at the bottom of the window.
•
Workspace.
After start-up, the main window is shown with an empty device environment that is docked at the left side as default,
however it can be moved to the right-hand side. The Output and Watchlist windows are docked at the bottom. The
workspace is empty on start-up.
The Device Environment, Output, and Watchlist windows have a close button and a pin button to prevent the window from
hiding. Both windows can be
oating windows. The workspace hosts the sub-tools.

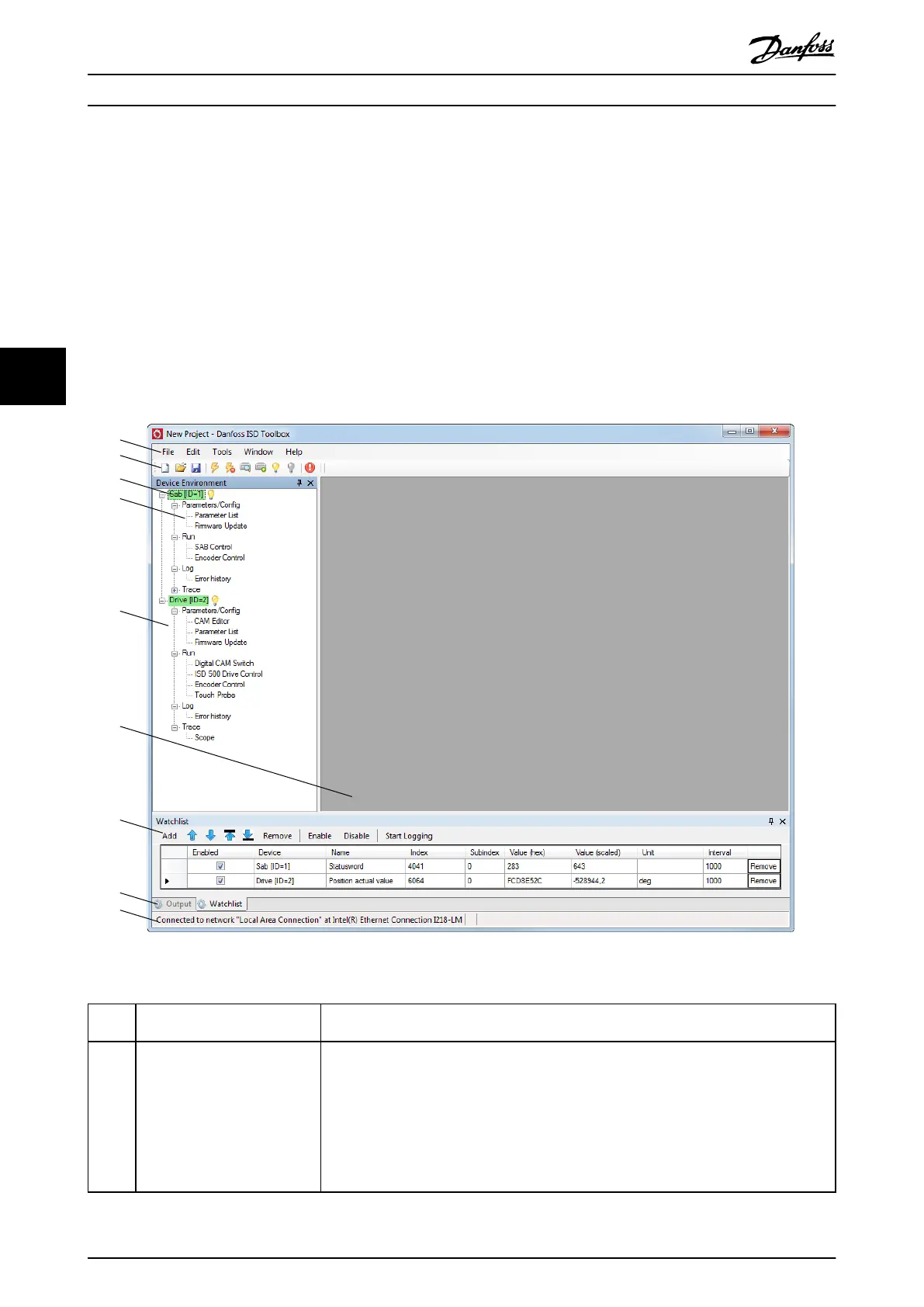

Illustration 5.7 Main Window
1 Menu bar Contains the general functionalities for saving and loading projects, managing connections,
showing and changing settings, managing open sub-tools, and showing help contents.
2 Tool bar Contains shortcuts for saving and loading projects, connecting to and disconnecting from
networks, automatic searching for online devices, or manually adding devices. Those function-
alities can also be found inside the menu bar.
Furthermore, a Panic button (shortcut key [F8]) is available in an emergency. It resets all
devices on the bus and thereby disables their operation, however it does not provide any
safety functionality.
The behavior of the ISD servo drives is dened by the Abort connection option code. The SAB
state is not directly aected by the reset command.
Operation with ISD Toolbox
VLT
®
Integrated Servo Drive ISD
®
510 System
114 Danfoss A/S © 01/2017 All rights reserved. MG36D102
