High End Systems DL.3 - Z Scale

CHAPTER 8
Graphic Functions: Rotation, Position, Scale
78 DL.3 Digital Light User Manual
Z Scale
The Z Scale parameter uses two channels to scale the selected 3-D object along the Z axis,
either expanding or shrinking it. Use it when you want to size the object’s thickness.
A DMX value of 32768 (50%) sets the object at its no
rmal size. Values less than 50% shrink the
the object thickness until it reaches a point at a value of 0. Values greater then 50% enlarge the
object to a maximum thickness at 255 (100%).
Default DMX Value: 32768 (50%) = Normal Scale

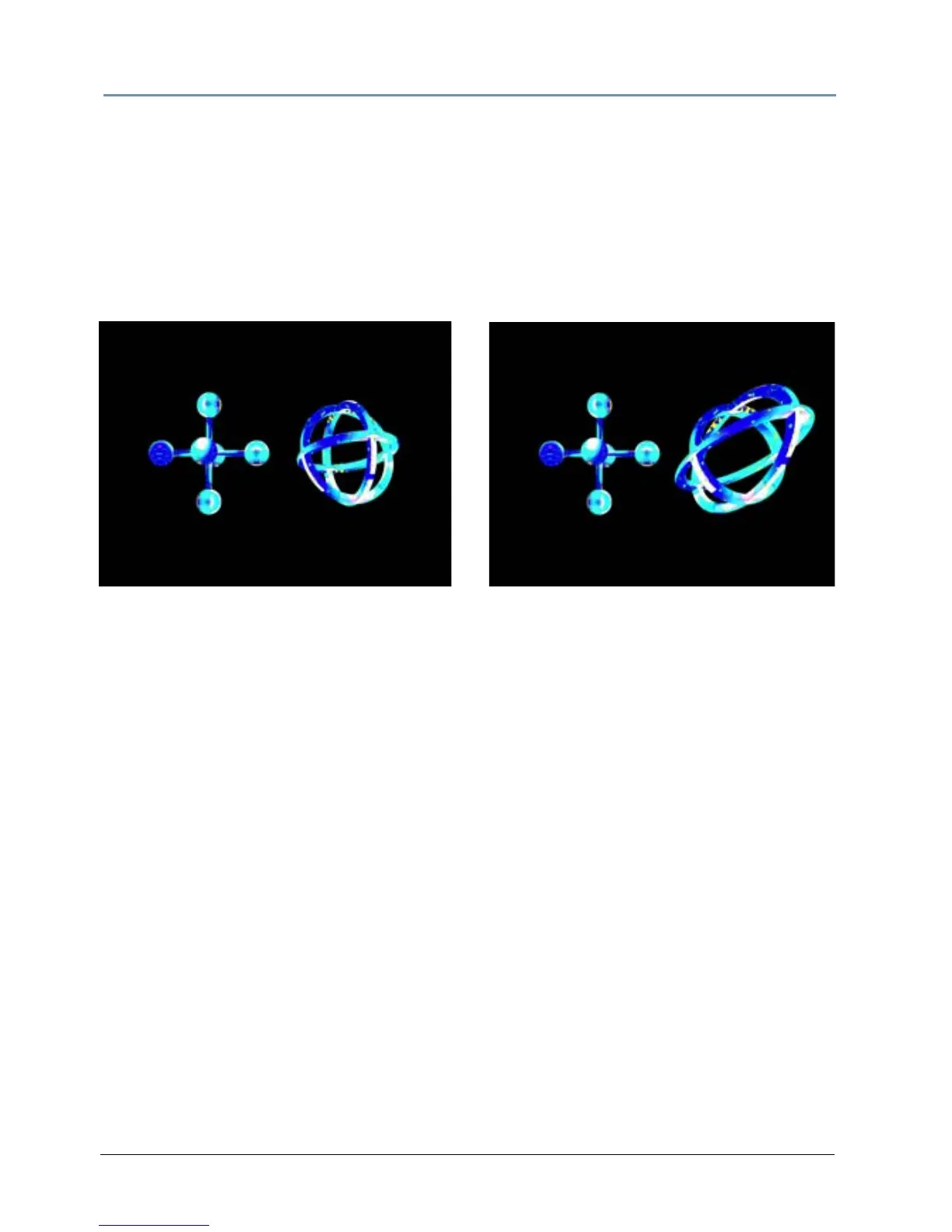

Original Object 1 and Object 2
All Scale DMX values = 32768 (50%)
Object 2 Z-Scale parameter DMX value = 22
3
Scaled 7.5 times in Z direction
