CHAPTER 3
The Digital Light Menu System
DL.3 Digital Light User Manual 31

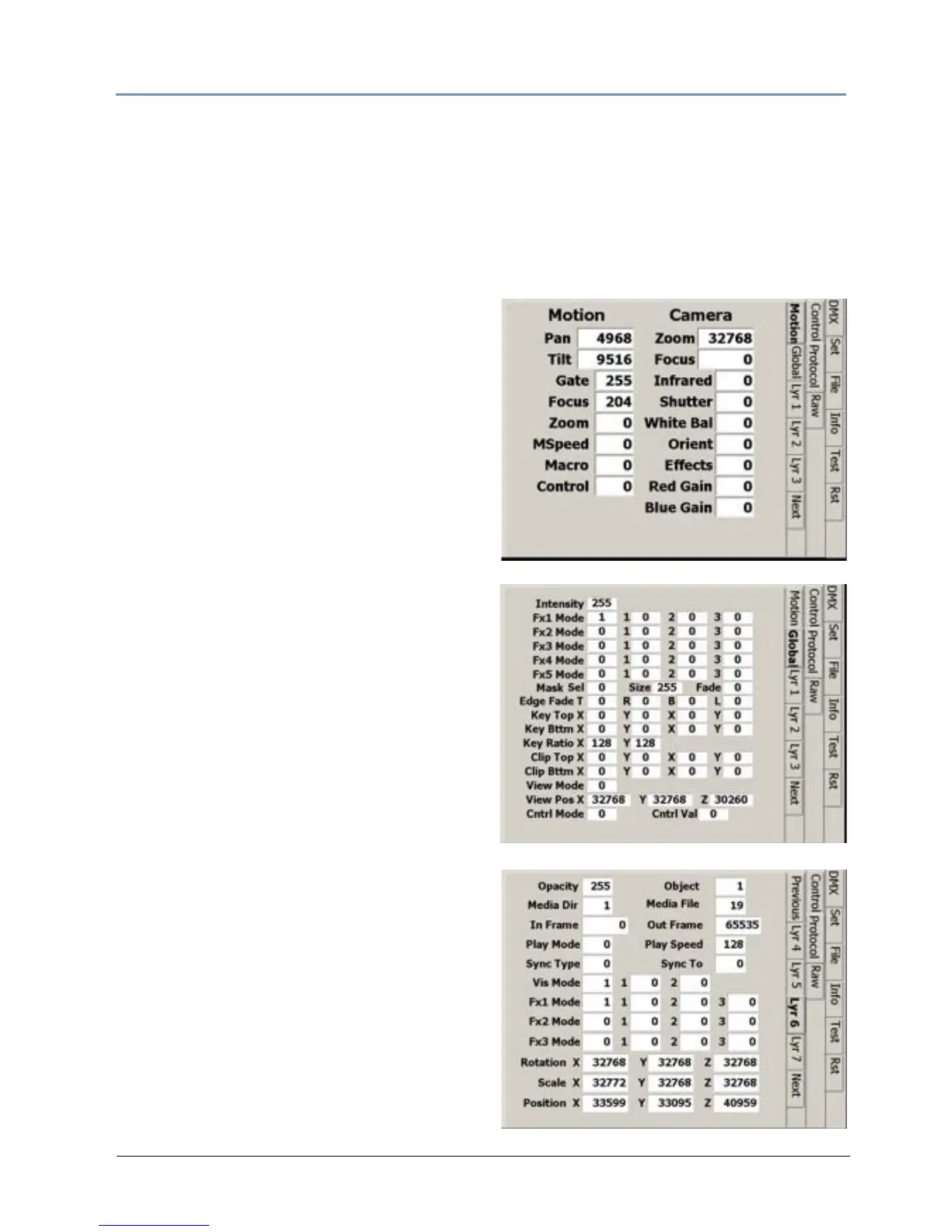

DMX_Protocol Tab
The Protocol sub-tab displays the current DMX value being received from a console for
each parameter after any conversion, such as i
nternal self test or protocol conversion.
The DMX parameters are grouped into
general categories, each with a separate tab. For more
information on individual parameters and their DMX value ranges, see Appendix A: DMX
Protocol on
page 321.
DMX_Protocol_Motion Screen
The Motion sub-tab displays parameters
associated with fixture movement, projector
control and integrated camera functionality.
NOTE: Camera parameters are present but not
active in DL.3F models.)
For more information on specific Motion and
Camera parameters, see: Chapter 14: Fixture
Motion Functions and Chapter 15: Live Video
Input and Control.
DMX_Protocol _Global Screen
The Global sub-tab display the current values
for parameters that affect the composite image.
For more information on specific Global
parameters, see Chapte
r 11: Global Functions.
DMX_Protocol _Obj Screens
Object sub-tabs are labeled from 1 to 9 and
display parameter values affecting a single
object’s content.
For more information on specific Graphic
F
unction parameters, see: Chapter 7: Graphic
Functions: Defining Content; Chapter 8: Graphic
Functions: Rotation, P
osition, Scale; and
Chapter 10: Graphic Functions: Synchronizing
Content
