Image Scale and Rotate
Effect Mode parameter DMX value = 52
This effect lets you scale and ro
tate the media file texture applied to a 3-D object’s surface
independent of Graphic Object rotation you set with the Rotation parameters (see Rotating a
3-D Object on
page 71). This allows scaling and rotating outside the bounds of the 3D object.
Modifier 1: Scales the texture. The default DMX value of 0 = no adjustment. As you increase
the DMX value to 255 (100%), the single image to scales to an increasing number of multiple
images similar to tiling.
Modifier 2: Sets the texture rotation angle. A DMX value of 128 (50%) = no adjustment.
V
alues above the midpoint rotate clockwise 255 (100%) = maximum rotation. Values below the
midpoint rotate counterclockwise to 0=maximum rotation.
Modifier 3: Sets the rotation speed from a DMX value of 0 = static to 255 (100%) = maximum.
Object Effect Global Effect

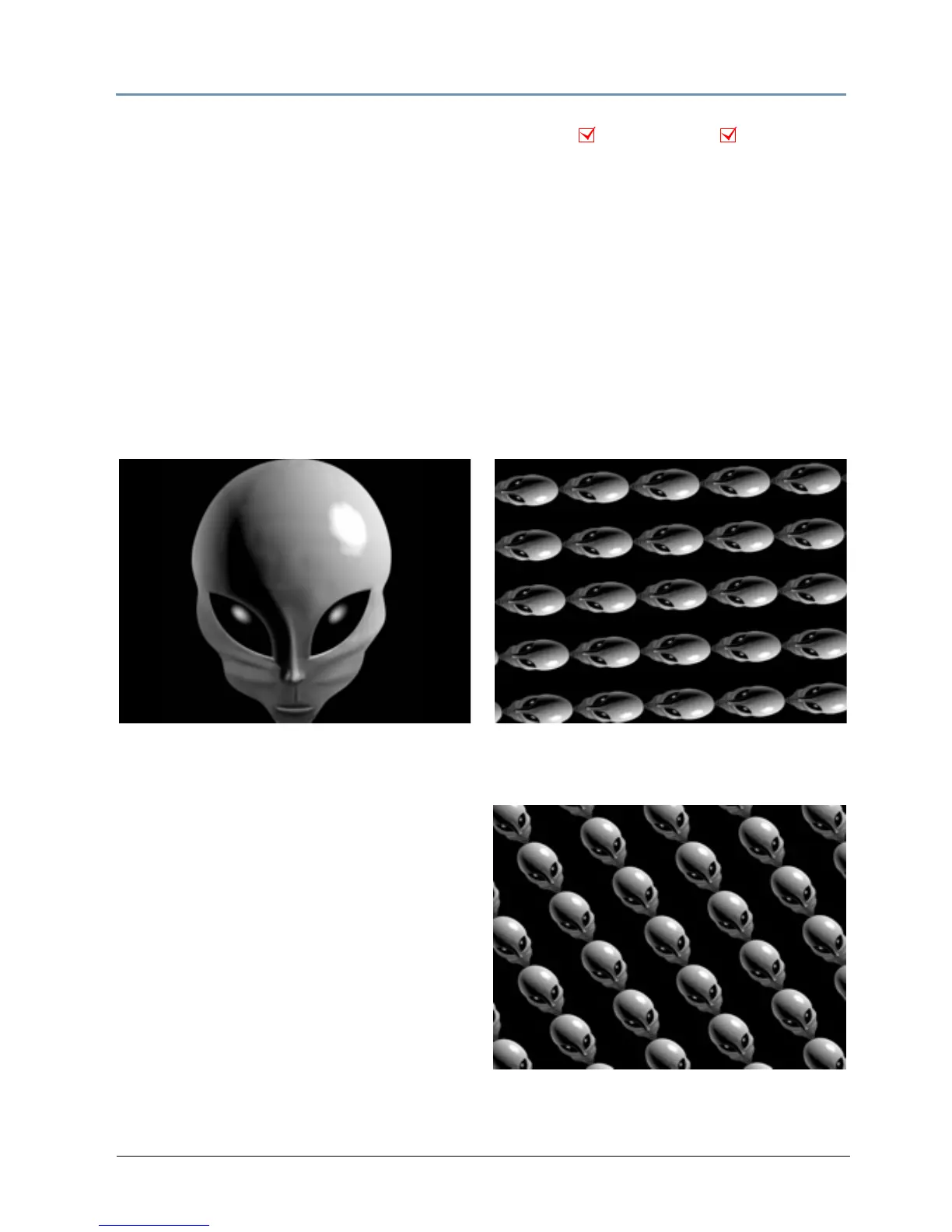

Original Content Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 0
Modifier 3 parameter DMX = 0
Modifier 1 parameter DMX = 255,
Modifier 2 parameter DMX = 81
Modifier 3 parameter DMX = 128
