Mask Color and Edge Fade Color
Effect Mode parameter DMX value = 130
This effect applies a color to both the selected Mask shape and any selected Edge parameter.
Color can also be applied to Mask shape (see Particle System on
page 216) and Edge
parameter(s) separately.
Modifier 1: Increases red color component from a DMX v
alue of 0 = no adjustment to 255
(100%) = maximum red saturation.
Modifier 2: Increases blue color component from a DMX v
alue of 0 = no adjustment to 255
(100%) = maximum blue saturation.
Modifier 3: Increases green color component from a DMX v
alue of 0 = no adjustment to 255
(100%) = maximum green saturation.

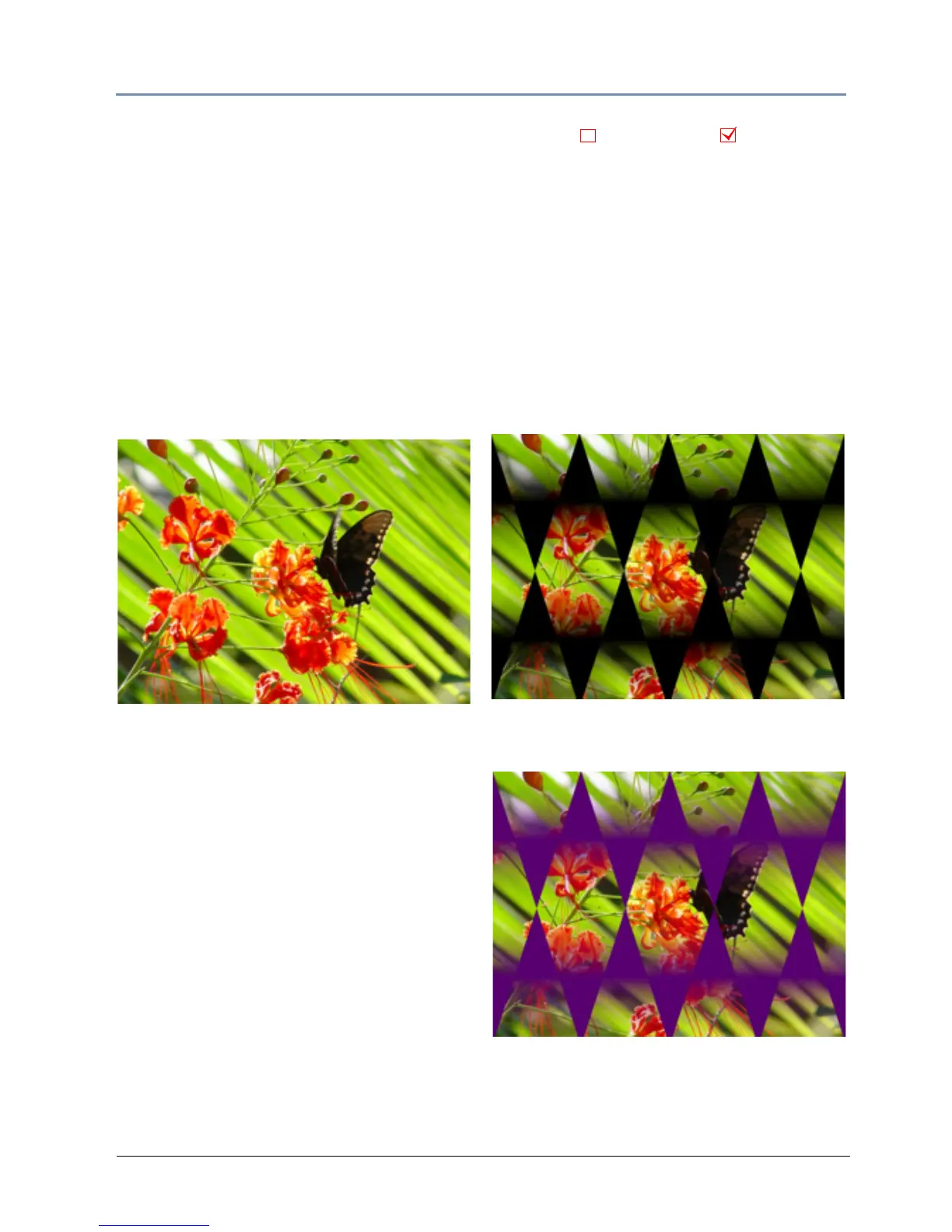

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 89
Modifier 2 parameter DMX = 0
Modifier 3 parameter DMX = 112
Original Content with Mask Color and Edge
Fade Color effect applied
