The graphics engine in a DL.3 fixture can receive video from an external
source or its own integrated digital video camera equipped with an
infared illuminator to provide a direct digital video feed option. The
features described in this chapter are not available on the DL.3F model.
Live Video Sources
Internal Camera
Every DL.3 is equipped with a internal video camera and IR illuminator capable of capturing
live video even in blackout conditions.
The camera is mounted on the fro
nt of the unit near the projector iris to point wherever the
fixture is directed.
All of the camera functions can be controlled via a DMX console (see Contro
lling the Internal
Camera Input on page 2
49).
Other Video Sources
A DL.3 fixture can also project other live video sources connected to the fixture’s SDI, RGBHV,
or S-Video input ports. Live SDI or S-Video input can then be enhanced and manipulated by
the graphics engine. Video input via RGBHV bypasses the internal graphics engine and is
projected without change.
NOTE: You can configure the graphics engine to capture video from an external
source or the internal camera but not from both at the same time.

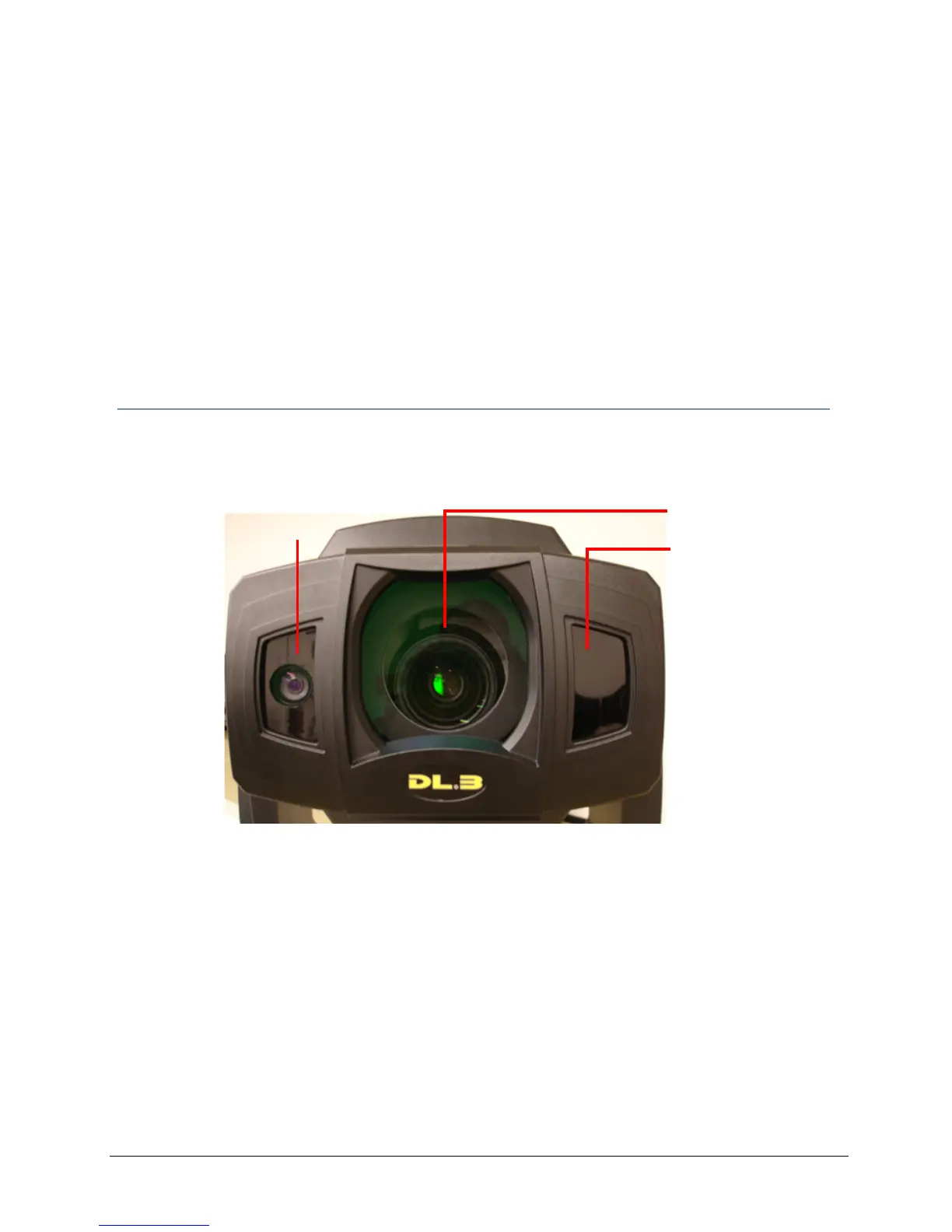

Digital Video Camera
Projector
Infared (IR) sensor
Fixture Front
