CHAPTER 13
Effect Mode Options Descriptions
238 DL.3 Digital Light User Manual
Transparent Wipes
Effect Mode parameter DMX value = 33
Transparent wipes let you open
one gr
aphic to reveal another
graphic behind it. You can select
from six options and the
ce
nterline of the effect.
Modifier 1: Adjusts the area of
the wipe from
the smallest at a
value of 0 to the largest at a
value of 255 (100%).
Modifier 2: Selects the center of
a wipe effect
’s separation
Modifier 3: Selects the wipe
opti
on. Each option occupies a
portion of the DMX value range
(see table at right).

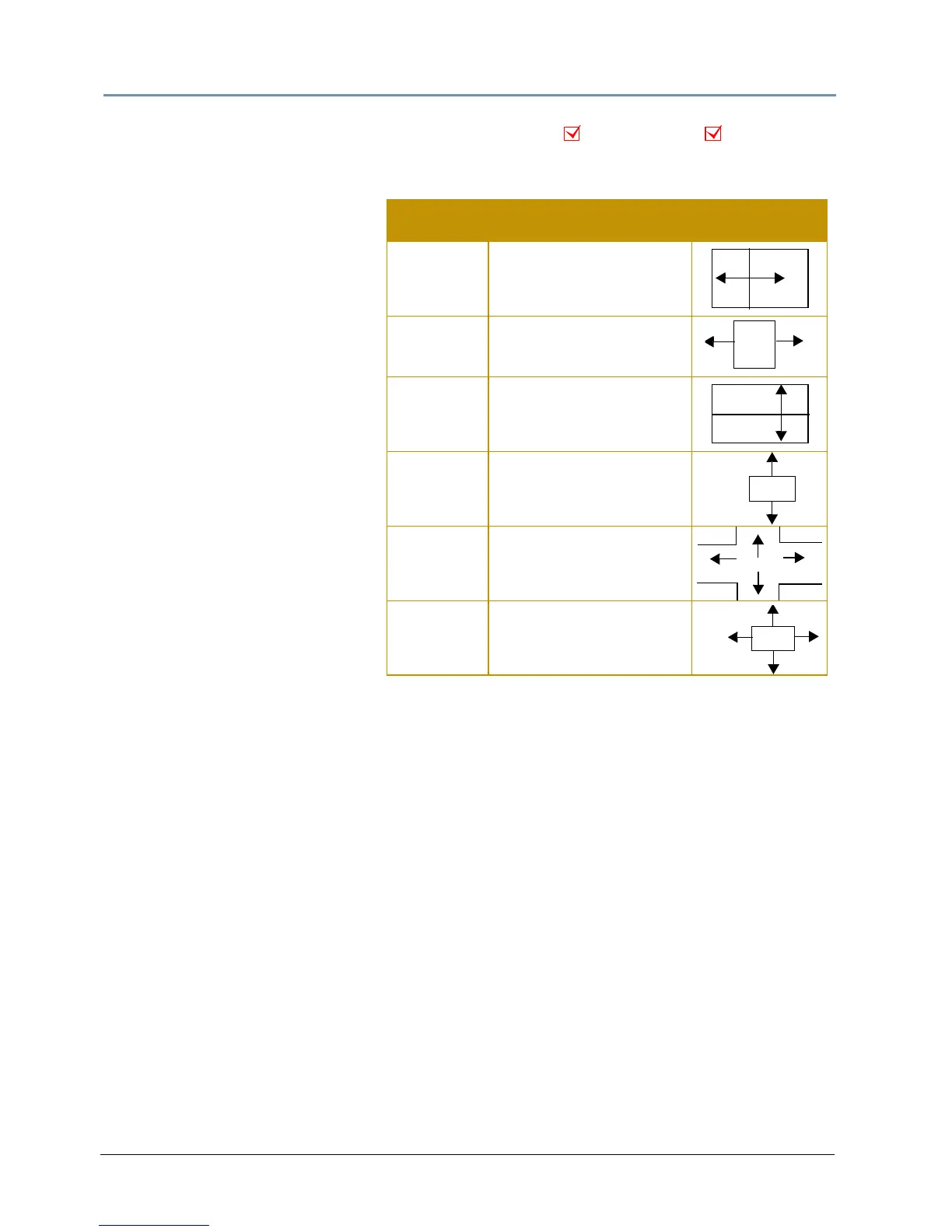

Object Effect Global Effect
DMX
Value
Modifier 3: Wipe Option
1-42
Rectangle wipes from
center out horizontally
43-84
Rectangle wipes from
edges out horizontally
85-126
Wipes from center out
vertically
127-170
Wipes from edges out
vertically
171-212
Cross shape wipes from
center out
212-255
Box shape wipes from
edges outward
