CHAPTER 8
Graphic Functions: Rotation, Position, Scale
DL.3 Digital Light User Manual 73
Rotation Parameters
X Rotation
The X Rotation parameter rotates the selected Graphic Object around the X axis with 16-bit
precision. You can index the rotation or set a continuous rotation creating a vertical flip at
variable speeds.
This parameter lets you view an
object from a different angle by turning the object. You can
also view an object from a different angle by changing the viewpoint in space for the composite
image, (see
Global Viewpoint Mode on page 1
32).
Default DMX Value: 32768 (50%) = No X Rotation
Tip: Using this parameter you can tur
n one object through another.
% of
Va
lue
Range
Function
1–24 Continuous variable-speed counterclockwise ima
ge rotation around X-axis (fast to slow)
25 Continuous rotation stop
26–49 Rotates the image counterclockwise around X-axis in steps to –720 degrees
50 0° rotation around X-axis
51–74 Rotates the image clockwise around X-axis in ste
ps to 720 degrees absolute
75 Continuous rotation stop
76–100 Continuous variable-speed clockwise image rot
ation around X-axis (slow to fast)

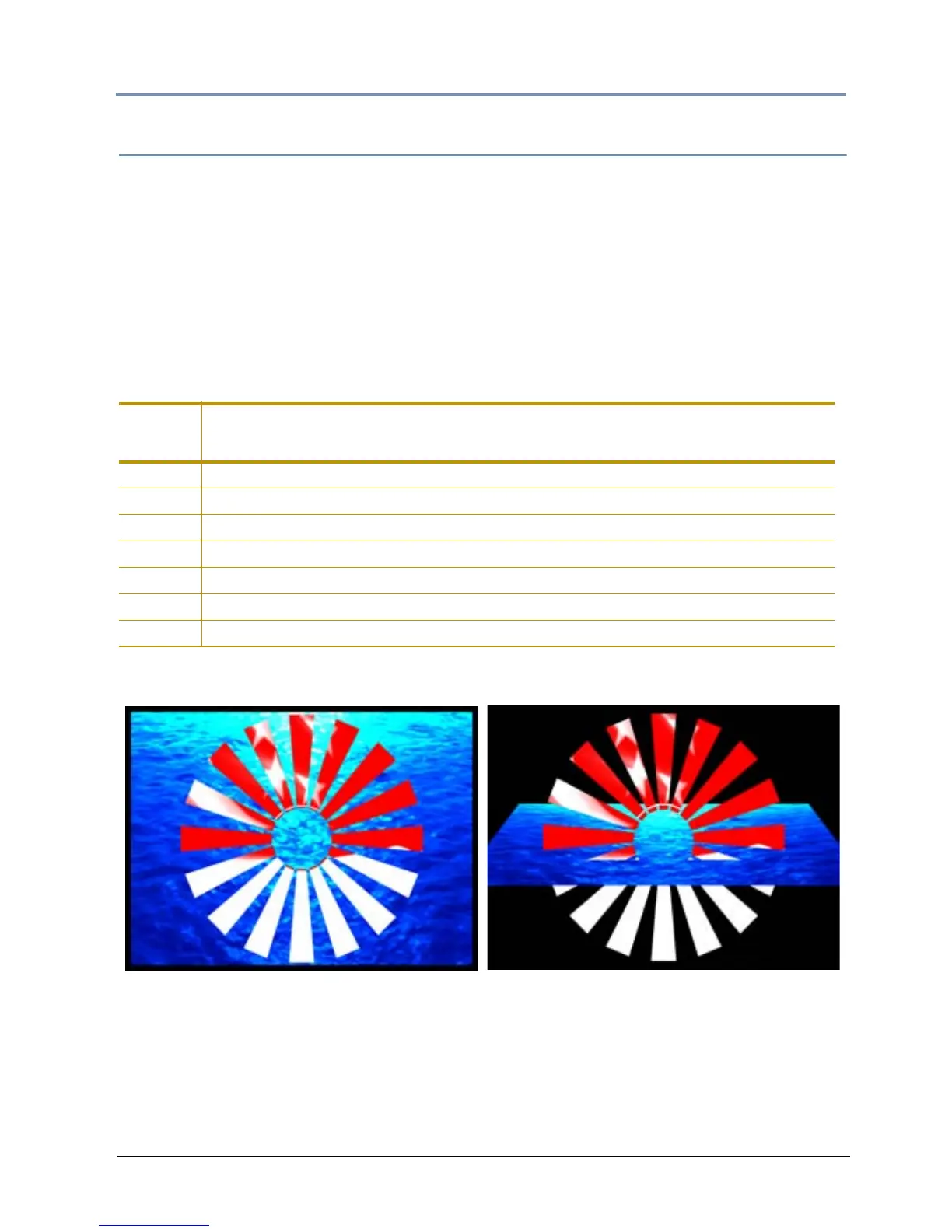

Original Object 1 and Object 2
X-axis Rotation Applied to Object 2
