Picture in Picture
Effect Mode parameter DMX value = 35

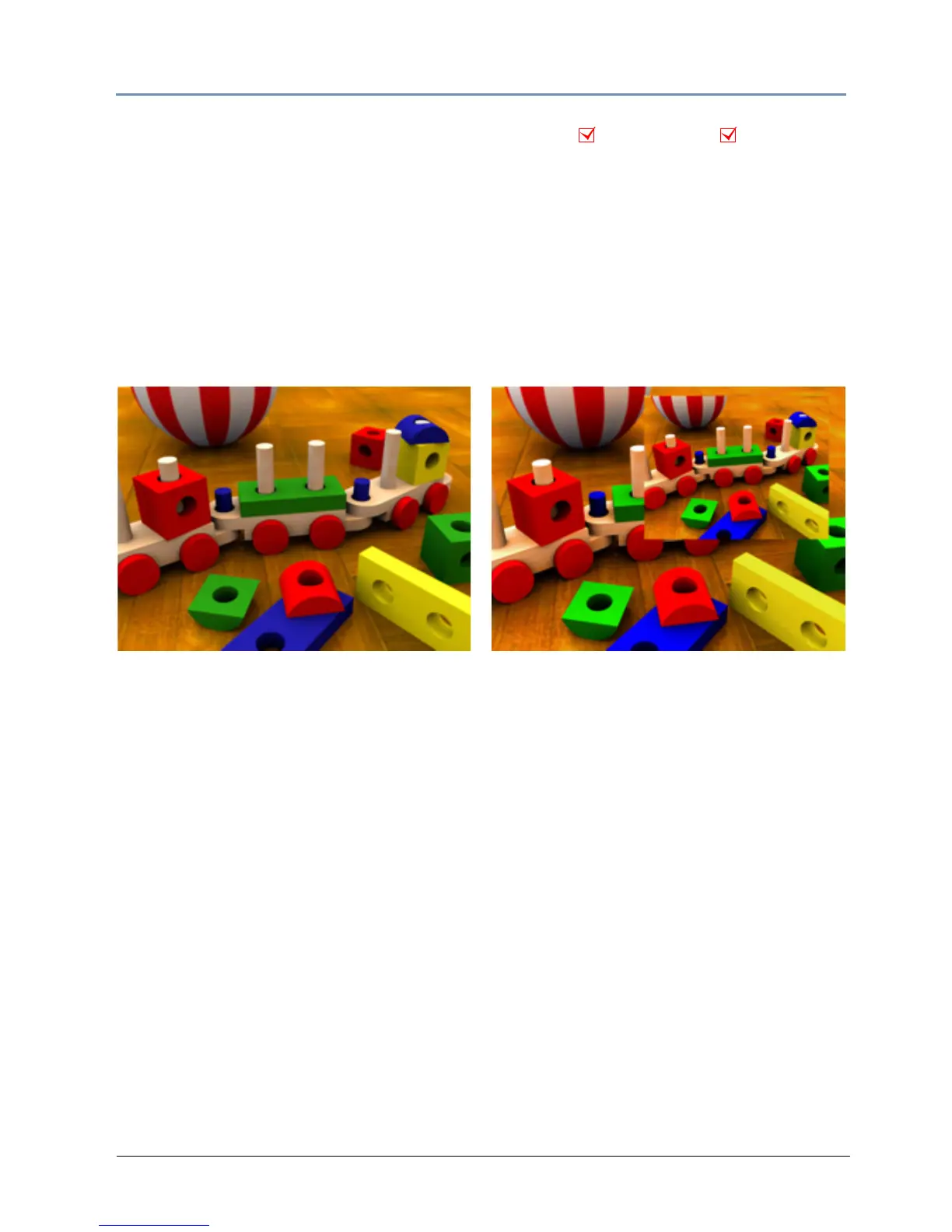

This effects creates a window in the image containing a scaled down version of the same image
and then lets you position it anywhere on the output plane.
Modifier 1: Controls the horizontal position of the subpi
cture’s centerpoint from 0=left edge to
255 (100%) = right edge of output.
Modifier 2: Controls the vertical position
of the subpicture’s centerpoint from 0=top edge to
255 (100%) = bottom edge of output.
Modifier 3: Controls the size of the picture from 0=smallest to 255 (100%) = largest.
Object Effect Global Effect
Original Content
Modifier parameter 1 DMX value = 176
Modifier parameter 2 DMX value = 76
Modifier parameter 3 DMX value =133
