High End Systems DL.3 - Edge Detect Black and White 2

CHAPTER 13
Effect Mode Options Descriptions
DL.3 Digital Light User Manual 159
Edge Detect Black and White 2
Effect Mode parameter DMX value = 92
This effect displays only the edges of image components as either black or white.
Modifier 1: Adjusts sample distance from 0= no adjustment to 255 (100%) = maximum
adju
stment.
Modifier 2: Adjust
s comparison edge threshold from 0= no adjustment to 255 (100%) = max-
imum adjustment:
Modifier 3: Sets the detected edge
scaler, 0 - 127 = white edge on black background, 128-255
= black edge on white background.

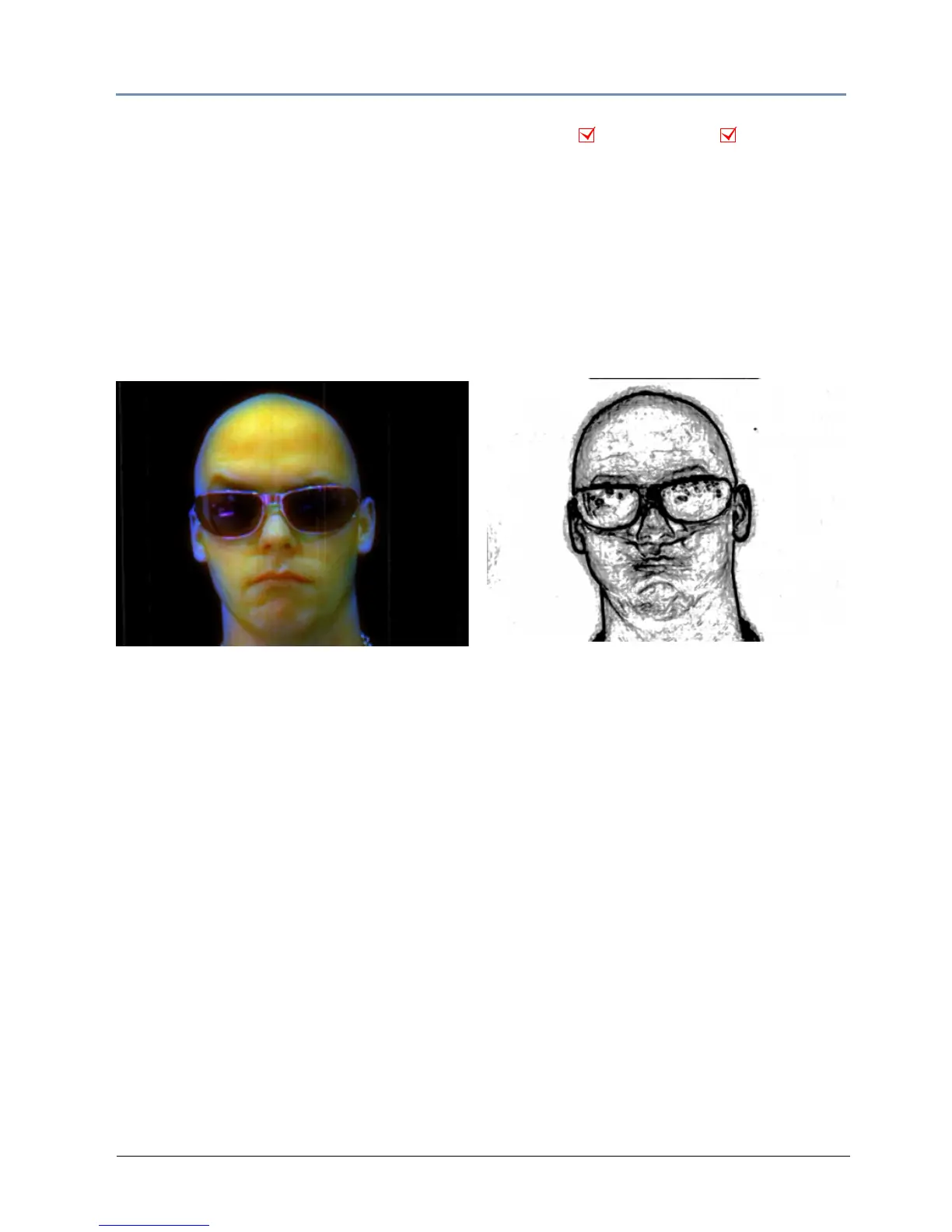

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX value = 155
Modifier 2 parameter DMX value = 40
Modifier 3 parameter DMX value = 129
