Effect Mode Options Descriptions
212 DL.3 Digital Light User Manual
Magnifying Lens 2
Effect Mode parameter DMX value = 37
This effect applies spherical overla
y that magnifies a portion of the texture to create a doubled
virtual convex lens over a portion of the image. You can adjust the size of the lens and move it
over different areas of the image.
Modifier 1: Controls the horizontal position of the lens’ centerpoint from 0=left edge to 255
(100%) = right edge of output.
Modifier 2: Controls the vertical position of the len
s’ centerpoint from 0=top edge to 255
(100%) = bottom edge of output.
Modifier 3: Controls the size of the lens from 0
=smallest to 255 (100%) = largest.
Tip: Zooming in with this lens effect
creates an additional effect.

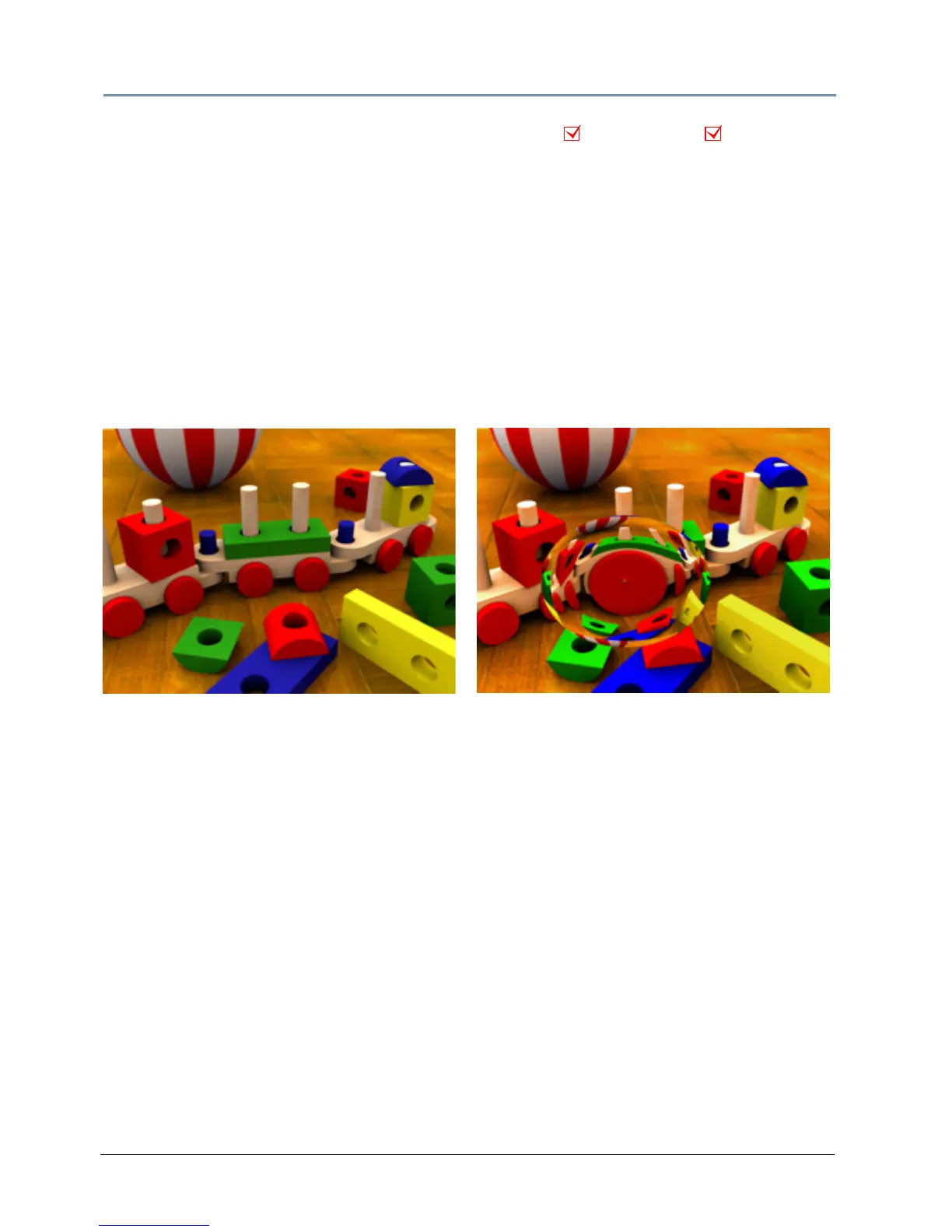

Object Effect Global Effect
Original Content Modifier 1 parameter DMX = 107
Modifier 2 parameter DMX = 143
Modifier 3 parameter DMX = 61
