Mask Edge Fade
The Mask Edge Fade parameter operates differently depending on the value of the Mask
Select parameter.
Default DMX Value: 0 = no adjustment to mask
When the Mask
Select parameter value = 0 to 127 (49%), Mask Edge Fade adjusts the
amount of fading from a DMX value of 0 = no edge fade to 255 (100%)= maximum edge fade.
When the Mask
Select parameter value =128 (50%) to 255 (100%), the strobing masks are
selected and Mask Edge Fade adjusts the speed of the strobing from minimum at a DMX value
= 0 to a maximum strobe speed at a DMX value = 255 (100%),
NOTE: A Global Effect Mode parameter option lets you define a Mask Edge
Fade color, (see page 167).

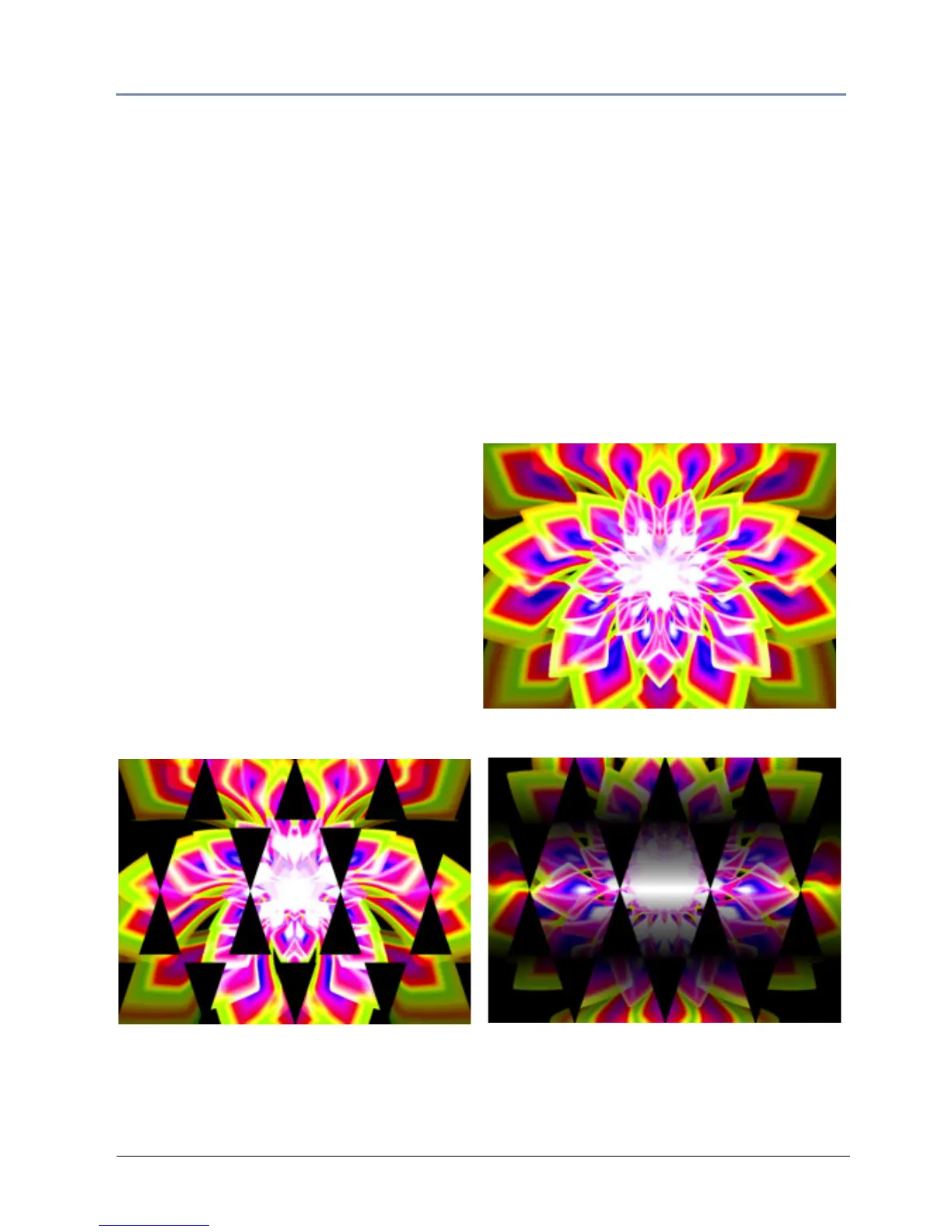

Mask applied without Edge Fade
Mask with Edge Fade applied
Original Image
