Effect Mode Options Descriptions
196 DL.3 Digital Light User Manual
Drop Shadow
Effect Mode parameter DMX value = 58
This effect creates a black pl
ane behind the selected media file texture on a flat rectangular
object. You can bring the plane from behind positioning it to form a drop shadow. You won’t see
the shadow until you select a Modifier 1 or 2 DMX value above or below 128 (50%).
Modifier 1: The default DMX value of 128 (50%) = no adjustment. Values below the midpoint
move the “shadow” right as you approach 0 = maximum horizontal shadow width. Values above
the midpoint move the “shadow” left to a maximum horizontal shadow width at a value of 255
(100%)
Modifier 2: The default DMX value of 128 (50%) = no adjustmen
t. Values below the midpoint
move the “shadow” down as you approach 0 = maximum vertical shadow width. Values above
the midpoint move the “shadow” up to a maximum vertical shadow width at a value of 255
(100%)
Modifier 3: Adjusts the shadow’s opacity from 0 = f
ull opacity to 255 (100%) = maximum
transparency.
Tip: To ensure that the shadow remains black and is unaffected by other gr
aphic effects, apply
it as the last effect selected for an image.
NOTE: This effect is also available as a Visual Mode adjusted with 2 Modifier
parameters, (see Drop Shadow on
page 88).

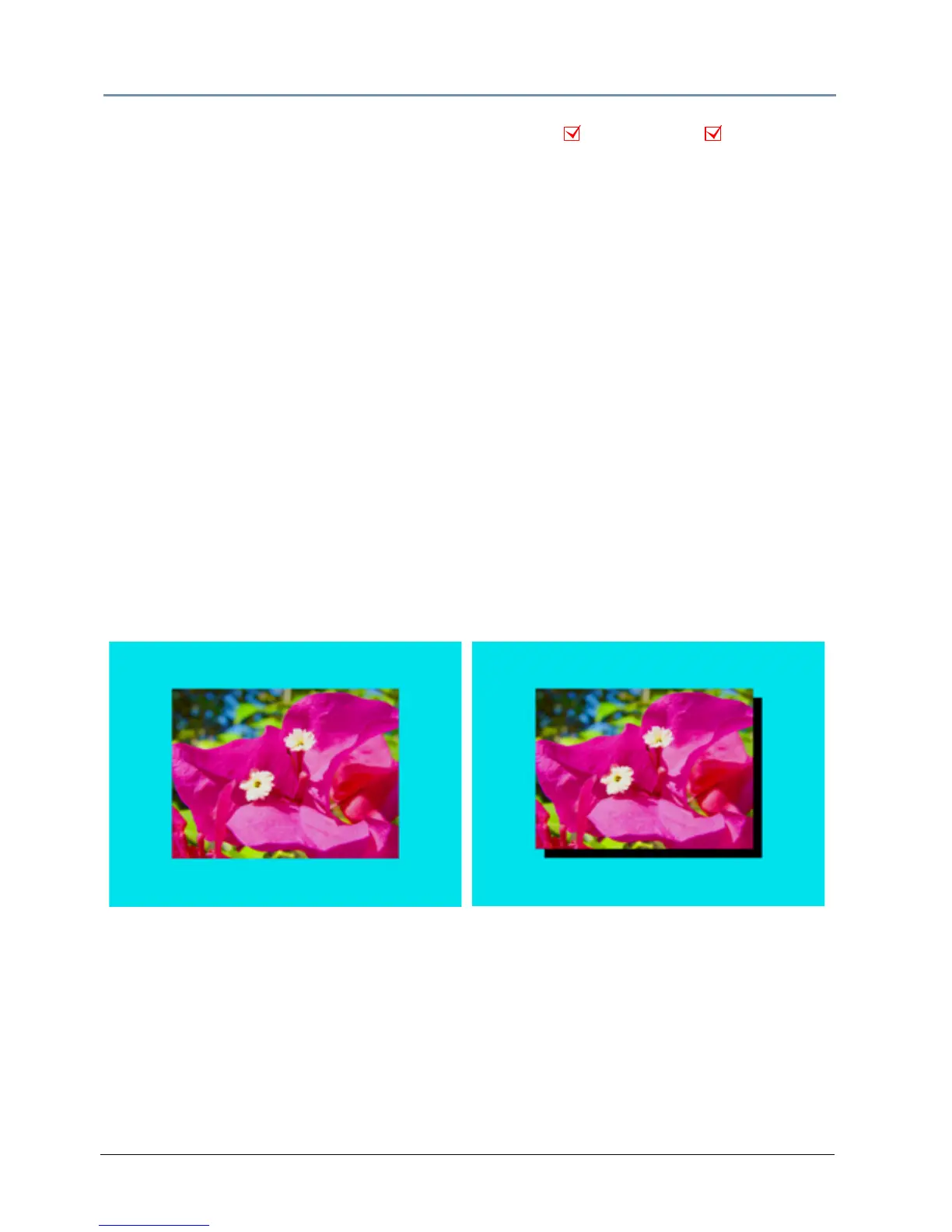

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX value = 0
Modifier 2 parameter DMX value = 255
Modifier 3 parameter DMX value = 0
