CHAPTER 13
Effect Mode Options Descriptions
210 DL.3 Digital Light User Manual
Lens Grid
Effect Mode parameter DMX value = 91
This effect lets you view the image th
rough a grid of virtual convex lenses. You can adjust the
number, magnification and edge shading of the lenses over the image.
Modifier 1: Controls the horizontal position of the lens’ centerpoint from 0 = left edge to 255
(1
00%) = right edge of output.
Modifier 2: Controls the edge shading.
Modifier 3: Controls the number of the lens from DMX values of 0 = many to 255 (100%) =
si
ngle lens.

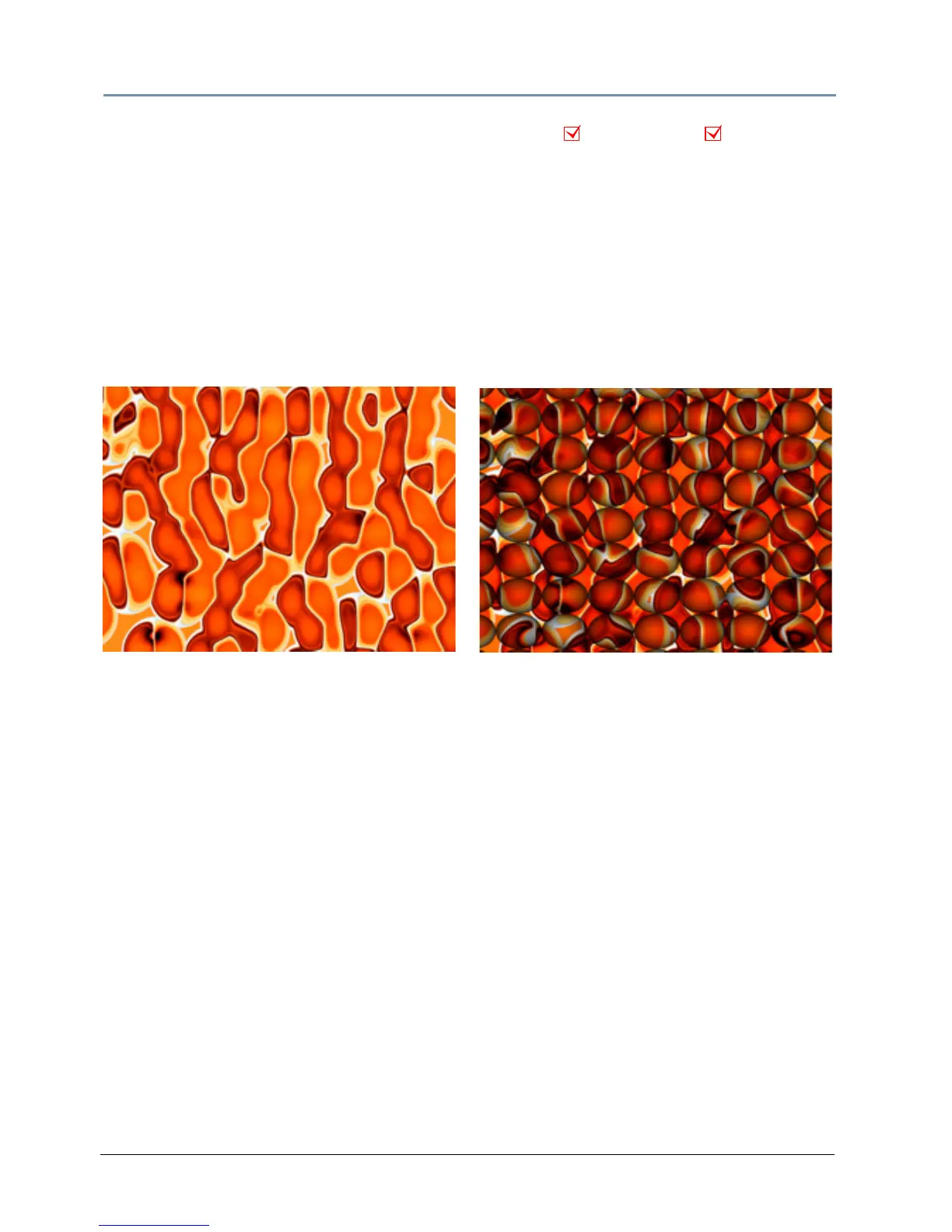

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 12
Modifier 2 parameter DMX = 112
Modifier 3 parameter DMX = 33
