CHAPTER 13
Effect Mode Options Descriptions
DL.3 Digital Light User Manual 195
Downward Vertical Streaks
Effect Mode parameter DMX value = 80
This effect lets you convert a portion of the image into vertical streaks. You can also rotate the
angle of the streak and fade from the original image to the image with the streak effect applied.
Modifier 1: At a DMX value of 0, there is no effect. I
ncreasing the DMX value sets the
length of the streak portion of the image from the bottom up to 255 (100%) = the full
image converted to streaks.
Modifier 2: The default DMX value of 128 (50%) = no adjust
ment. Values below the midpoint
move the edge of the streaked portion of the image clockwise as you approach 0 = 90°. Values
above the midpoint move the edge of the streaked portion of the image counterclockwise as you
approach 90° at a value of 255 (100%).
Modifier 3: When Modifier 1 has a DMX value > 0, Modifier 3 lets you fade from 0 = the
origi
nal image to 255 (100%) = the converted image.

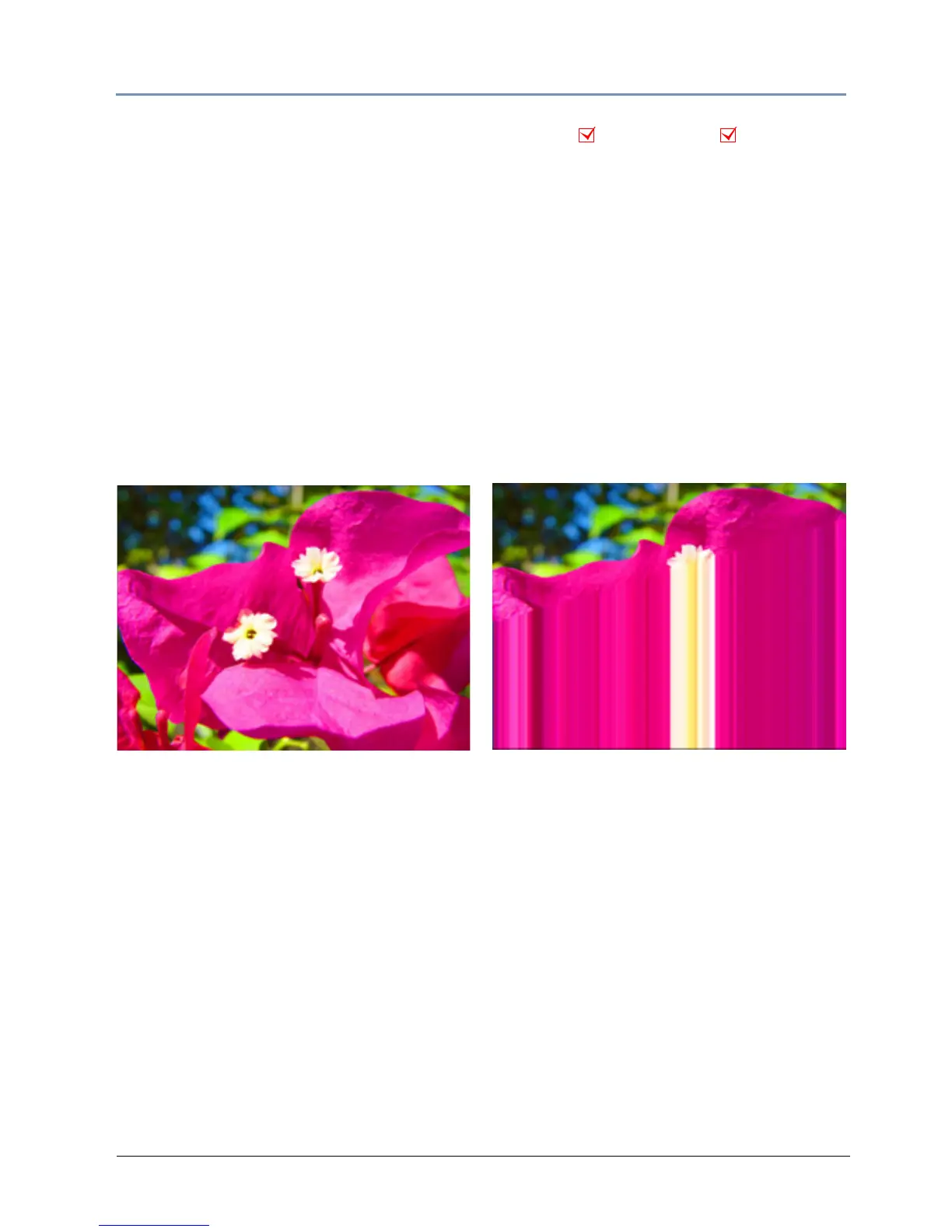

Object Effect Global Effect
Original content
Modifier 1 parameter DMX value = 170
Modifier 2 parameter DMX value = 158
Modifier 3 parameter DMX value = 255
