DMX and RS-485 Projector Link
Cables: Belden 9841 or equivalent (meets specifications for EIA RS-485 applications) with the
following characteristics:
• Two 4-conductor twisted pairs plus a shield
• Maximum capacitance between conductors: 30 pF/ft
• Maximum capacitance between conductor and shield: 55 pF/ft
• Maximum resistance: 20 Ohm/100 ft
• Nominal impedance: 100–140 Ohm
Connectors: Two 5-pin male and female XLR connectors:
•Pin 1 Ground
•Pin 2 Data–
•Pin 3 Data+
•Pin 4 Secondary data–
•Pin 5 Secondary data+
Terminator: 5-pin male XLR connector with a 120 Ohm terminating resistor fitted between
pins 2
and 3.
positive
(data true)*
negative
(data
complement)*
Common
(cable shield)

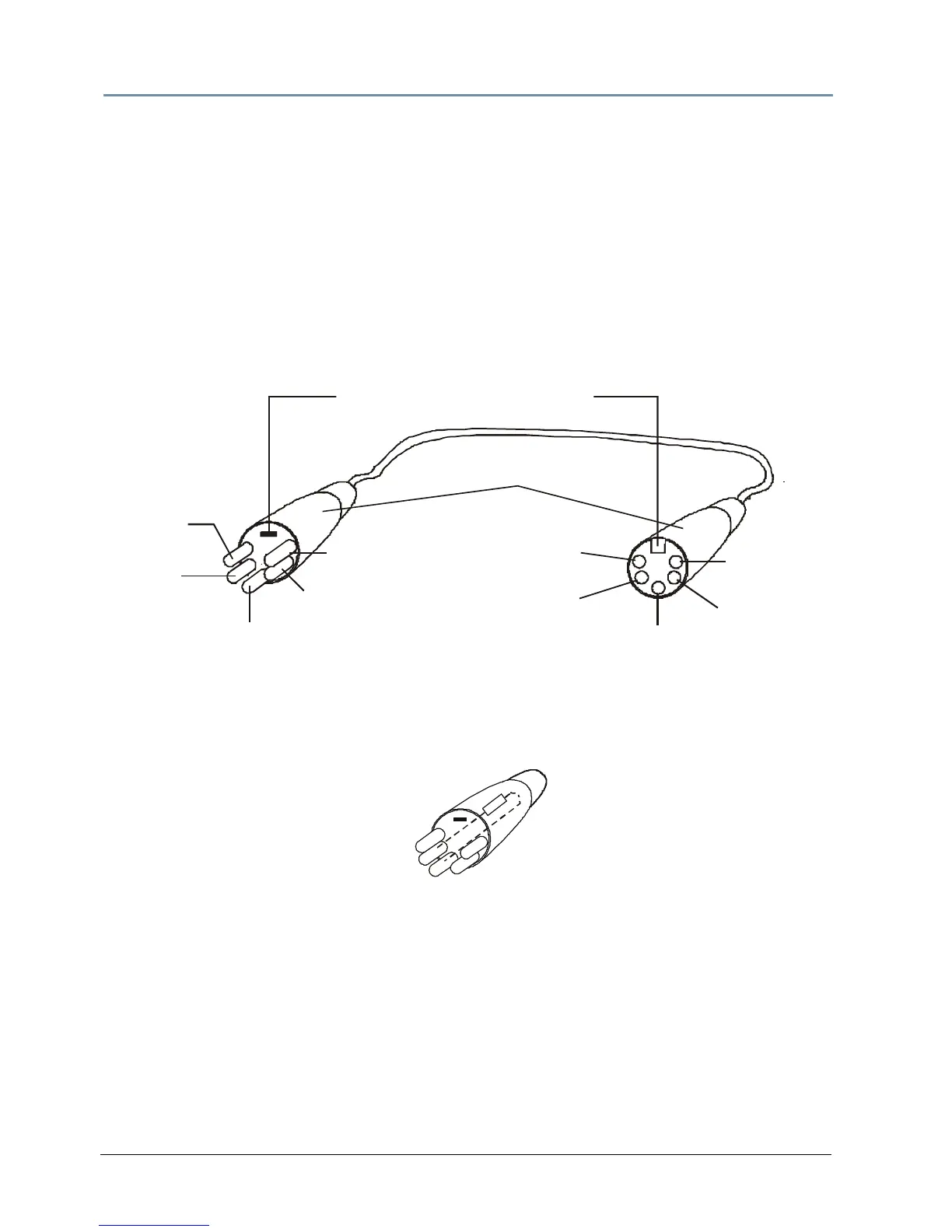

Male XLR Connector
Female XLR Connector
positive
(data true)
negative
(data
complement)
XLR shell
Common
(cable shield)
positive
(data true)*
negative
(data complement)*
negative
(data
complement)
positive
(data true)
*This data line is not used by the fixture, but allows data to pass through the fixture.
