Faux LED
Effect Mode parameter DMX value = 55
This effect divides the image into a grid of circles that mimic an LED wall. The color of the center
pixel in each cell defines the solid color for that circle. You can control “LED” size, background
and color peaking.
Modifier 1: Controls the “LED” size. The default DMX v
alue of 0 displays a 100 x 100 grid of
“LEDs”. Increasing the DMX value decreases the grid divisions to a minimum of 10 x 10 at a
value of 255 (100%).
NOTE: A small number of larger “LEDs” will also result in reduced color variation.
This effect is also available as a Visual
Mode adjusted with 2 Modifier
parameters, (see Faux LED o
n page 90).
Modifier 2: Adjusts the grid spacing and color around each “LED”. A DMX value of 0 = the min-
imum black line between cells. The spacing increases to a maximum at a DMX value of 127
(49%). At a value of 128 (50%), the space between cells reverts to the minimum spacing and
turns white. Increasing the value further increases the white spacing to a maximum at a DMX
value of 255 (100%).
Modifier 3: Adjusts the color peaking to simulate lighting at the “LED” center. A DMX value of 0
= no adju
stment and flat color across the cell. As you increase the DMX value, the peaking
increases to a maximum at 255 (100%).
Object Effect Global Effect

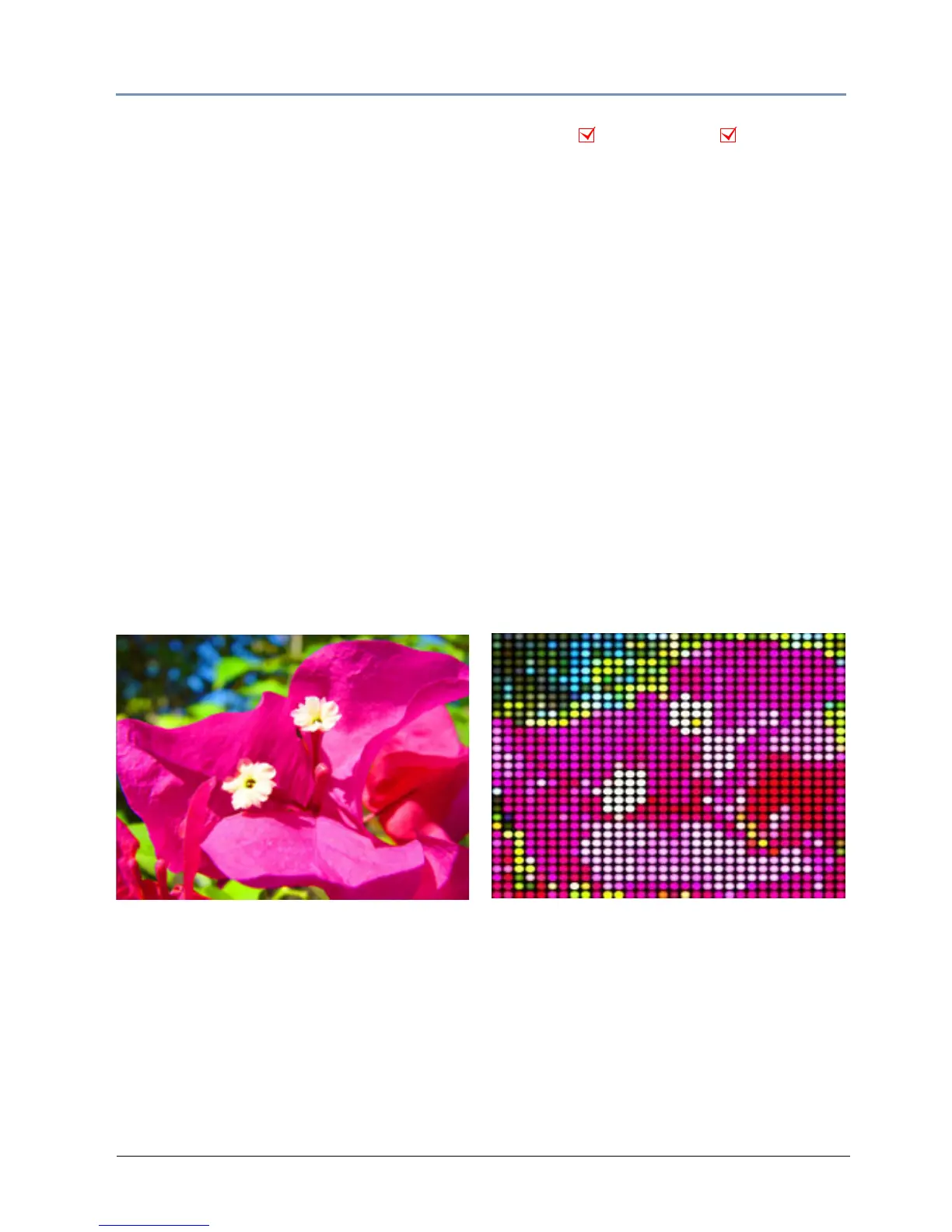

Original Content
Modifier 1 parameter DMX = 202
Modifier 2 parameter DMX = 16
Modifier 3 parameter DMX = 167
