CHAPTER 13
Effect Mode Options Descriptions
230 DL.3 Digital Light User Manual
Slats
Vertical Slats
Effect Mode parameter DMX value = 62
Horizontal Slats
Effect Mode parameter DMX value = 63
These effects render the image in offset slats.
Modifier 1: Adjusts the number of slats from
from a DMX v
alue of 0 = no slate to 255 = the
maximum number of slats.
Modifier 2: Adjusts the displacement of the
sl
ats from a DMX value of 0 = no displacement
to 255 = image completely removed from
screen.
Modifier 3: When the DMX value for Modifier 1 >0, Modifier 3 fades from the original image to
t
he slatted image. A DMX value of 0 = the original image with no effect applied. Increasing the
value fades to the slatted image with 255 = the slatted image at full opacity.

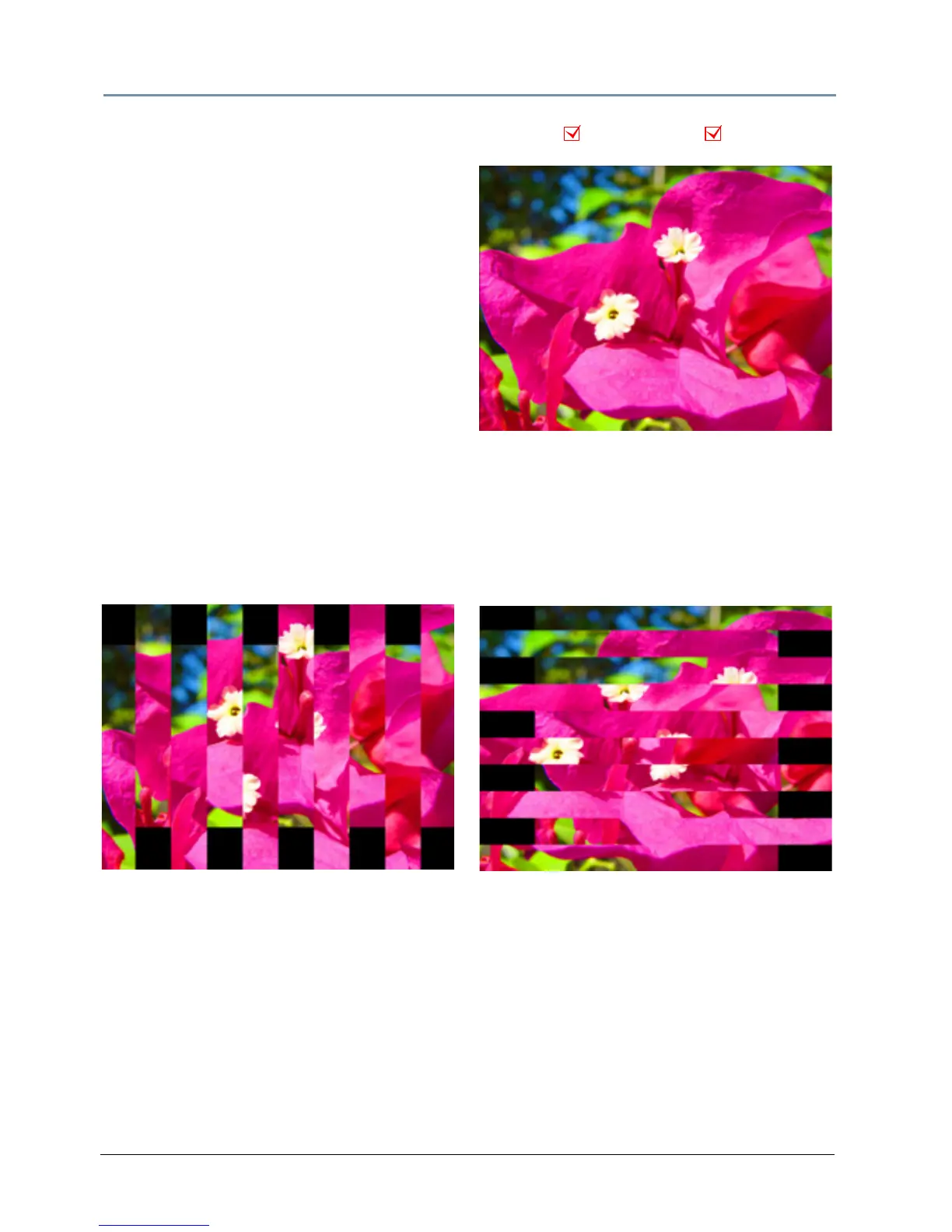

Object Effect Global Effect
Original Content
Effect Mode parameter DMX value = 63
Modifier 1 parameter DMX = 204
Modifier 2 parameter DMX =40
Modifier 3 parameter DMX = 255
Effect Mode parameter DMX = 62
Modifier 1 parameter DMX = 204
Modifier 2 parameter DMX =40
Modifier 3 parameter DMX = 255
Vertical Slat Option Horizontal Slat Option
