HS Effect Mode Options
These Object and Global effects map the media file to an HSI color space. This makes it easier
to isolate a specific feature in an image such as an individual flower in a landscape.
HS to Gray
Effect Mode parameter DMX value = 87
This effect Maps a selected color coordinate to
an HSI color space and turns everything else
gray.
Modifier 1: Adjusts the Hue color
component
from 0 = no adjustment to 255 (100%) =
maximum red saturation.
Modifier 2: Adjusts the Satur
ation color
component from 0 = no adjustment to 255
(100%) = maximum green saturation.
Modifier 3: Adjusts the color tolerance from 0
= mi
nimum to 255 (100%) = maximum
.

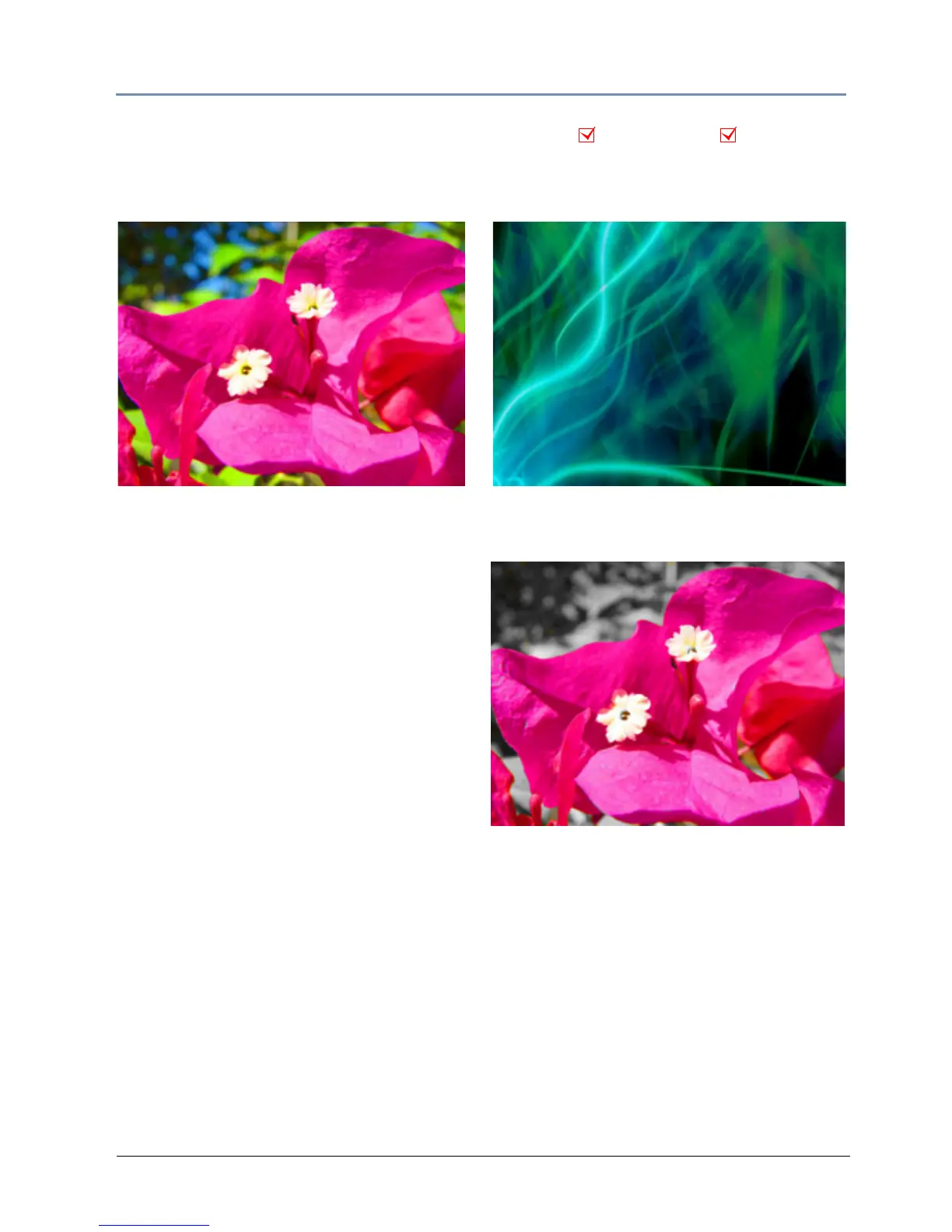

Object Effect Global Effect
Object 1 Content
Object 2 Background Content
Effect Mode parameter = 87
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 0
Modifier 3 parameter DMX = 222
