CHAPTER 13
Effect Mode Options Descriptions
164 DL.3 Digital Light User Manual
HS Selected to Transparent
Effect Mode parameter DMX value = 89
Maps a selected color coordinate to a HSI color
space an
d turns it transparent and shows
graphic objects “behind” it. Everything else is
unchanged.
Modifier 1: Adjusts the Hue
color component
from 0 = no adjustment to 255 (100%) =
maximum red saturation.
Modifier 2: Adjusts the Satur
ation color
component from 0 = no adjustment to 255
(100%) = maximum green saturation.
Modifier 3: Adjusts the color tolerance from 0
= mi
nimum to 255 (100%) = maximum
HS to Transparent
Effect Mode parameter DMX value = 88
Maps a selected color coordinate to a HSI color
s
pace and turns everything else transparent and
shows graphic objects “behind” it.
Modifier 1: Adjusts the Hue
color component
from 0 = no adjustment to 255 (100%) =
maximum red saturation.
Modifier 2: Adjusts the Satur
ation color
component from 0 = no adjustment to 255
(100%) = maximum green saturation.
Modifier 3: Adjusts the color tolerance from 0
= mi
nimum to 255 (100%) = maximum

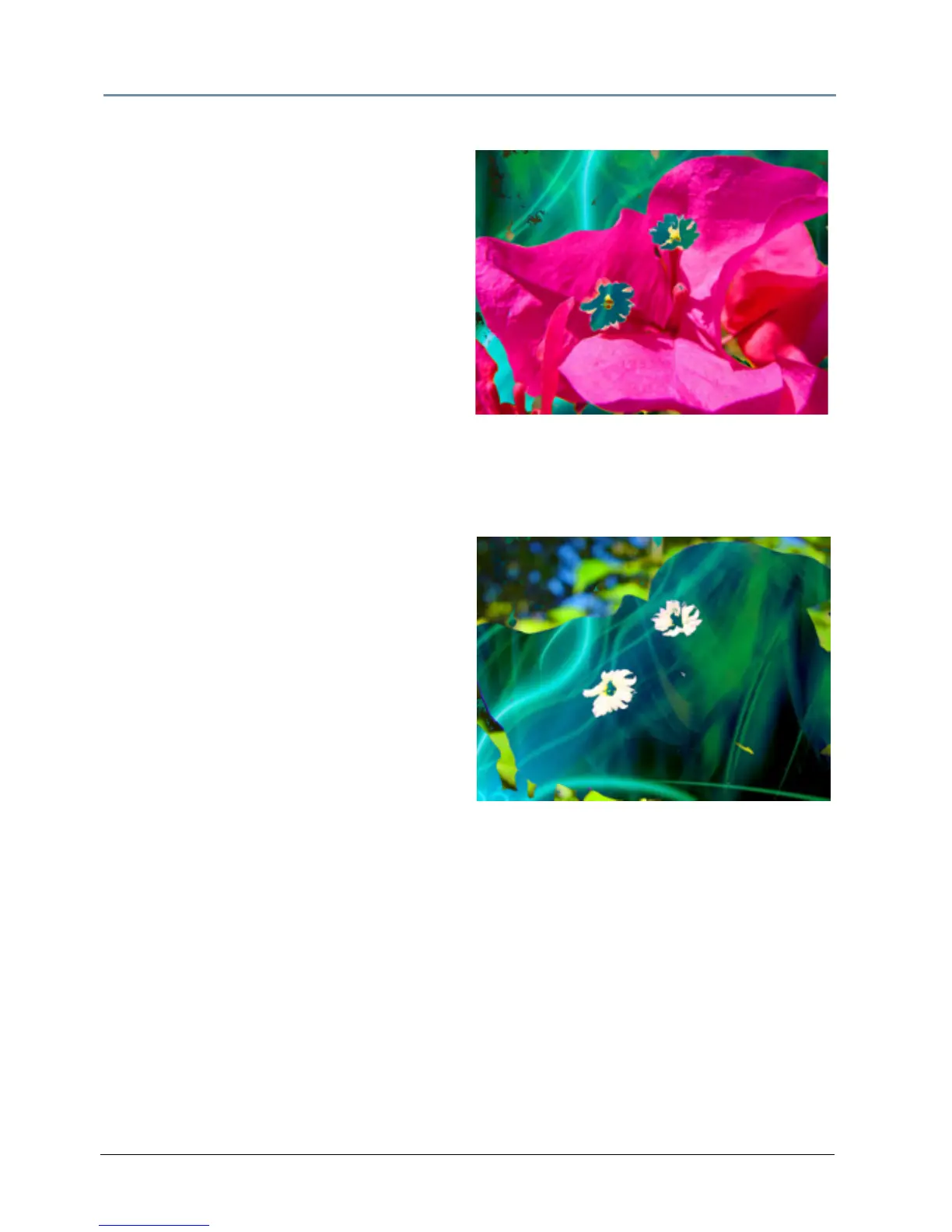

Effect Mode Parameter = 89
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 38
Modifier 3
p
arameter DMX = 255
Effect Mode Parameter = 88
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 38
Modifier 3 parameter DMX = 255
