CHAPTER 16
Content Management Application (CMA)
258 DL.3 Digital Light User Manual

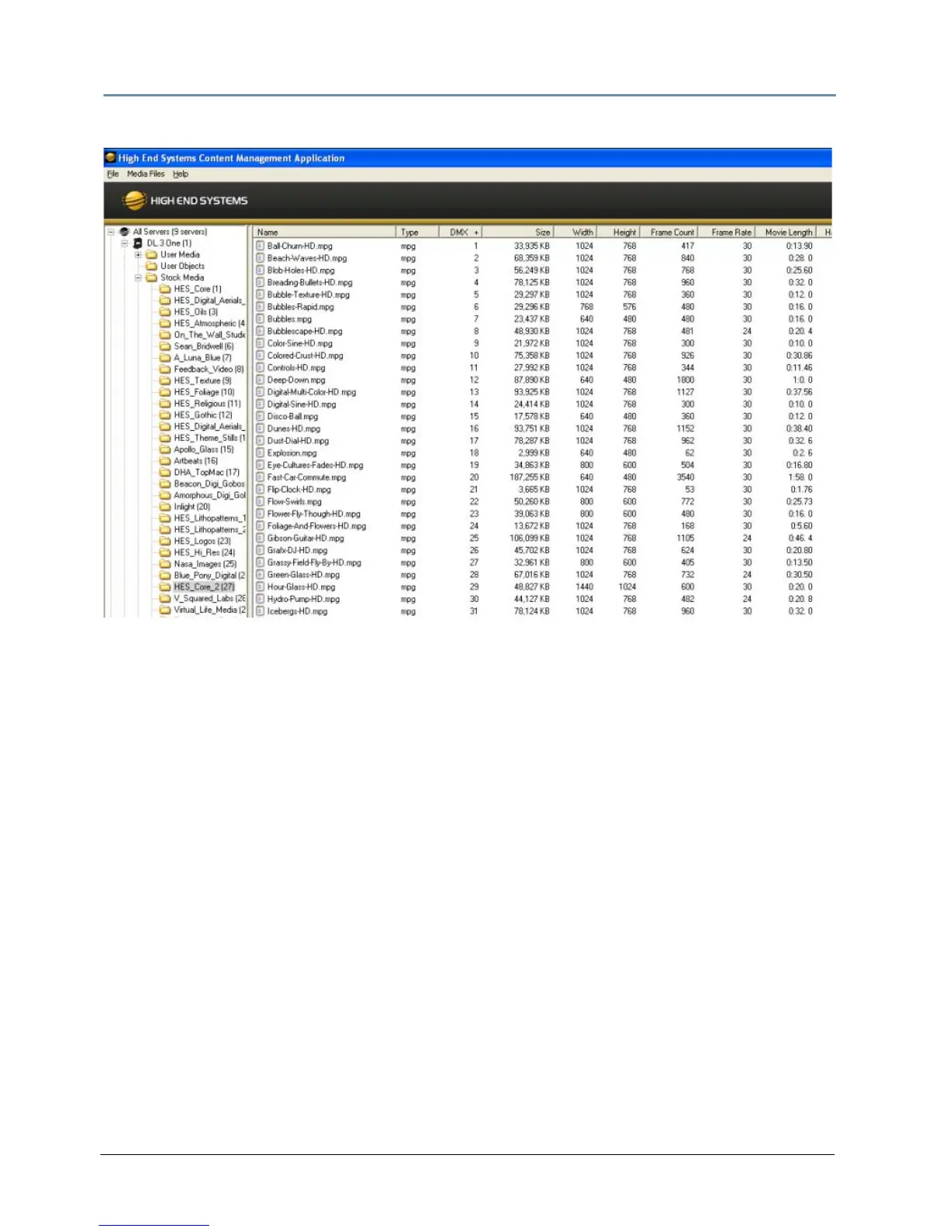

The stock media files provided by High End Systems have been compressed and optimized for
reliable and smooth playback from DL.3, DL.2 and Axon media servers. Each file and folder has
an associated DMX value. These values are fixed for Stock Content but must be assigned for all
user created content. See
Assigning DMX Values to User Content on page
262 for more
information.
Object Files
Object files are the 3-D object component files used to build a graphic image. DL.3, DL.2 and
Axon protocol supports a combined total of 255 object files displayed in Stock Objects and
User Objects folders. As with Stock Media files, the Stock Objects have a fixed DMX value
and cannot be edited. A user-created object file must be assigned a unique DMX value between
150-255.
