UV Effect Mode Options
These Object and Global effects map the media file to an YUV color space. This makes it easier
to isolate a specific feature in an image such as an individual flower in a landscape.
UV to Gray
Effect Mode parameter DMX value = 84
Maps a selected color coordinate to a YUV color
spac
e and turns everything else gray.
Modifier 1: Adjusts the U color component
from 0
= no adjustment to 255 (100%) =
maximum red saturation.
Modifier 2: Adjusts the V color component
from 0
= no adjustment to 255 (100%) =
maximum green saturation.
Modifier 3: Adjusts the color tolerance from 0
= mi
nimum to 255 (100%) = maximum.

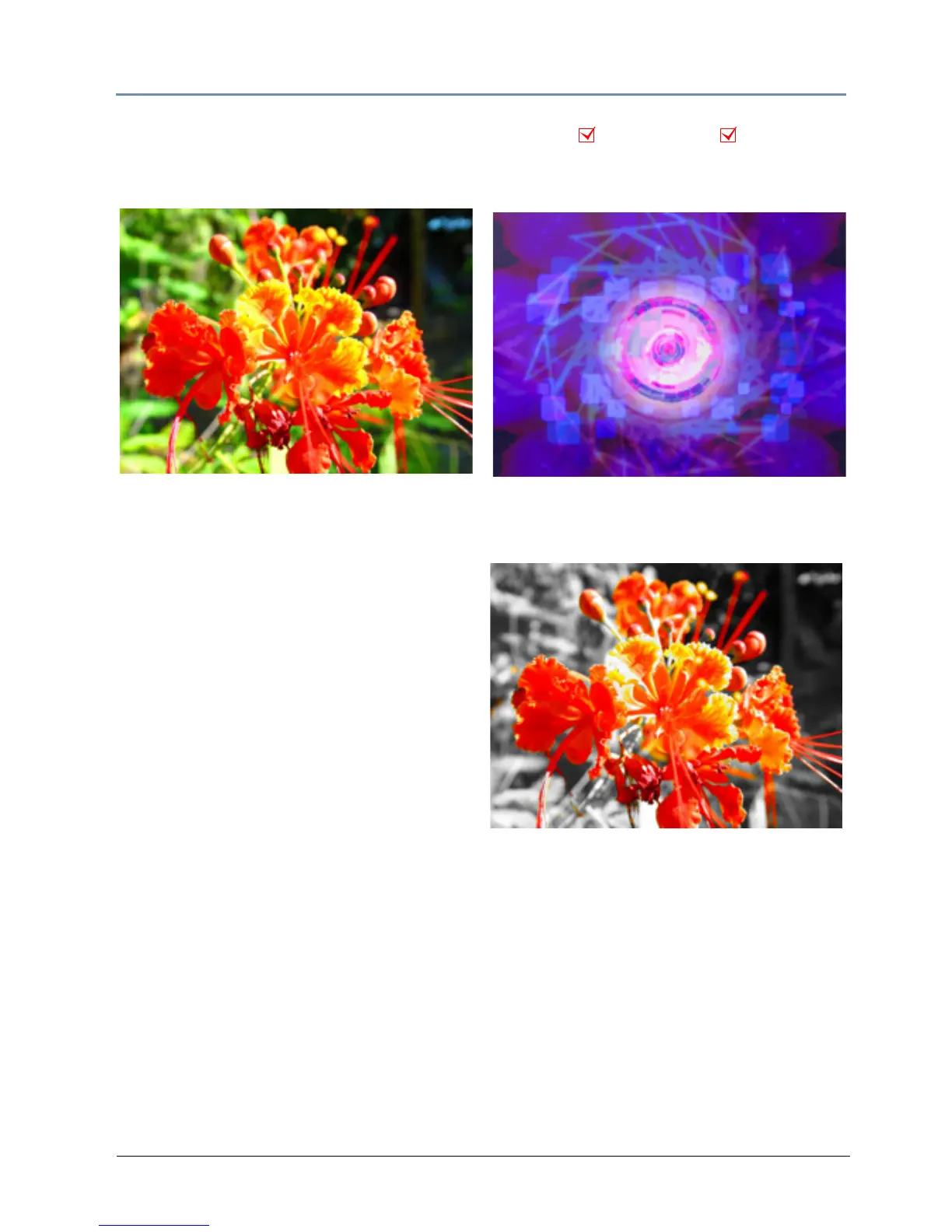

Object Effect Global Effect
Graphic Object 1 Content
Graphic Object 2 Background Content
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 229
Modifier 3 parameter DMX = 101
