Magnifying Lens
Effect Mode parameter DMX value = 36

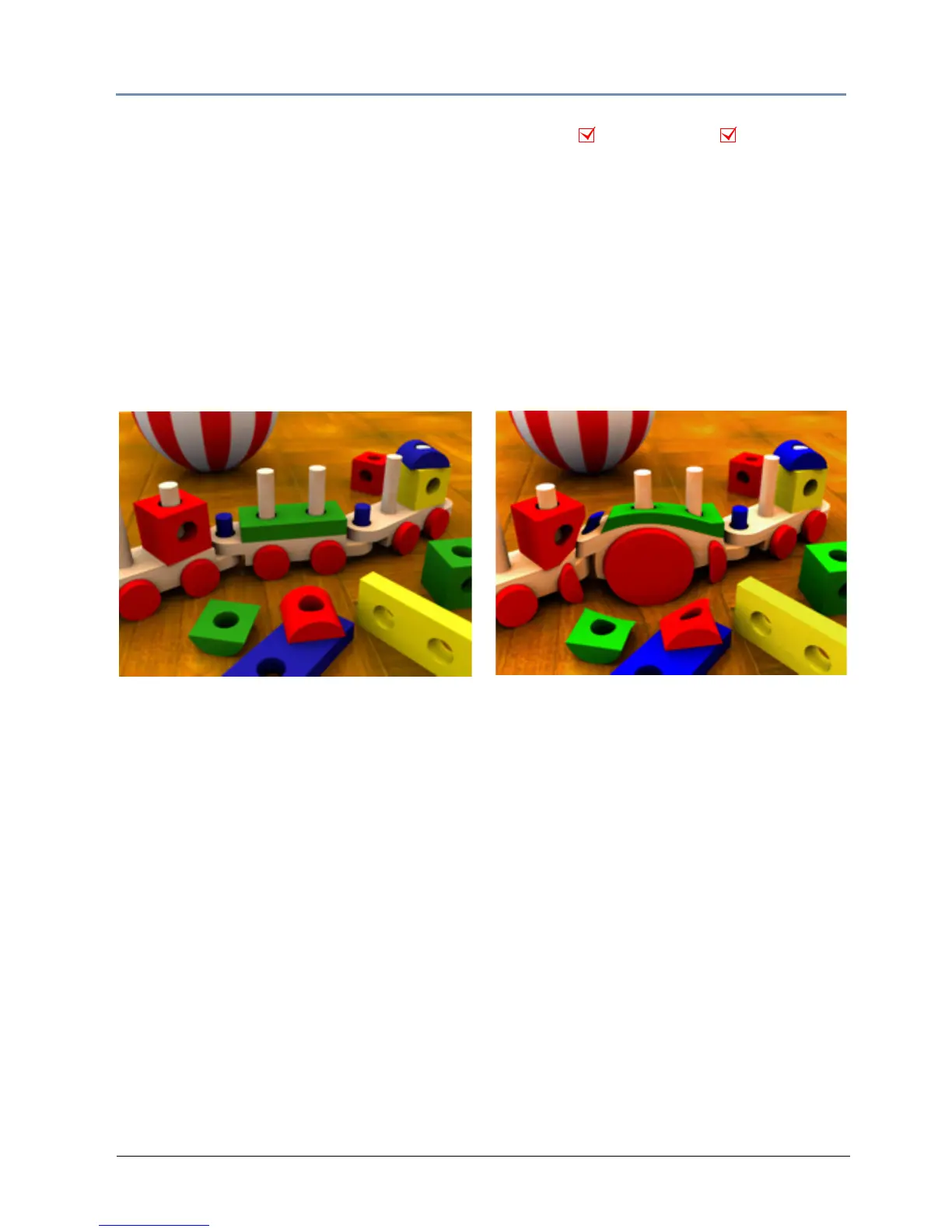

This effect applies spherical overlay that magnifies a portion of the texture to create a virtual
convex lens effect over a portion of the image. You can adjust the size of the lens and move it
over different areas of the image.
Modifier 1: Controls the horizontal position of the lens’ centerpoint from 0
= left edge to 255
(100%) = right edge of output.
Modifier 2: Controls the vertical position
of the lens’ centerpoint from 0 = top edge to 255
(100%) = bottom edge of output.
Modifier 3: Controls the size of the lens from 0 = sma
llest to 255 (100%) = largest.
Object Effect Global Effect
Original Content Modifier 1 parameter DMX = 107
Modifier 2 parameter DMX = 143
Modifier 3 parameter DMX = 61
