Effect Mode Options Descriptions
148 DL.3 Digital Light User Manual
Effect Mode Color Options
All or Nothing
Effect Mode parameter DMX value = 15
This effect reduces all color values to ful
l saturation or no color based on comparison to a set
threshold. This effect creates an image with fully saturated color.
Modifier 1: Compares the red component of a pixel to the th
reshold value and converts it to full
color if it is greater than the threshold and to black if it is below the threshold.
Modifier 2: Compares the green component of a pixel to
the threshold value and converts it to
full color if it is greater than the threshold and to black if it is below the threshold.
Modifier 3: Compares the blue component of a pixel to the threshol
d value and converts it to
full color if it is greater than the threshold and to black if it is below the threshold.
Object Effect Global Effect

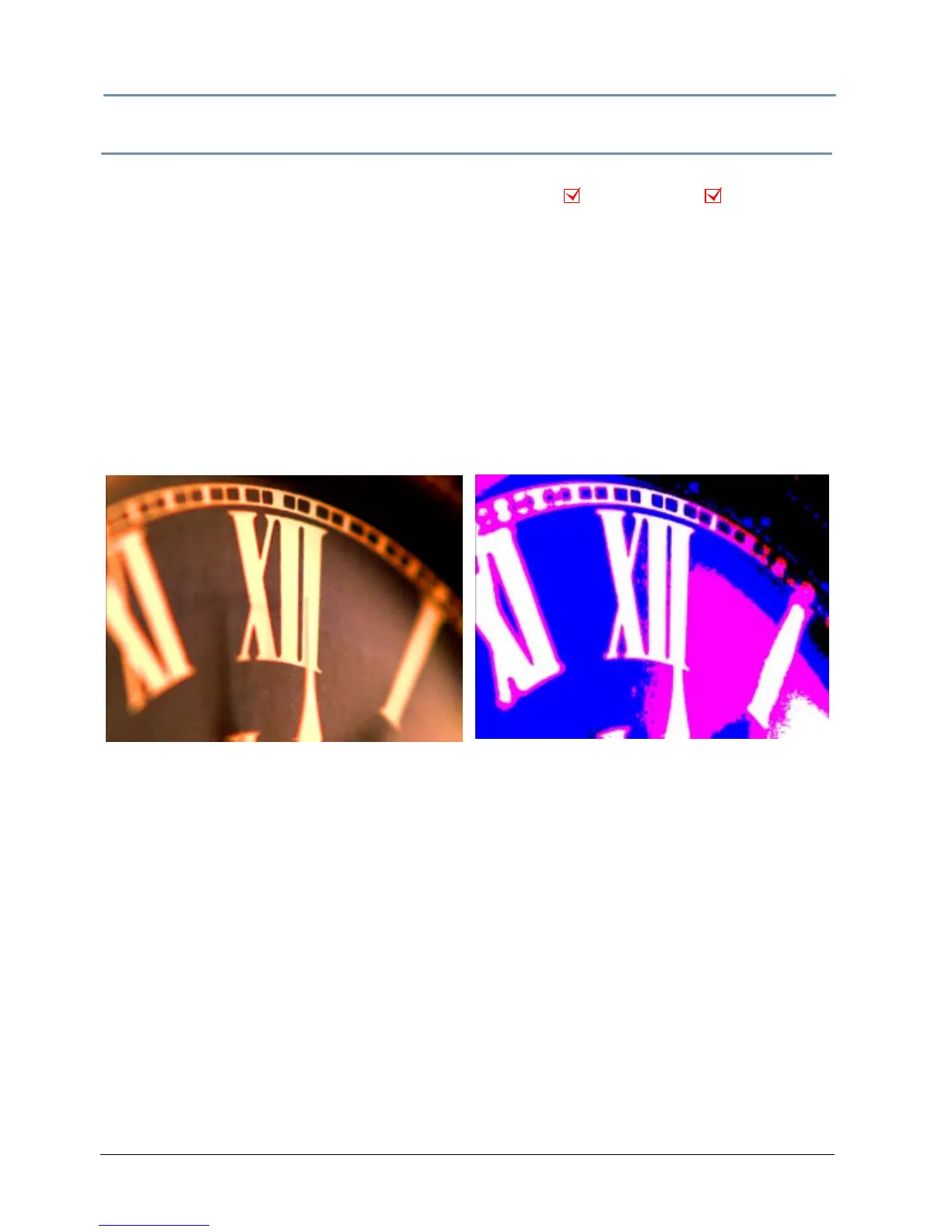

Original Content
Modifier 1 parameter DMX = 125
Modifier 2 parameter DMX = 140
Modifier 3 parameter DMX = 10
