Yxy Luminance Scaling
Effect Mode parameter DMX value = 101
Mapping the image to a Luminance Chrominance color space allows brightness adjustment with
out changing image color.
Modifier 1: Scales luminance. Values below the midpo
int decrease luminance from 127 to 0 =
black. Settings above the midpoint increase luminance from 128 to 255 (100%) = white. A DMX
value of 64 allows you to view the image at a minimum luminance.
Modifier 2: Scales the x chrominance component. The default DMX value of 128 (50%) = no
adjus
tment. Values below the midpoint scale the x chrominance component down as you
approach 0 = minimum. Values above the midpoint up to a maximum. at a value of 255 (100%)
Modifier 3: Scales the y chrominance component. The default DMX value of 128 (50%) = no
adjus
tment. Values below the midpoint scale the y chrominance component down as you
approach 0 = minimum. Values above the midpoint scale the y chrominance component up to a
maximum at a value of 255 (100%).

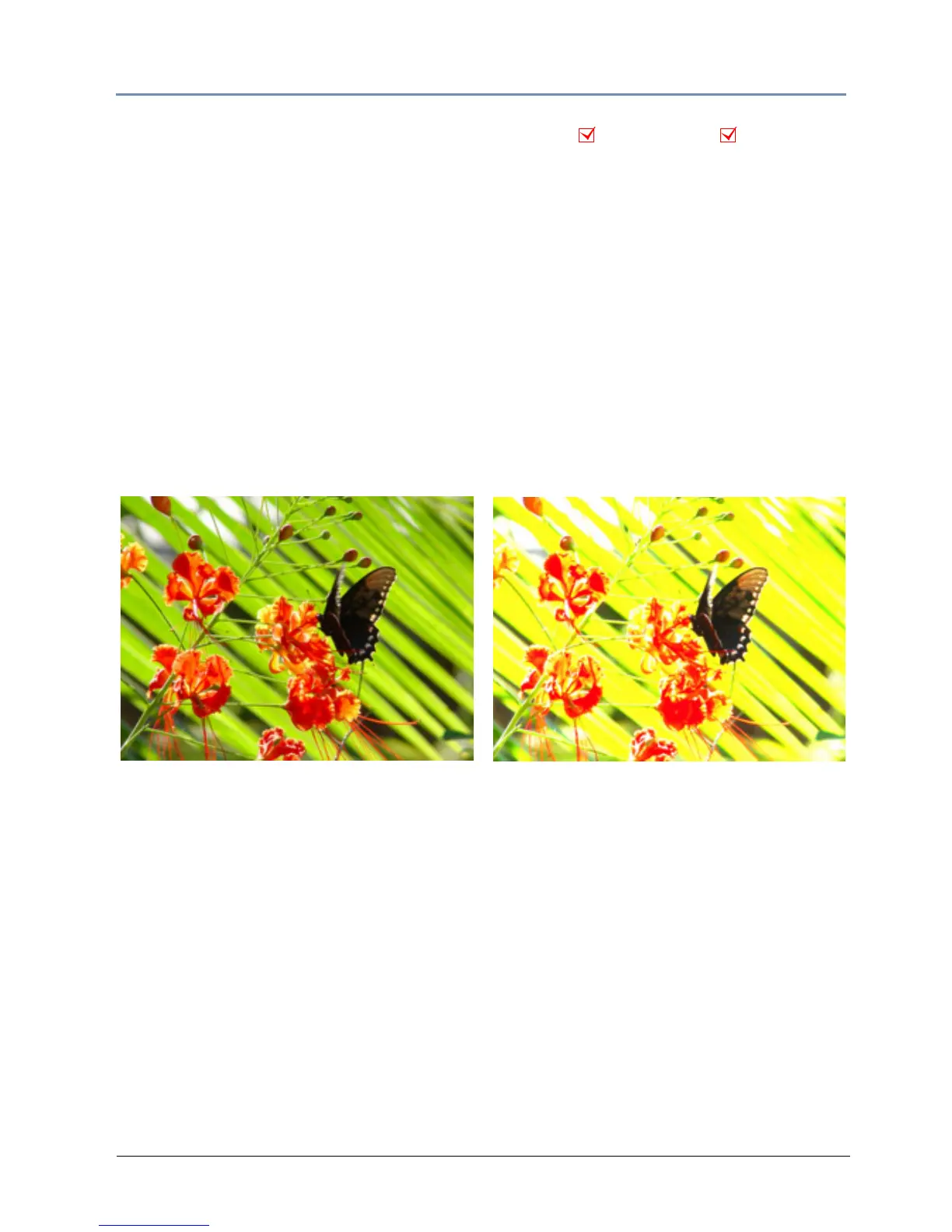

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 250
Modifier 2 parameter DMX = 128
Modifier 3 parameter DMX = 128
