Effect Mode Options Descriptions
186 DL.3 Digital Light User Manual
UV Selected to Transparent
Effect Mode parameter DMX value = 86
Maps a selected color coordinate to a YUV color
space an
d turns it transparent. Everything else
is unchanged.
Modifier 1: Adjusts the U color component from
0 = no adjust
ment to 255 (100%) = maximum
red saturation.
Modifier 2: Adjusts the V color component from
0 = no adjust
ment to 255 (100%) = maximum
green saturation.
Modifier 3: Adjusts the color tolerance from 0
= mi
nimum to 255 (100%) = maximum.
UV to Transparent
Effect Mode parameter DMX value = 85
Maps a selected color coordinate to a YUV color
space an
d turns everything else transparent.
Modifier 1: Adjusts the U color component from
0 = no adjust
ment to 255 (100%) = maximum
red saturation.
Modifier 2: Adjusts the V color component from
0 = no adjust
ment to 255 (100%) = maximum
green saturation.
Modifier 3: Adjusts the color tolerance from 0
= mi
nimum to 255 (100%) = maximum.

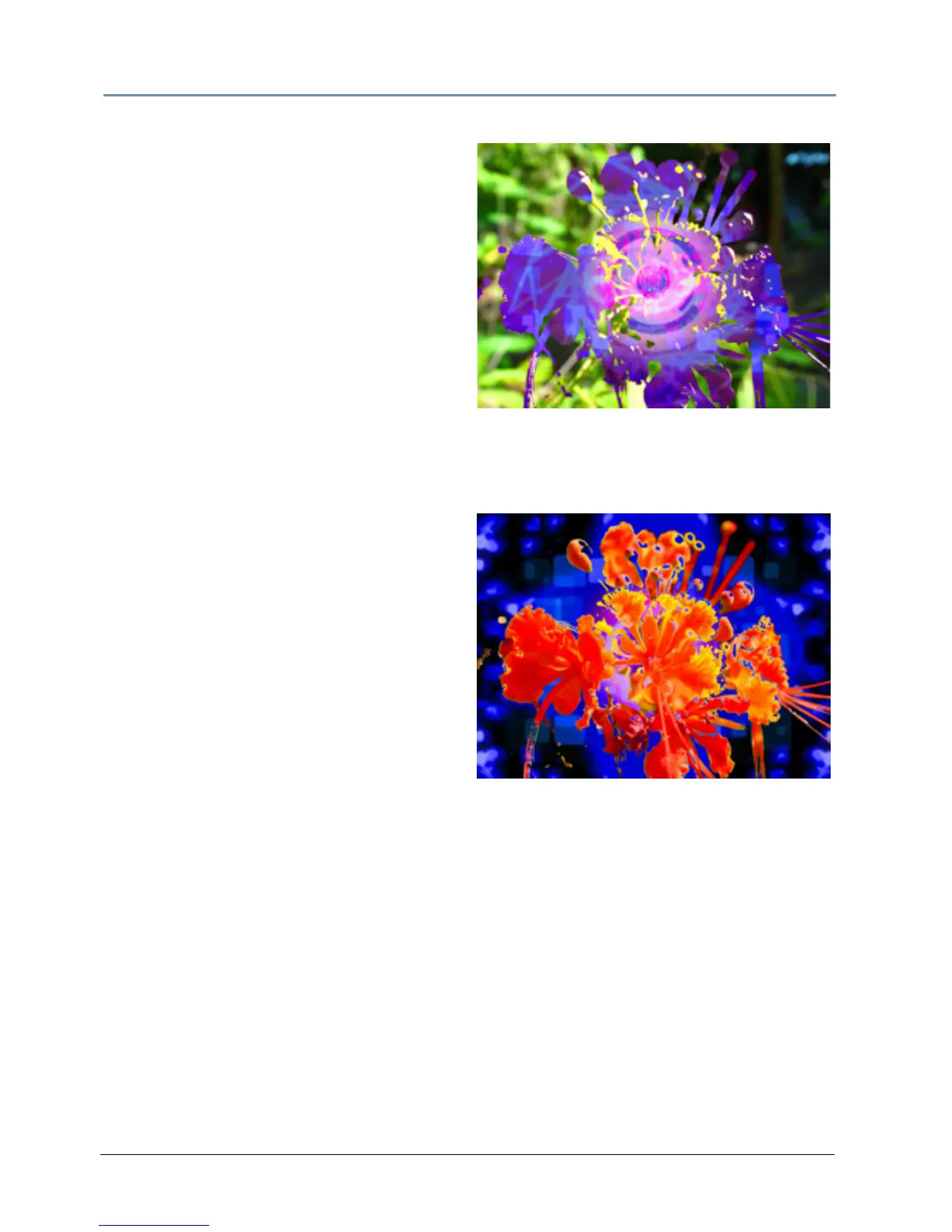

Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 229
Modifier 3 parameter DMX = 101
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 229
Modifier 3 parameter DMX = 101
