High End Systems DL.3 - RGB Scale; RGB Swap to BGR

CHAPTER 13
Effect Mode Options Descriptions
DL.3 Digital Light User Manual 173
RGB Scale
Effect Mode parameter DMX value = 47
Reduce and increase color components in the image as a part of the overall color range.
NOTE: the maximum of Mod1, Mod2 and Mod3 sets overall color range.
Modifier 1: Scales Red in the Media file. A DMX Value of 128 = no adjustment. DMX values
below 128 (50%) reduce color value. DMX values over 128 increase color value.
Modifier 2: Scales Green in the Media file. A DMX Value of 128 = no adjustment. DMX values
bel
ow 128 (50%) reduce color value. DMX values over 128 increase color value.
Modifier 3: Scales Blue in the Media file. A DMX Val
ue of 128 = no adjustment. DMX values
below 128 (50%) reduce color value. DMX values over 128 increase color value.
RGB Swap to BGR
Effect Mode parameter DMX value = 41
This effect allows you to swap colors. All red v
alues become green and all blue values become
red. Green values are unaffected.
Modifier 1: Transitions red color component to blue from
0 = no color change to
255 (100%) = green
Modifier 2: No change to green color component
Modifier 3: Transitions blue color component to green from 0 = no color change to
255 (100%) = red

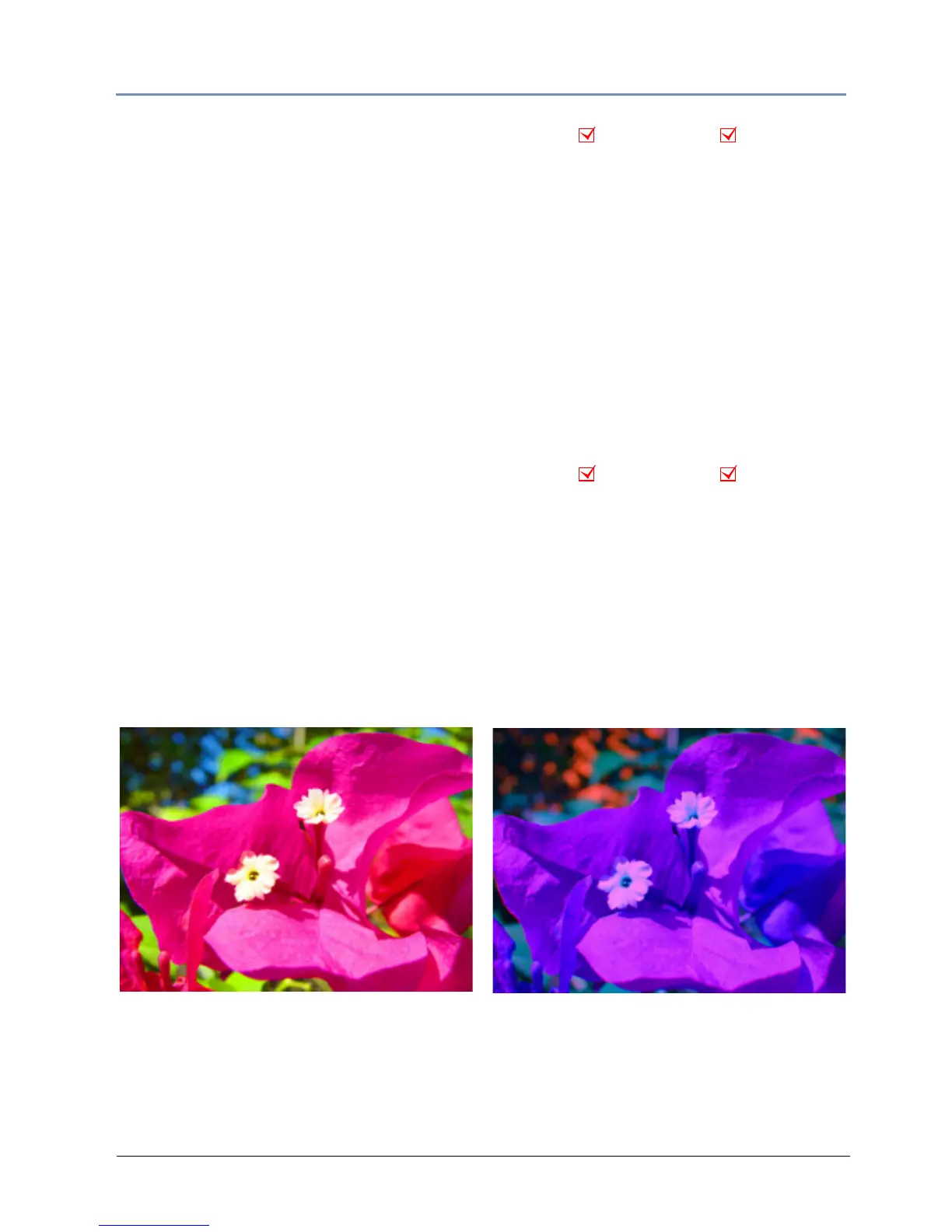

Object Effect Global Effect
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 192
Modifier 3 parameter DMX = 255
