Edge Detect Black and White
Effect Mode parameter DMX value = 21
This effect displays only the edges of image compo
nents. Edges appear white, everything else is
black.
Modifier 1: Adjusts horizontal edge search size from 0
= no adjustment to 255 (100%) =
maximum adjustment.
Modifier 2: Adjusts vertical edge search size from 0= no adjustment to 255 (100%) =
maxi
mum adjustment.
Modifier 3: Adjusts comparison edge threshold from 0= no adjustment to 255
(100%) =
maximum adjustment.

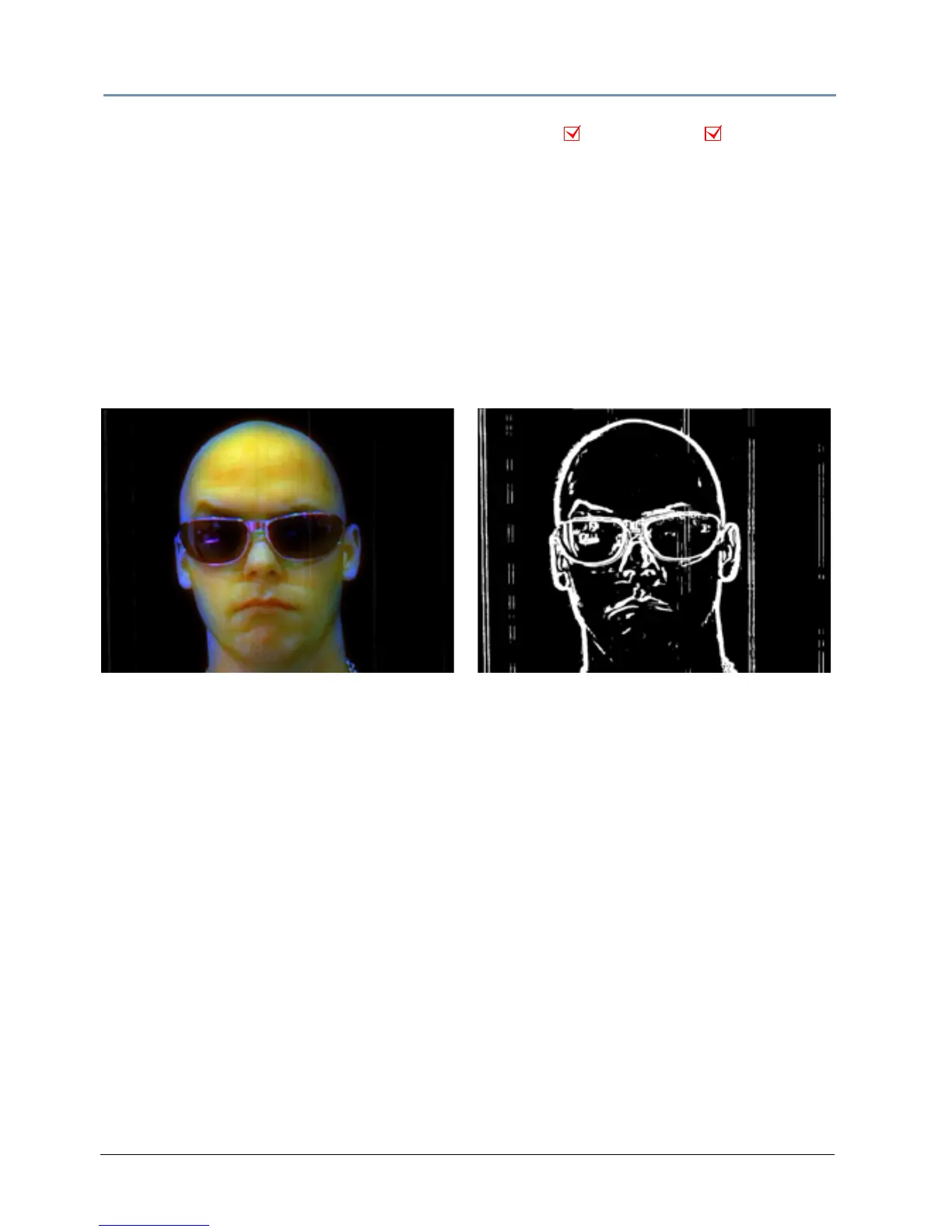

Object Effect Global Effect
Original Content Modifier 1 parameter DMX value = 184
Modifier 2 parameter DMX value = 114
Modifier 3 parameter DMX value = 62
