Chapter 17: LPC11U3x/2x/1x Windowed Watchdog Timer (WWDT)

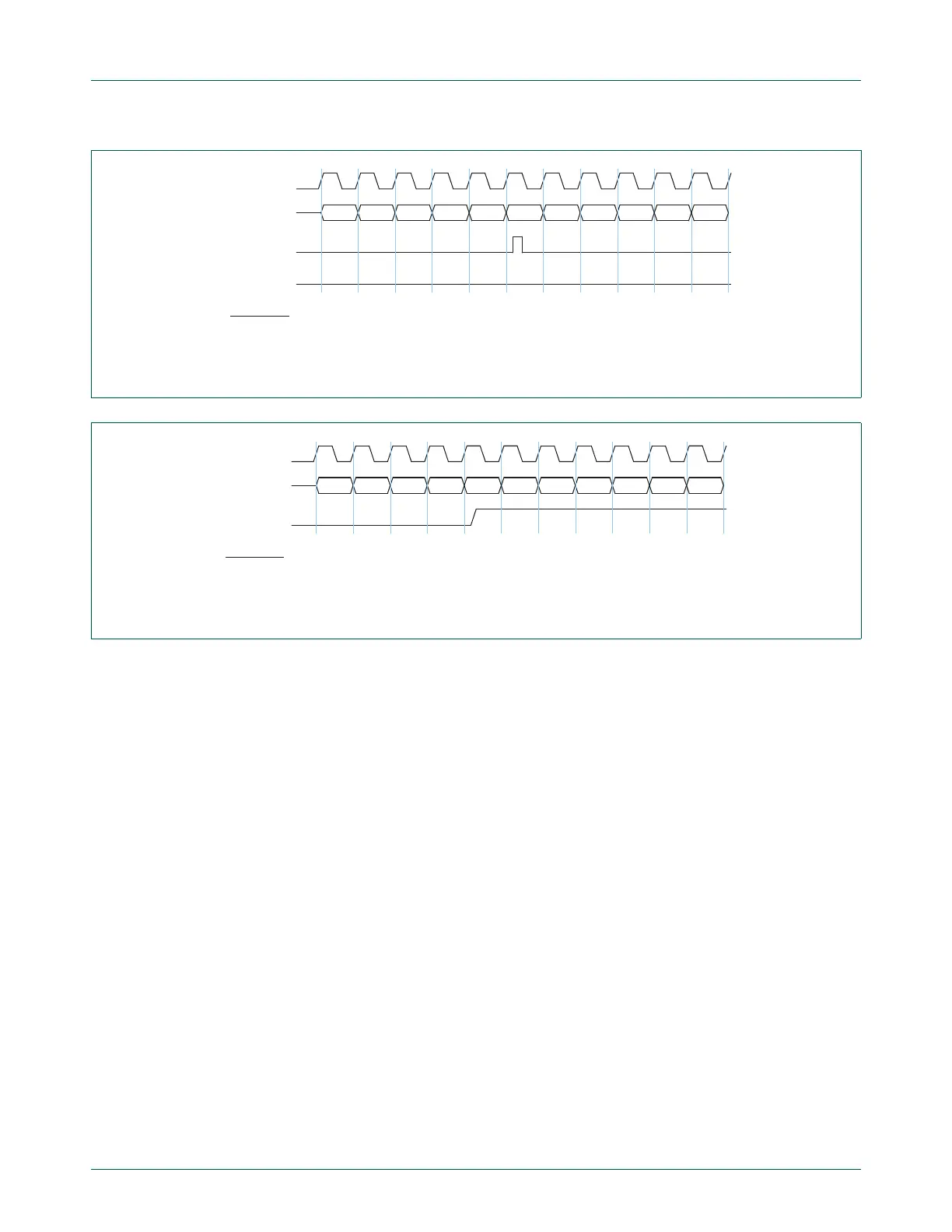

Fig 66. Correct Watchdog Feed with Windowed Mode Enabled

Correct Feed

Event

1201 11FF1200

WDCLK / 4

Watchdog

Counter

Watchdog

Reset

11FC11FD 2000 1FFE1FFF11FE 1FFD 1FFC

Conditions:

WDWINDOW = 0x1200

WDWARNINT = 0x3FF

WDTC = 0x2000

Fig 67. Watchdog Warning Interrupt

Watchdog

Interrupt

0403 04010402

WDCLK / 4

Watchdog

Counter

03FE03FF 03FD 03FB03FC0400 03FA 03F9

Conditions:

WINDOW = 0x1200

WARNINT = 0x3FF

TC = 0x2000
