User manual Rev. 5.5 — 21 December 2016 60 of 523

NXP Semiconductors

UM10462

Chapter 5: LPC11U3x/2x/1x Power profiles

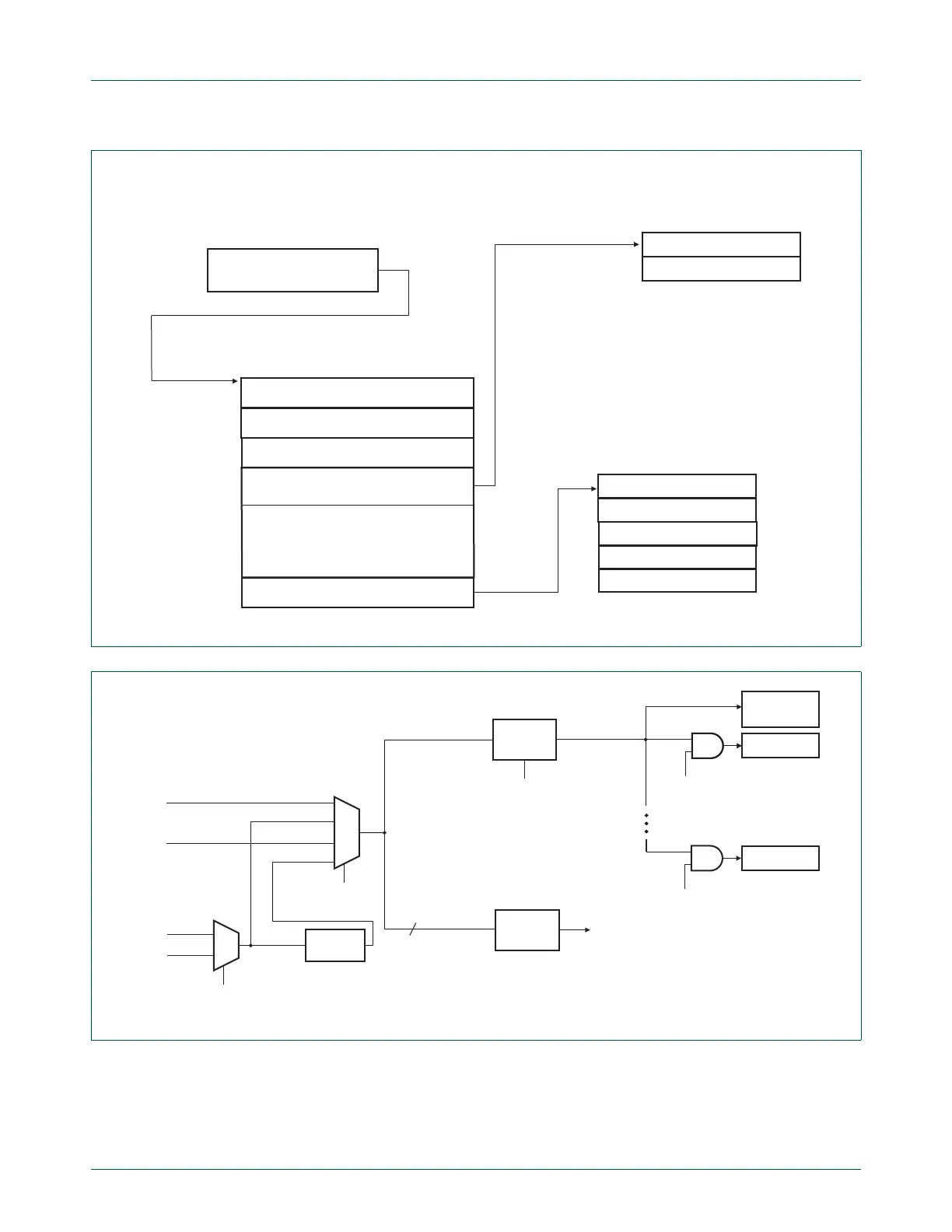

Fig 10. Power profiles pointer structure

Ptr to ROM Driver table

Ptr to Device Table 2

Ptr to Device Table 1

Ptr to Device Table 0

…

Ptr to Device Table n

set_pll

set_power

Ptr to Function 2

Ptr to Function 0

Ptr to Function 1

…

Ptr to Function n

Power API function table

Device n

ROM Driver Table

0x1FFF 1FF8

+0x0

+0x04

+0x08

+0x0C

Ptr to PowerAPI Table

Fig 11. LPC11U3x/2x/1x clock configuration for power API use

SYS PLL

irc_osc_clk

sys_osc_clk

irc_osc_clk

wdt_osc_clk

MAINCLKSEL

SYSPLLCLKSEL

CLOCK

DIVIDER

SYSAHBCLKCTRL[1]

(ROM enable)

SYSAHBCLKCTRL[27]

(USBRAM enable)

CLOCK

DIVIDER

Peripherals

main clock system clock

sys_pllclkin

sys_pllclkout

ARM

CORTEX-M0

ROM

USB RAM

SYSAHBCLKDIV
