Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-2
6.2 Part Names
6.2.1 Names and layout of parts
(1)
COVER(FRONT)ASSY-MW
(11)
STAY-REAR-FAN-MW
(2)
COVER(L)ASSY-MW
(12)
COVER(SIDE-L)-MW
(3)
COVER(Y-RAIL)-SL-MW
(13)
STAY(HANDLE-L)-MW
(4)
COVER(L)ASSY-MW
(14)
COVER(R-L)-MW
(5)
COVER(Y-RAIL)-SR-MW
(15)
COVER(PINCH-D)64-MW
(6)
COVER(Y-RAIL)-64-MW
(16)
COVER(SUBTANK)-MW
(7)
OP-PANEL-UNIT-MW
(17)
COVER(INKBOX-REAR)-MW
(8)
COVER(SIDE-R)-MW
(18)
CONTROLLER BOX
(9)
PG-DELIVERY(64)-UNIT-MW
(19)
POWER BOX
(10)
PAPER-GUIDE-FEEDING64(MW)

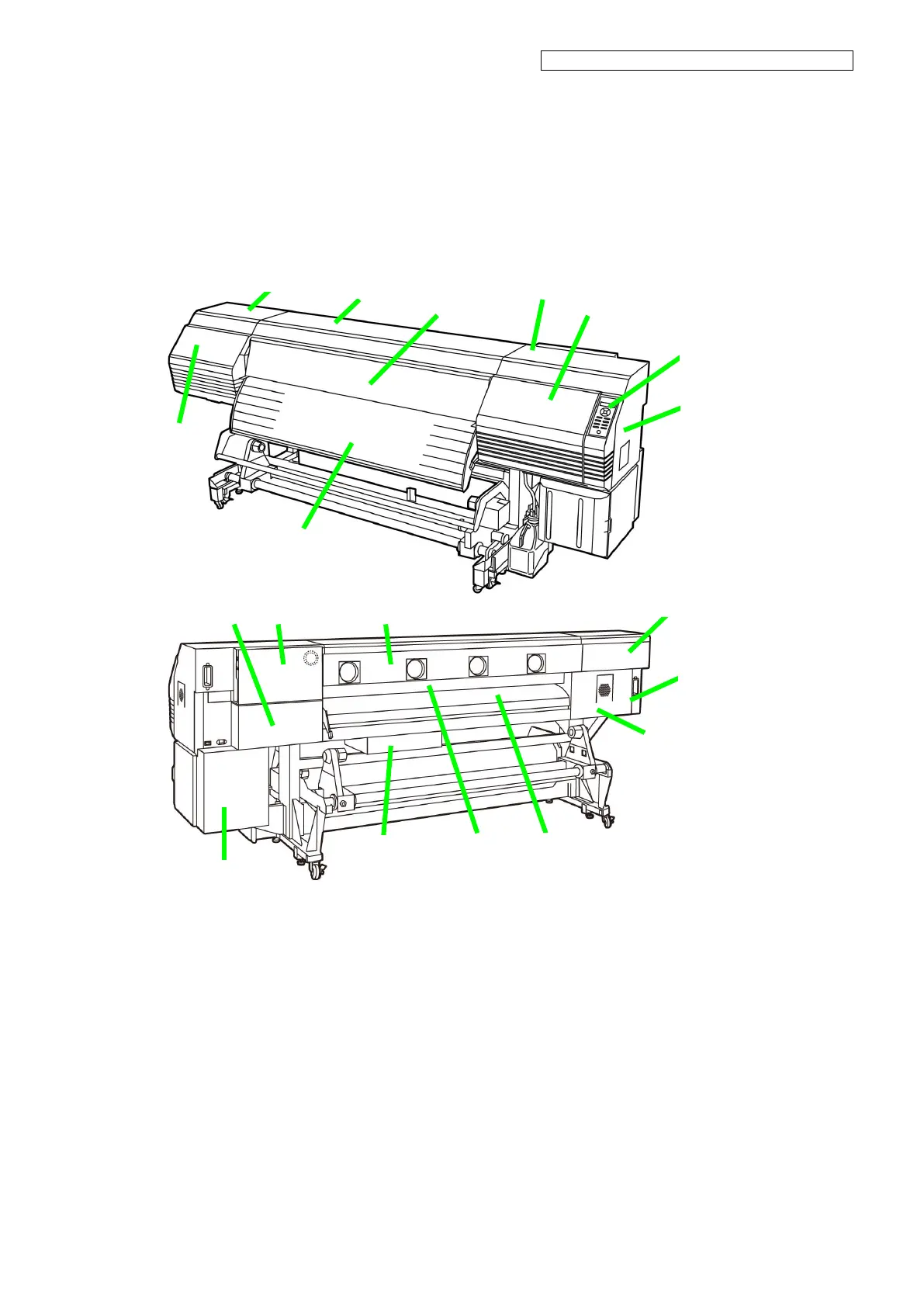

Figure 6.1 Name of each part of the printer exterior
(1)
(9)
(2)
(6)
(3)
(5)
(4)
(7)
(8)
(12)
(13)
(11)
(16)
(17)
(15)
(10)
(14)
(18)
(19)
