Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-106
6.11 Disassembling and Reassembling the
WASTE-BOTTLE-UNIT
6.11.1 WASTE INK BOTTLE TRAY AND TUBE, MW

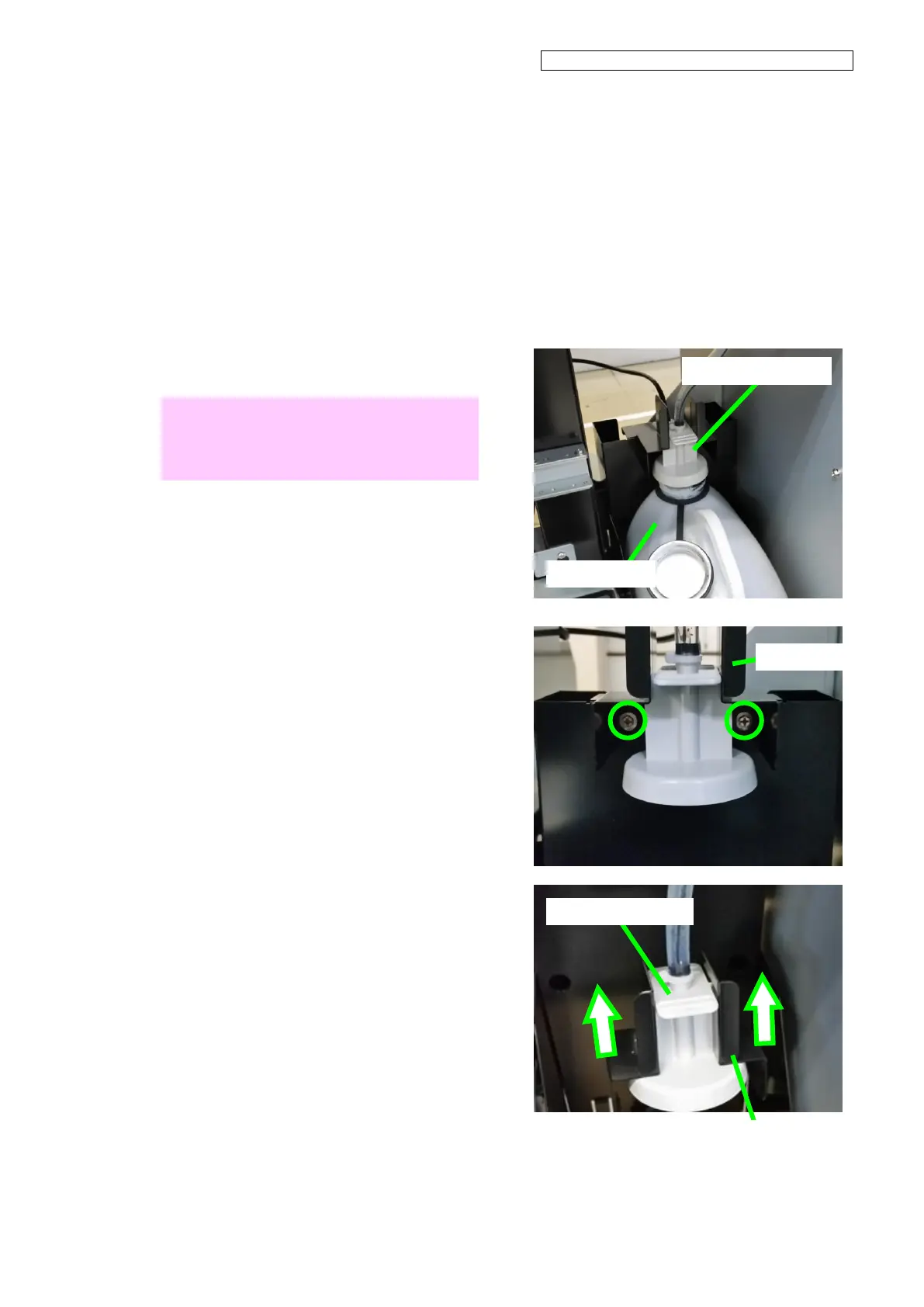

<Removal>
1. Remove the waste ink bottle.
Note
Pay attention when removing the bottle
because ink may spill out of the waste ink
bottle or the COVER(WI-BOTTLE).
2. Remove the two screws securing the
GUIDE(CAP)WI.
3. Slide the GUIDE(CAP)WI to the top, and
remove it from the
COVER(WI-BOTTLE).
Waste ink bottle
COVER(WI-BOTTOLE)
GUIDE(CAP)WI
GUIDE(CAP)WI
COVER(WI-BOTTOLE)
