OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-133
6.15.5 PHOTO-IC-ASSY
One light-emitting sensor module and two light-receiving sensor modules are included in the
TAKE UP SENSOR, MW maintenance parts for the TAKE UP REEL UNIT sensors. If an error
occurs, replace all three modules at the same time. A sticker is stuck on the light-emitting module
to help you recognize it.

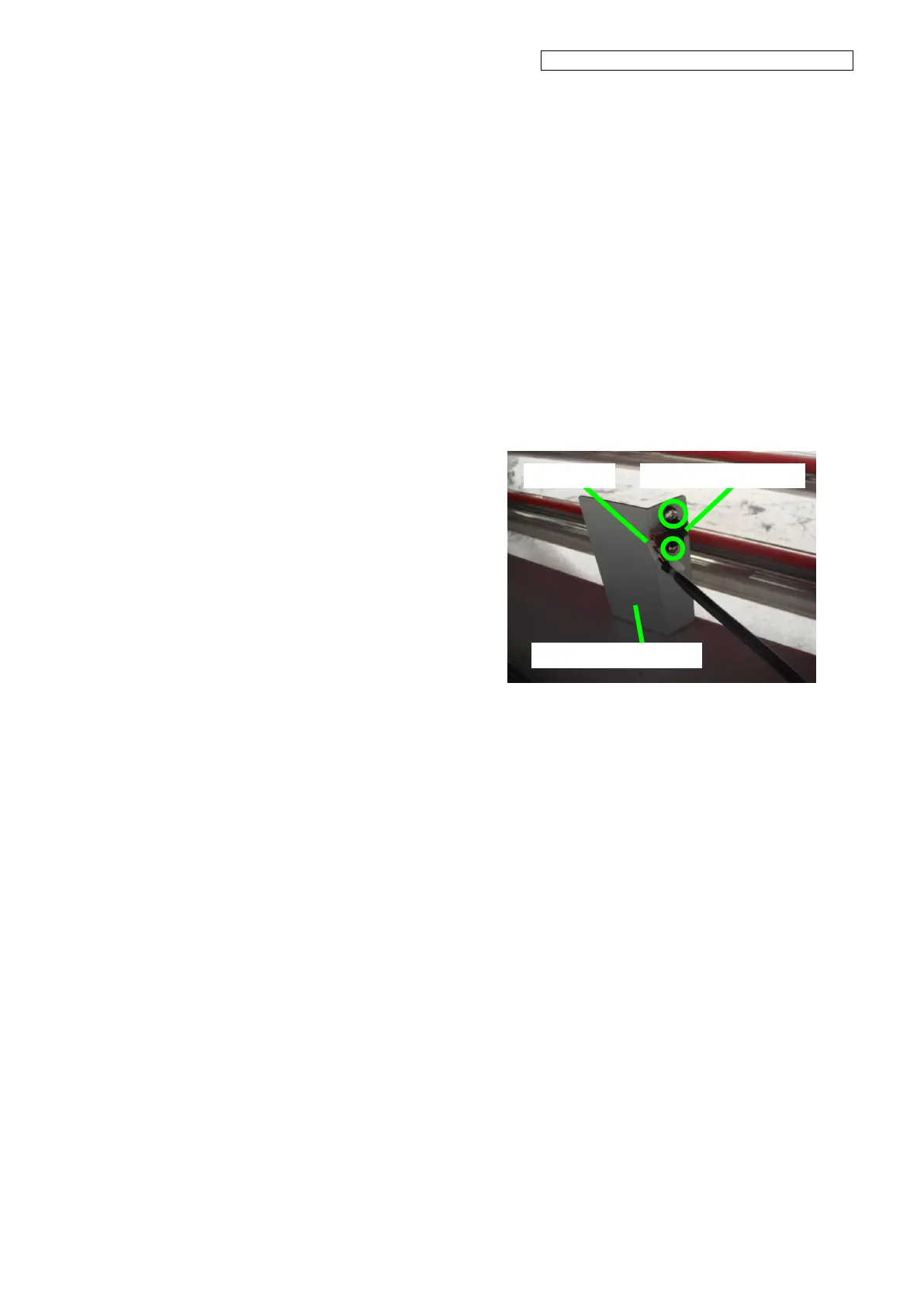

<To remove the PHOTO-IC (light-emitting sensor)>
1. Disconnect the PHOTO-IC (light-emitting
sensor) connector.
2. From the PLATE-IR-EMITTER-MW,
remove the PHOTO-IC (light-emitting
sensor) with two securing screws.
PHOTO-IC (light-emitting)
To Next Page
