Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-5

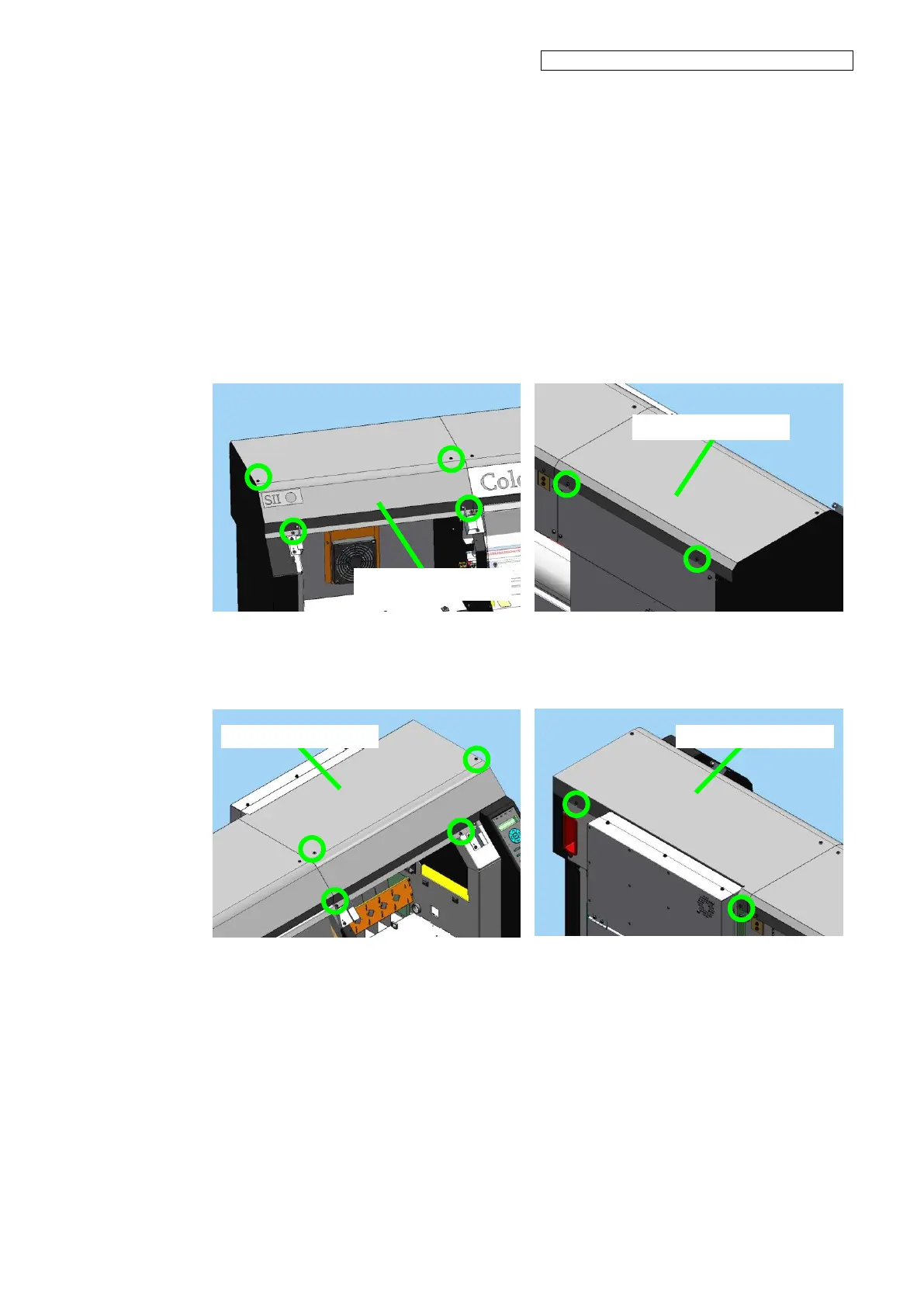

6.3.3 COVER(Y-RAIL)-SL-MW, and COVER(Y-RAIL)-SR-MW
<Removal>
1. Remove the COVER(L)ASSY-MW and
COVER(R)ASSY-MW (see 6.3.2).
2. COVER(Y-RAIL)-SL-MW：
Remove the COVER(Y-RAIL)-SL-MW
with six fixing screws.
COVER(Y-RAIL)-SR-MW：
Remove the COVER(Y-RAIL)-SR-MW
with six fixing screws.
COVER(Y-RAIL)-SL-MW
COVER(Y-RAIL)-SL-MW
COVER(Y-RAIL)-SL-MW
COVER(Y-RAIL)-SR-MW
COVER(Y-RAIL)-SR-MW
