6.16 Disassembling and Reassembling the LCIS-UNIT
6.16.1 SUPPLY PUMP, MW, LCIS
<Removal>
1. Drain the ink (see Chapter 3). After the
ink has been drained, turn the printer off.

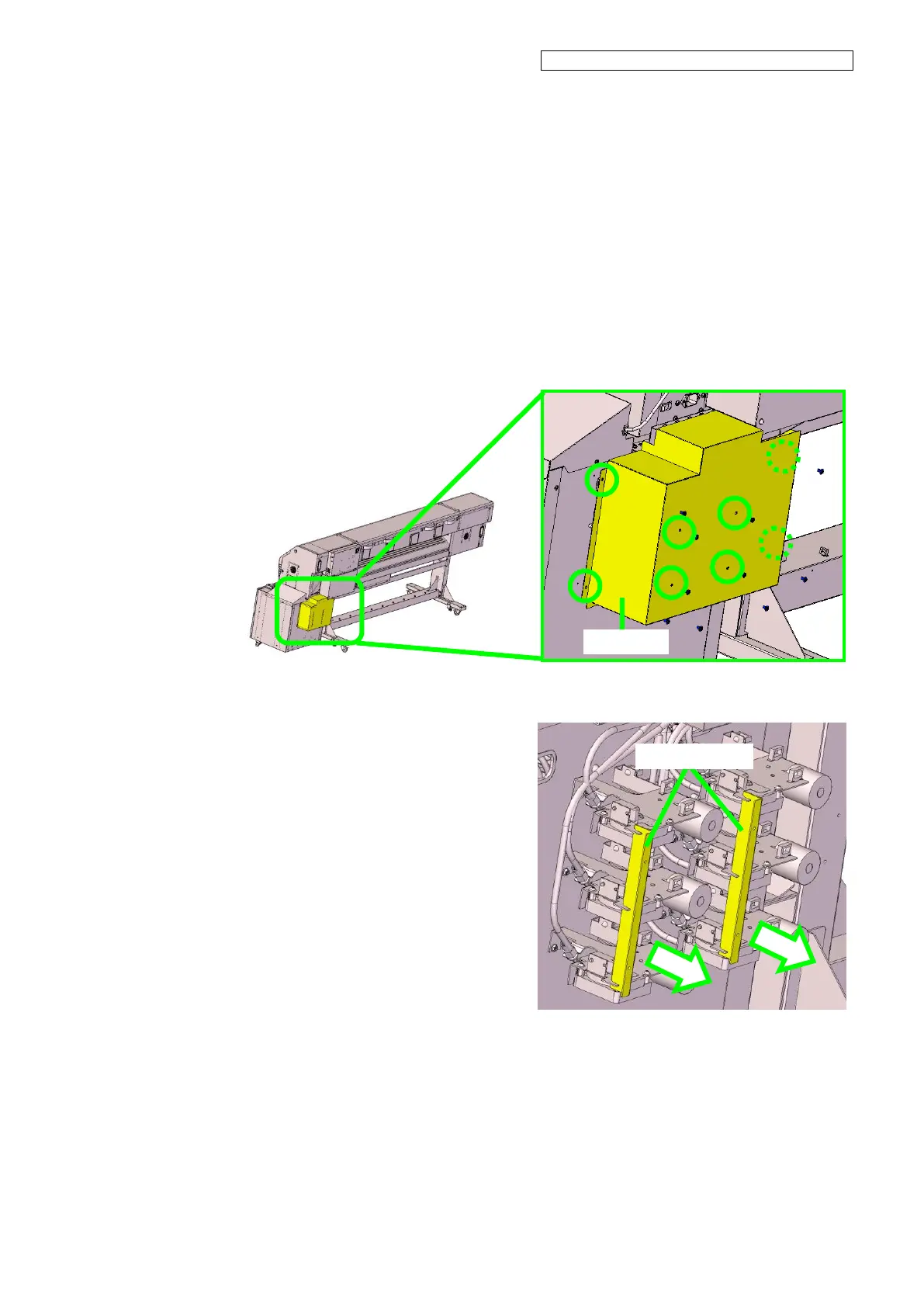

2. Remove the COVER-DRB with eight
screws.
3. Remove the two pump holding plates.
Pump holding plate
COVER-DRB
